Surge Protection for LED Lighting

OVERVIEW

There are more than 300 million streetlights in the world with a majority still using traditional high-pressure sodium lamps. Conversion to LED will significantly reduce the two biggest cost drivers in street lighting, maintenance and energy consumption.

These benefits are achieved by using a combination of components including a lighting control board, LED driver and LED array that are more sensitive than their predecessors to common electrical disruptions such as lightning, switching events and power line disturbances.

It is critical to deploy a surge mitigation strategy that minimizes the risk of exposure, maximizes protection of key system components and removes as much situational uncertainty as possible.

Typical application points include:

the lighting control panel
the lighting pole
inside the lighting fixture

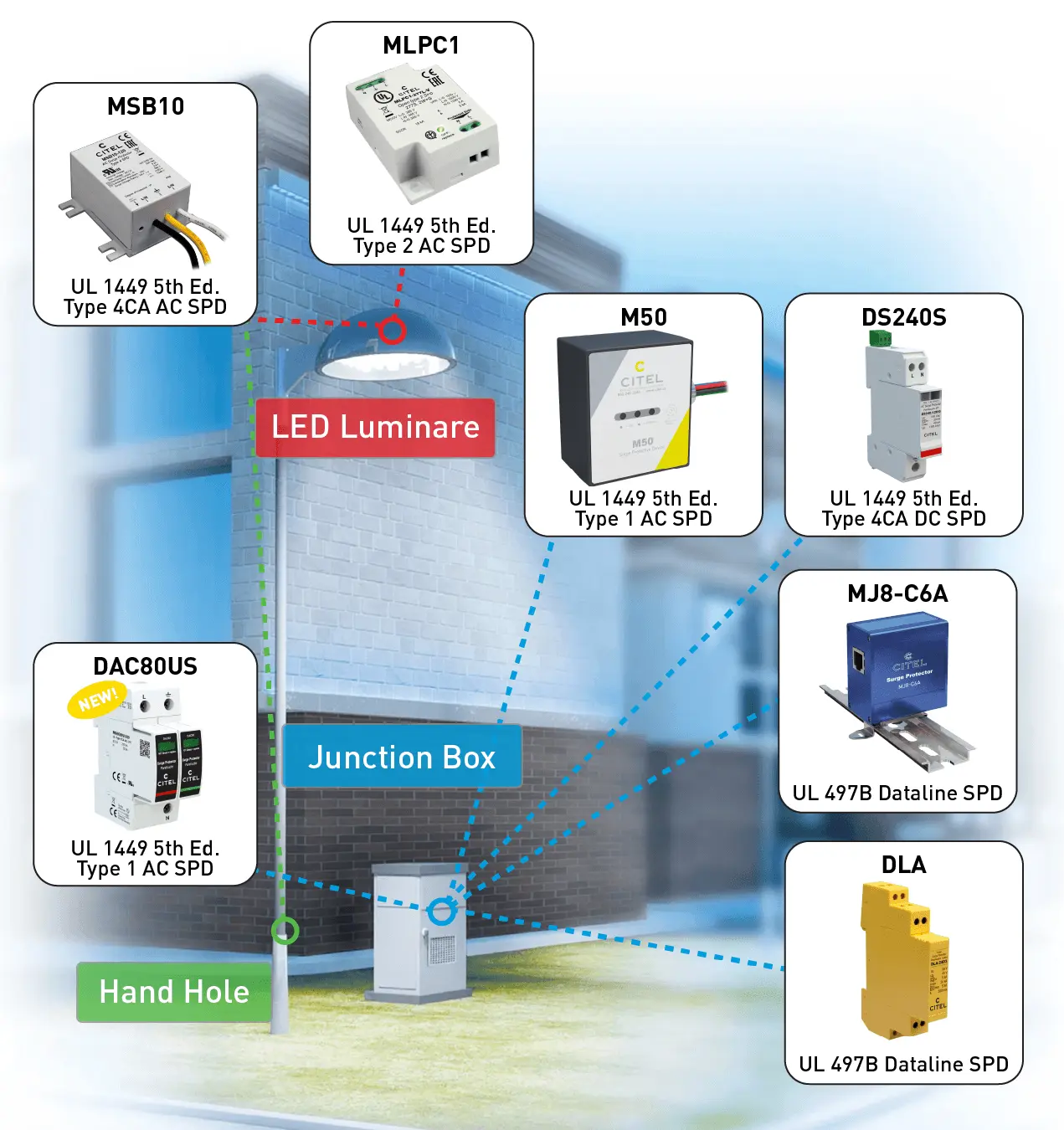

Recommended SPD for Street Lights

Location	System	Surge Protector Model #
Junction Box	120/240 V ac Power Input	M50-240D-A
	24 V dc Power Output	DS220S-24DC
	4-20mA	DLA-24D3
LED Light Pole	120 V ac Power Supply	DAC82US-120S/G
LED Luminare	120/277 V ac Power Input	MSB10-120(UL)

Recommended SPD for Architectural Lighting

Location	System	Surge Protector Model #	Link
Main Panel	120/277 V ac	M50-277Y-A
Lighting Control Panel	120 V ac Power Input	DAC84US-120Y/G
Power Supply	120 V ac Power Input	DAC82US-120S/G
	24 V dc Power Output	DS220S-24DC
Controller	Ethernet Cat 6A	MJ8-C6A
	POE Camera	MJ8-POE-A
	4-20mA	DLA-24D3
	Wireless	P8AX09-6G-N/FF
Light Pole Hand Hole	120-208 V ac Power Input	${ITEM_LINK#2229418}<-No Item, #2229418 MLPXUVG-277S	${ITEM_LINK#2229418}<-No Item, #2229418
Luminaire	120-277 V ac Power Input	${ITEM_LINK#2229418}<-No Item, #2229418 MLPXUVG-277S	${ITEM_LINK#2229418}<-No Item, #2229418
