UL TYPE 4CA - Imax 18kA - In 3kA
Part Number: 561601
MSB10-120(UL)
- MOV Technology
- Imax 18kA
- In 3kA
- LED Indicator
- IP67
- ANSI/IEEE C136.2 Extreme 20kV/10kA
- ANSI/IEEE C62.41 20kV/10kA
- UL Type 4CA
- 10-year warranty
Certificates
Datasheet
|
Network
|
120/208 V |
|
|
Nominal line voltage
|
Un | 120 Vac |
|
Max. AC operating voltage
|
Uc | 150 Vac |
|
Max. discharge current
max. withstand @ 8/20 µs by pole
|
Imax | 10 kA |
|
Protection mode(s)
|
Common/Differential mode |
|
|
Protection level L/N
@ In (8/20µs)
|
Up L/N | 1 kV |
|
POWER SPD TYPE
|
UL1449 5th Ed. TYPE 4CA |
|
|
VOLTS
|
(V) | 277 |
|
AC/DC/DC PV/RF
|
AC |
|
|
PHASE
|
(PH) | 1 |
|
AMPS
|
(A) | N/A |
|
AMBIENT MIN
|
(C) | -35 |
|
AMBIENT MAX
|
(C) | +85 |
|
MODES
|
L-L, L-G, L-N |
|
|
MLV
|
(V) | 780/1340/1330/- |
|
MCOV
|
(V) | 300/300/300 |
|
IN
15 impulses 8/20µs
|
(kA) | 3 |
|
SCCR
|
(kA) | n/a |
|
IMAX
8/20µs
|
(kA) | 18 |
|
Technology
|
MOV+GDT |
|
|
Connection to Network
|
Wires |
|
|
Mounting
|
Wall or plate |
|
|
Operating temperature
|
Tu | -40/+85°C |
|
Protection rating
|
IP65 |
|
|
Failsafe mode
|
Disconnection from AC network |
|
|
TECHNOLOGY
|
Thermal-MOV |
|
|
NETWORK CONFIGURATION
|
1PH, 2W+G, Single Phase (or 2PH, 2W+G, Two Phase) |
|
|
CONNECTION METHOD
|
18" #14 AWG LEADS |
|
|
MOUNTING
|
FLANGE MOUNT |
|
|
MATERIAL
|
Thermoplastic UL94-V0 |
|
|
NEMA RATING (IP RATING)
|
NEMA 6P (IP67) |
|
|
FAIL-SAFE BEHAVIOR
|
Disconnection via fuse-link |
|
|
REAL-TIME DIAGNOSTICS
|
LED Indicator |
|
|
DIMENSIONS
|
See diagram |
|
|
WEIGHT
|
0.30 lbs |
|
|
SPARE PART
|
n/a |
|

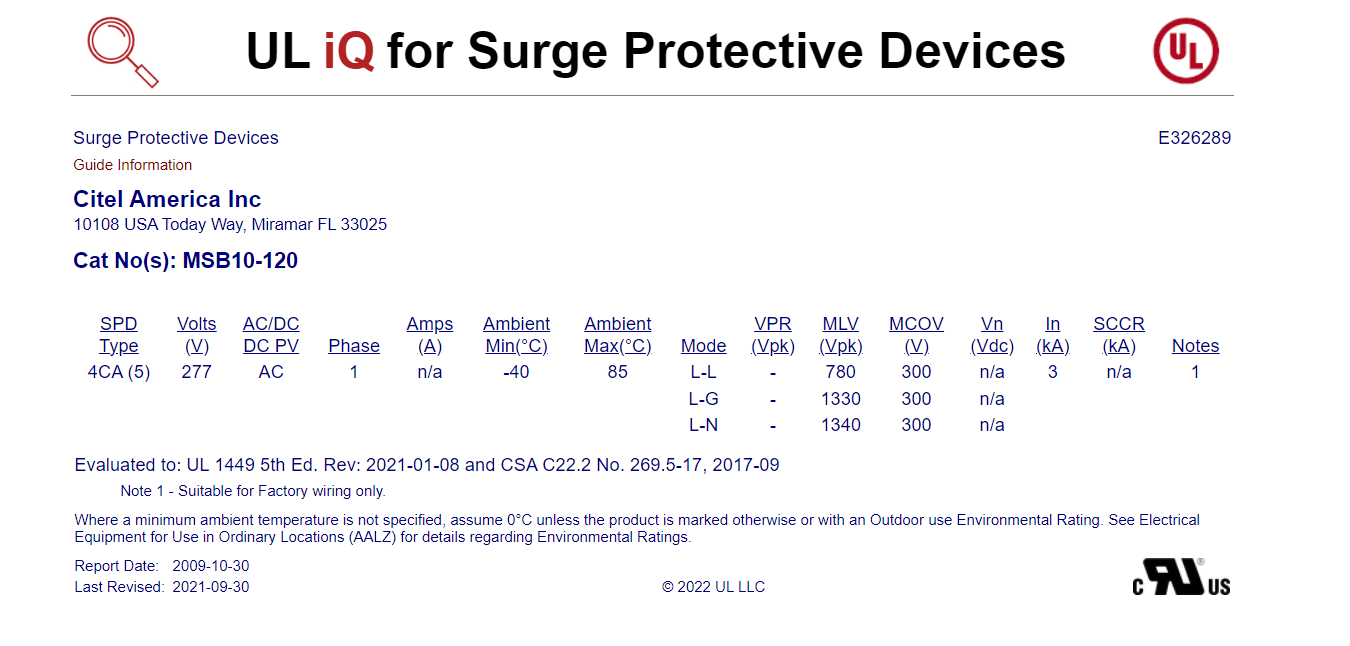

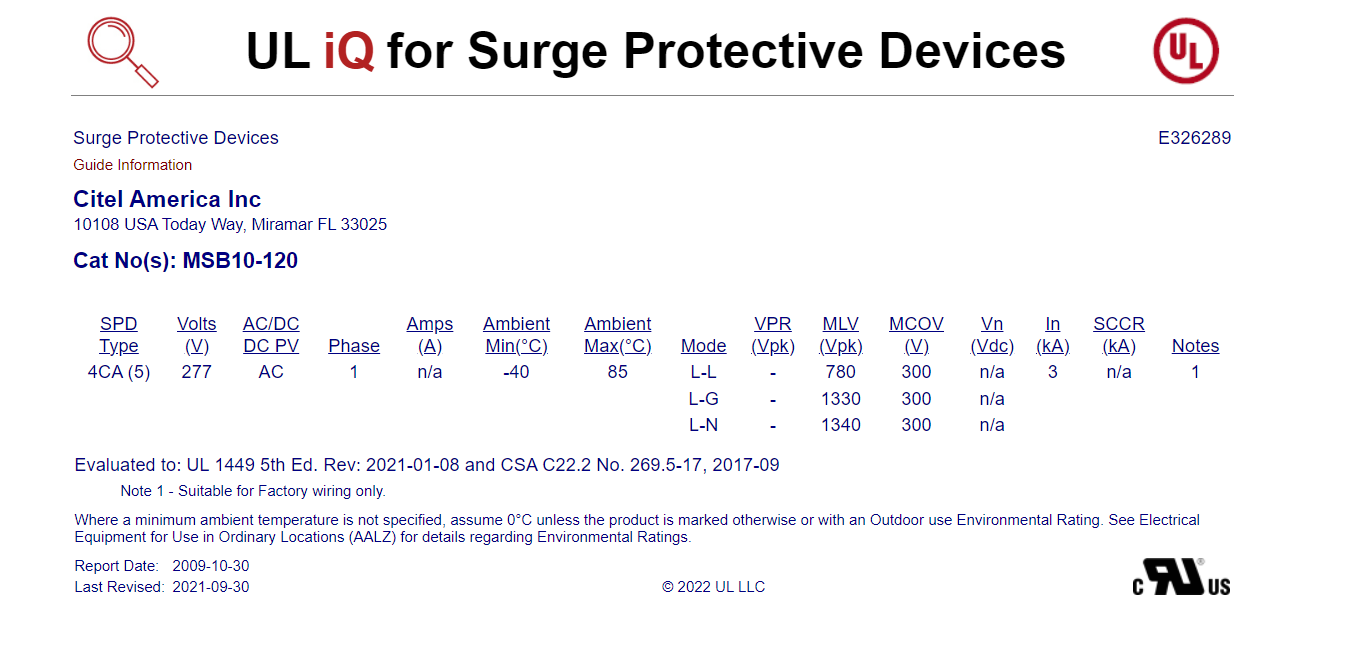

Certification
|
UL |
|
|
Environmental standards
|
EU RoHS |
|
|
UL STANDARD
|
UL1449 5th Edition |
|
|
UL CATEGORY
|
VZCA2, VZCA8 |
|
|
UL FILE NUMBER
|
E326289 |
|
|
STANDARDS
|
NOM-003-SCFI-2014, NOM-001-SCFI-1993 |
|
|
ANSI/IEEE C62.41
|
Category C 20kV/10kA |
