DIN RAIL DC
DS220S-24DC
DIN RAIL DC
DS220S-24DC
Part Number:
390511
Availability:
$102.00 (excl. tax)
Add to cart
Shipping is only available to the USA.
OK
Available within 3 weeks
DC power surge protector
- 24Vdc
- Imax:20kA
- Pluggable module
- Remote signaling
-Very low Up protection level
Datasheet
Installation Sheet
Tender specifications
Contact Us
Select another reference:
DS220S-12DC
DS220S-24DC
DS220S-48DC
Electrical Properties
Mechanical Properties
Norms
Schemas
Max. DC operating voltage
Uc
38 Vdc
Total Maximum discharge current
max. total withstand @ 8/20 µs
Imax Total
20 kA
Protection mode(s)
Common mode
POWER SPD TYPE
UL1449 5th Ed. TYPE 4CA
VOLTS
(V)
24
AC/DC/DC PV/RF
DC
PHASE
(PH)
-
AMPS
(A)
N/A
AMBIENT MIN
(C)
-40
AMBIENT MAX
(C)
+85
MODES
DC+-DC-,DC+-G,DC--G
MLV DC
(V)
580/560/490
MCOV
(V)
38/38/38
IN
15 impulses 8/20µs
(kA)
10
SCCR
(kA)
n/a
IMAX
8/20µs
(kA)
20
Connection to Network
By screw terminals: 1.5-10mm² (actives wires) and 2.5-25mm² (ground)
Outdoor application
No
TECHNOLOGY
MOV
NETWORK CONFIGURATION
2W+G
CONNECTION METHOD
SPD-Screw Terminal (8-12AWG), Terminal blocks 6AWG
MOUNTING
DIN RAIL
MATERIAL
Thermoplastic UL94-V0
NEMA RATING (IP RATING)
NEMA 2 (IP20)
FAIL-SAFE BEHAVIOR
Disconnection via fuse-link
REAL-TIME DIAGNOSTICS
Visual indicator and remote contacts
DIMENSIONS
See diagram
WEIGHT
0.30 lbs
SPARE PART
DSM220-24DC

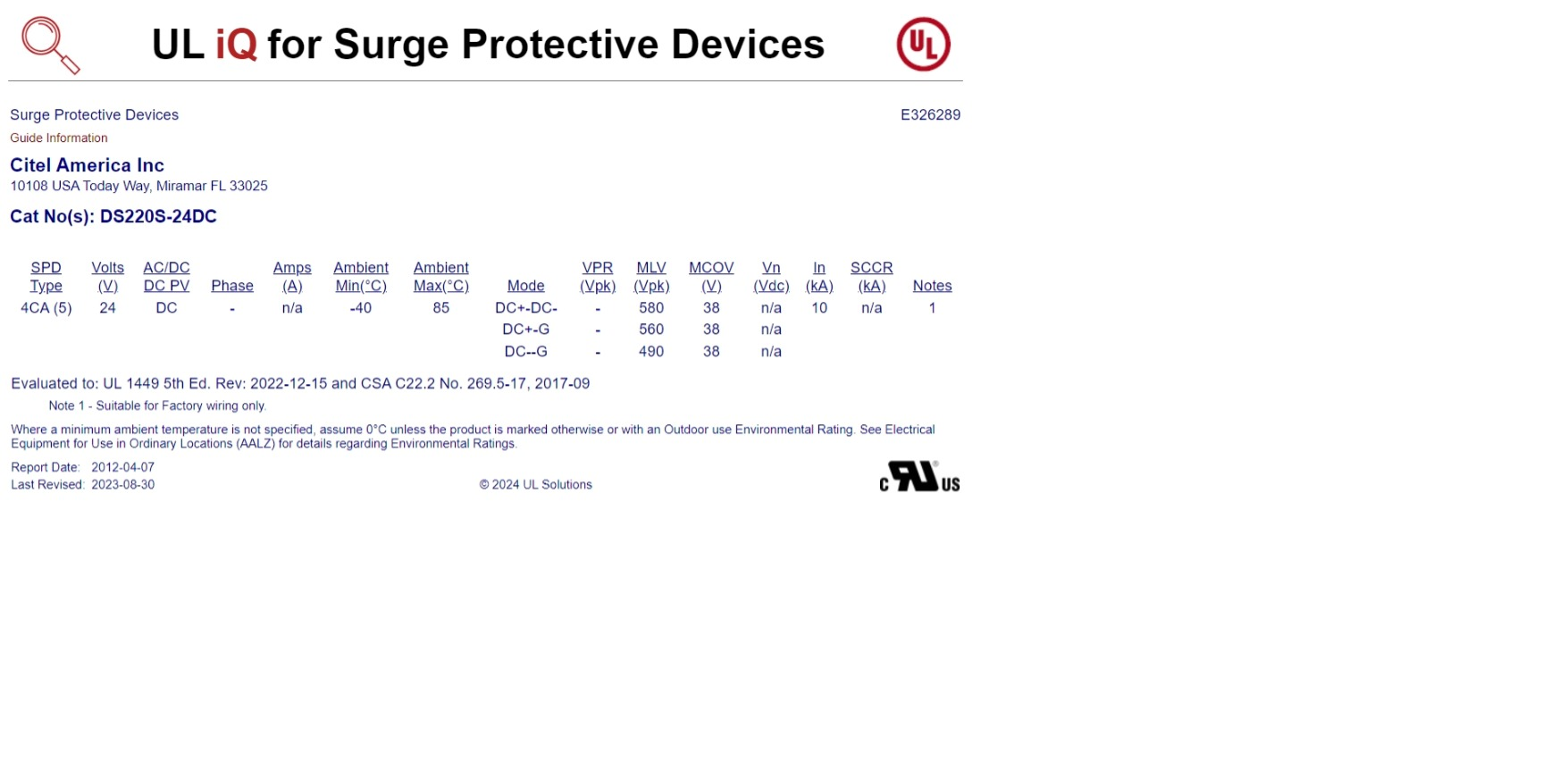

Certification
UL Recognized
UL STANDARD
UL1449 5th Edition
UL CATEGORY
VZCA2, VZCA8
UL FILE NUMBER
E326289
STANDARDS
IEC 61643-11, NOM-003-SCFI-2014, NOM-001-SCFI-1993
ENVIRONMENTAL STANDARDS
ROHS
×
Certification:
UL Recognized
Max. DC operating voltage:
38 Vdc
Total Maximum discharge current :
20 kA
CITEL
Reference:
DS220S-24DC
Part Number: :
390511
Or equivalent
