AC POWER
DIN RAIL AC
DS74US-480D
UL TYPE 1 SPD - Imax 75kA - In 20/30kA - Modular Assembly
DS74US-480D
Part Number:
32171455
Availability:
$384.00 (excl. tax)
Add to cart
Shipping is only available to the USA.
OK
Available within 3 weeks
Multi-MOV Technology
UL1449 Type 1 LISTED
75kA Surge Current Rating per module
Visual fault indicator and remote contacts
Replaceable Modules
10-Year warranty
Datasheet
DS74US-480D_UL Certification.pdf
ULCertificate_DS74US-480D.pdf
Installation Sheet
Tender specifications
Contact Us
Select another reference:
DS71US-210
DS71US-210-Ex
DS71US-275
DS71US-275-Ex
DS71US-420
DS71US-420-Ex
DS71US-460
DS71US-460-Ex
DS72US-120S
DS72US-120T/NN
DS72US-230S
DS72US-240T/NN
DS73US-120T
DS73US-120Y/NN
DS73US-277Y/NN
DS74US-120Y
DS74US-230Y
DS74US-240D
DS74US-240Y
DS74US-277Y
DS74US-347Y
DS74US-480D
DS74US-600D
DS75US-400Y
Electrical Properties
Mechanical Properties
Norms
Schemas
POWER SPD TYPE
UL1449 TYPE 1 LISTED
VOLTS
(V)
480
AC/DC/DC PV/RF
AC
PHASE
(PH)
3D
AMPS
(A)
N/A
AMBIENT MIN
(C)
-40
AMBIENT MAX
(C)
+85
MODES
L-L, L-G
VPR
(V)
1500/-/1500/-
MCOV
(V)
550/-/550/-
IN
15 impulses 8/20µs
(kA)
20
SCCR
(kA)
200
IMAX
8/20µs
(kA)
75
RELATIVE HUMIDITY
(%)
95%
TECHNOLOGY
Multi-MOV
NETWORK CONFIGURATION
3PH, 3W+G, Delta
CONNECTION METHOD
Screw Terminal, 13-2AWG Solid Wire, 13-4AWG Stranded Wire
MOUNTING
Din Rail
MATERIAL
Thermoplastic UL94-V0
NEMA RATING (IP RATING)
NEMA 2 (IP20)
FAIL-SAFE BEHAVIOR
Yes, no upstream over current protection required
REAL-TIME DIAGNOSTICS
Visual indicator and remote contacts

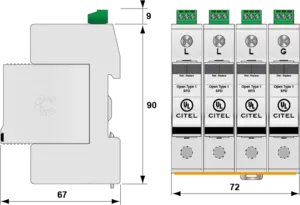

DIMENSIONS
See diagram
WEIGHT
1.12 lbs
UL STANDARD
UL1449 5th Edition
UL CATEGORY
VZCA, VZCA7
UL FILE NUMBER
E326289
STANDARDS
NOM-003-SCFI-2014, NOM-001-SCFI-1993
ENVIRONMENTAL STANDARDS
ROHS
×
CITEL
Reference:
DS74US-480D
Part Number: :
32171455
Or equivalent
