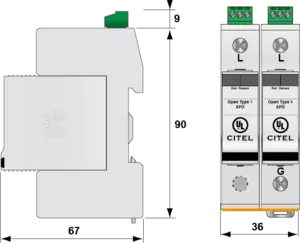

UL TYPE 1 SPD - Imax 75kA - In 20/30kA - Modular Assembly

DS72US-120T/NN
Part Number 32275225
DS72US-120T/NN
Availability:
$198.00 (excl. tax)
Add to cart

Available within 3 weeks

  • Multi-MOV Technology
  • UL1449 Type 1 LISTED
  • 75kA Surge Current Rating per module
  • Visual fault indicator and remote contacts
  • Replaceable Modules
  • 10-Year warranty
Contact Us
POWER SPD TYPE

UL1449 TYPE 1 LISTED
VOLTS
 (V)

240/120
AC/DC/DC PV/RF

AC
PHASE
 (PH)

1S
AMPS
 (A)

N/A
AMBIENT MIN
 (C)

-40
AMBIENT MAX
 (C)

+85
MODES

L-L, L-G
VPR
 (V)

1200/-/800/-
MCOV
 (V)

420/-/210/-
IN
15 impulses 8/20µs
 (kA)

20
SCCR
 (kA)

200
IMAX
8/20µs
 (kA)

75
RELATIVE HUMIDITY
 (%)

95%
TECHNOLOGY

Multi-MOV
NETWORK CONFIGURATION

2PH, 2W+G, Split Phase
CONNECTION METHOD

Screw Terminal, 13-2AWG Solid Wire, 13-4AWG Stranded Wire
MOUNTING

Din Rail
MATERIAL

Thermoplastic UL94-V0
NEMA RATING (IP RATING)

NEMA 2 (IP20)
FAIL-SAFE BEHAVIOR

Yes, no upstream over current protection required
REAL-TIME DIAGNOSTICS

Visual indicator and remote contacts
DIMENSIONS

See diagram
WEIGHT

0.60 lbs
UL STANDARD

UL1449 5th Edition
UL CATEGORY

VZCA, VZCA7
UL FILE NUMBER

E326289
STANDARDS

NOM-003-SCFI-2014, NOM-001-SCFI-1993
ENVIRONMENTAL STANDARDS

ROHS
