UL TYPE 1 SPD - Imax 75kA - In 20/30kA - Modular Assembly

DS74US-240D
Part Number: 321614552
DS74US-240D
Availability:
$384.00 (excl. tax)

Available within 3 weeks

  • Multi-MOV Technology
  • UL1449 Type 1 LISTED
  • 75kA Surge Current Rating per module
  • Visual fault indicator and remote contacts
  • Replaceable Modules
  • 10-Year warranty



POWER SPD TYPE
UL1449 TYPE 1 LISTED
VOLTS
(V) 240
AC/DC/DC PV/RF
AC
PHASE
(PH) 3D
AMPS
(A) N/A
AMBIENT MIN
(C) -40
AMBIENT MAX
(C) +85
MODES
L-L, L-G
VPR
(V) 1000/-/1000/-
MCOV
(V) 300/-/300/-
IN
15 impulses 8/20µs
(kA) 20
SCCR
(kA) 200
IMAX
8/20µs
(kA) 75
RELATIVE HUMIDITY
(%) 95%
TECHNOLOGY
Multi-MOV
NETWORK CONFIGURATION
3PH, 3W+G, Delta
CONNECTION METHOD
Screw Terminal, 13-2AWG Solid Wire, 13-4AWG Stranded Wire
MOUNTING
Din Rail
MATERIAL
Thermoplastic UL94-V0
NEMA RATING (IP RATING)
NEMA 2 (IP20)
FAIL-SAFE BEHAVIOR
Yes, no upstream over current protection required
REAL-TIME DIAGNOSTICS
Visual indicator and remote contacts

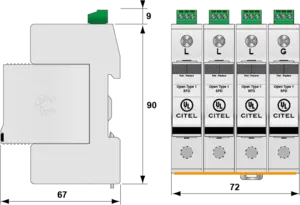

DIMENSIONS
See diagram
WEIGHT
1.07 lbs
UL STANDARD
UL1449 5th Edition
UL CATEGORY
VZCA, VZCA7
UL FILE NUMBER
E326289
STANDARDS
NOM-003-SCFI-2014, NOM-001-SCFI-1993
ENVIRONMENTAL STANDARDS
ROHS
