- UL497E LISTED - Imax 20kA (10kA UL) - In 10kA (10kA UL) - Bi-directional - Replaceable Gas Tube
Part Number: 68001
P8AX09-6G-N/MF
- Gas Discharge Tube Technology, DC Pass
- Frequency Range 0-6 GHz
- Imax 20kA, 10kA (UL), In 10kA
- IP67 Outdoor Rated
- SMA Type Connector
- Bi-Directional
- Replaceable Gas Tube
Certificates
Datasheet
|
Max. DC operating voltage
|
Uc | 120 Vdc |
|
Frequency range
|
f | DC-6 GHz |
|
Insertion loss
|
< 0.2 dB |
|
|
Return loss
|
> 19 dB |
|
|
Impedance
|
50 ohms |
|
|
VSWR
|
<1.25:1 |
|
|
Max. load current @25°C
|
IL | 10 A |
|
Max. discharge current
max. withstand @ 8/20 µs by pole
|
Imax | 15 kA |
|
Nominal discharge current
C2 Category
|
In | 5 kA |
|
Protection mode(s)
|
Common mode |
|
|
Impulse current
2 x 10/350µs Test - D1 Category
|
Iimp | 1 kA |
|
Max Power
|
25 W |
|
|
Typical let through energy
(50 ohms) input 4kV 1.2/50μs - 2kA 8/20μs
|
2.2 mJ |
|
|
DC Pass
|
Yes |
|
|
Insulation resistance
|
IR | ≥10 GOhms |
|
Impedance
|
Ω | 50 |
|
RF Power
Maximum
|
W | 25 W |
|
Return Loss
Minimum
|
db |
|
|
VSWR
Maximum
|
:1 | <1.25 |
|
Max Total Discharge Current
Imax (8/20µs x 1)
|
kA | 10 kA |
|
Max Discharge Current
Imax (8/20µs x 1)
|
kA | 10 kA |
|
DC Pass
|
Yes |
|
|
RF SPD TYPE
|
UL497E LISTED |
|
|
VOLTS
|
(V) | 48 |
|
AC/DC/DC PV/RF
|
RF |
|
|
WIRES
|
1W+GROUND |
|
|
LINE CURRENT MAX
|
(A) | 10 |
|
POWER RATING
|
(W) | 25 |
|
AMBIENT MIN
|
(C) | -40 |
|
AMBIENT MAX
|
(C) | +85 |
|
RESIDUAL VOLTAGE
|
(V) | 700 |
|
IMAX
8/20µs
|
(kA) | 20 |
|
FREQUENCY RANGE
|
(GHz) | 0-6.9 |
|
INSERTION LOSS (@ FREQ)
|
(db) | <0.2 |
|
RETURN LOSS
|
(db) |
|
|
VSWR
|
<1.25:1 |
|
|
IMPEDANCE
|
Ω | 50 |
|
Technology
|
Gas discharge tube |
|
|
Connection to Network
|
Connector N Male/Female |
|
|
Mounting
|
Feedthrough |
|
|
Operating temperature
|
Tu | -40/+85°C |
|
Protection rating
|
IP65 |
|
|
Outdoor application
|
Yes |
|
|
Failsafe mode
|
Short-circuit |
|
|
Contacts
|
Bronze/Surface Au-Ag |
|
|
Insulation material
|
PTFE |
|
|
TECHNOLOGY
|
GDT |
|
|
CONNECTION METHOD
|
SERIES CONNECTOR, BI-DIRECTIONAL |
|
|
CONNECTOR TYPE
|
N |
|
|
GENDER
|
MALE TO FEMALE |
|
|
MOUNTING
|
BULKHEAD, OPTIONAL BRACKET |
|
|
MATERIAL
|
Cu, Zn, Sn plated Brass, PTFE |
|
|
NEMA RATING (IP RATING)
|
NEMA 6P (IP67) |
|
|

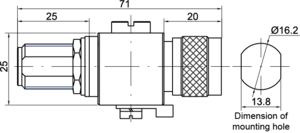

DIMENSIONS
|
See diagram |
|
|
WEIGHT
|
0.30 lbs |
|
|
SPARE PART
|
BA HF 90/20 |
|
Environmental standards
|
EU RoHS |
|
|
RohS compliance
|
Yes |
|
|
UL STANDARD
|
UL497E |
|
|
UL CATEGORY
|
QVLA |
|
|
UL FILE NUMBER
|
E349646 |
|
|
STANDARDS
|
NOM-003-SCFI-2014, NOM-001-SCFI-1993 |
|
Operating Temperature
Min
|
°C | -45 °C |
|
Operating Temperature
Max
|
°C | 85 °C |
|
Operating Temperature
Min
|
°F | -50 °F |
|
Operating Temperature
Max
|
°F | 85 °F |
|
Operating Relative Humidity
Max
|
%RH | Can be submerged |
|
Operating Altitude
Min
|
Ft | 2000 Ft |
|
Operating Altitude
Max
|
Ft | 6500 Ft |
|
Housing/Enclosure material
|
Cu, Zn, Sn plated Brass |
|
|
Mounting
|
Bracket or throught hole |
|
|
IP Environmental rating
IP
|
IP65 |
|
|
NEMA Environmental rating
NEMA
|
NEMA 4 |
|
|
Installation Location
|
Indoor / outdoor |
|
|
Spare part
|
BA HF 90/20 |
|
|
Accessories
|
BK |
|
|
Product Dimension
L
|
mm | 71 mm |
|
Product Dimension
H
|
mm | 25 mm |
|
Product Dimension
W
|
mm | 13.8 mm |
|
Product Dimension
L
|
In | 2.8 In |
|
Product Dimension
H
|
In | 0.98 In |
|
Product Dimension
W
|
In | 0.54 In |
|
Individual Pack
|
No |
|
|
Storage Temperature
Min
|
°C | -40 °C |
|
Storage Temperature
Max
|
°C | 85 °C |
|
Storage Temperature
Min
|
°F | -40 °F |
|
Storage Temperature
Max
|
°F | 85 °F |
|
Individual Pack
|
No |
|
|
Storage Temperature
Min
|
°C | -40 °C |
|
Storage Temperature
Max
|
°C | 85 °C |
|
Storage Temperature
Min
|
°F | -40 °F |
|
Storage Temperature
Max
|
°F | 85 °F |
