NEC Article 620.51 NEC 2023

Surge Protection for elevators, dumbwaiters, escalators, moving walks, platform lifts and stairway chairlifts

elevator-three-lifts

OVERVIEW

Today's increased reliance on very sensitive electronics makes surge protection an important topic for Elevators, Dumbwaiters, Escalators, Moving Walks, Platforms Lifts and Stairway Chair Lifts. The Insurance Institute for Business & Home Safety study found that $26 billion dollars was lost due to non-lightning power surges. In addition, there are about 25 million lightning strikes in the US each year that cause between $650M to $1B in losses according to the Insurance Information Institute, State Farm©.

NFPA 70, Article 620.51
620.51 (E) Surge Protection. (Elevators) "Where any of the disconnecting means in 620.51 has been designated as supplying an emergency system load, a legally required system load, or a critical operation power system load, a listed SPD shall be installed."


Elevator Control System

This page discusses how to best protect your Elevator System and all the associates components like Electrical Panelboard, Elevator Controls, Motors, Variable Frequency Drive (VFD), Safety Interlocks, Charge Controllers, Fire Curtains and other sensitive electronics.

The SPD Solution

Surge protection is a cost-effective solution to prevent downtime, improve system and data reliability and elimination of equipment damage due to transients and surges for both power and signal lines. It is suitable for any facility or load (1000 volts and below).

Selecting the appropriate SPD for your Elevator

NEC/NFPA 70 require that Surge Protective Devices (SPDs) be UL Listed. This means selecting a surge protector is easier than it has ever been. There are only a few choices available for SPD’s that are UL Listed for any of the most commonly used surge standards including UL1449 4th Edition, UL497B, and UL497E.

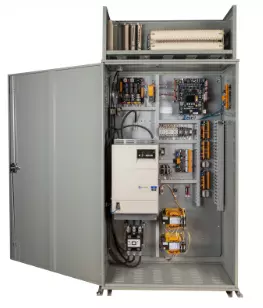

Main Service Panel | Elevator Control Panel

Recommended Surge Protectors for the Main Service Panel

Location	Equipment	System	Surge Protector Model#	Link
	Main Panelboard	480Vac	MDS750E-480D

Recommended Surge Protectors for the Elevator Control Panel

Equipment	System	Surge Protector Model#
Control Panel	480Vac Power Input	DS74US-480D
	P/S 208-240Vac Power Input	DS72US-240T/NN
	P/S 24Vdc Power Output	DS220S-24DC
	Ethernet Cat 6A	MJ8-C6A
	RS485	DLAS-12D3
