AC POWER
DIN RAIL AC
DS44S-320/G
DIN RAIL AC
DS44S-320/G
Part Number:
3916
Datasheet
Certif_CITEL_UL_DS44S 320:G.pdf
Installation Sheet
Tender specifications
Contact Us
Select another reference:
DS41S-120
DS41S-280
DS41S-480
DS41S-690
DS42S-120
DS42S-120/G
DS42S-230
DS42S-230/G
DS43S-230
DS43S-400
DS43S-480
DS44US-480D
DS44US-600D
Electrical Properties
Mechanical Properties
Norms
Schemas
POWER SPD TYPE
UL1449 5th Ed. TYPE 4CA
AC/DC/DC PV/RF
AC
AMPS
(A)
N/A
AMBIENT MIN
(C)
-35
AMBIENT MAX
(C)
+60
IN
15 impulses 8/20µs
(kA)
20
SCCR
(kA)
n/a
IMAX
8/20µs
(kA)
40
Iimp
10/350µs
(kA)
4
CONNECTION METHOD
SPD-Screw Terminal (8-12AWG), Terminal blocks 6AWG
MOUNTING
Din Rail
MATERIAL
Thermoplastic UL94-V0
NEMA RATING (IP RATING)
NEMA 2 (IP20)
FAIL-SAFE BEHAVIOR
Disconnection via fuse-link
REAL-TIME DIAGNOSTICS
Visual indicator and remote contacts

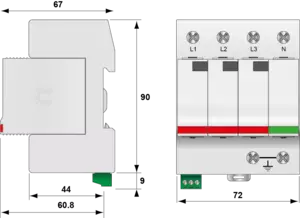

DIMENSIONS
See diagram
Certification
CSA / UL Listed
UL STANDARD
UL1449 5th Edition
UL CATEGORY
VZCA2, VZCA8
UL FILE NUMBER
E326289
STANDARDS
NOM-003-SCFI-2014, NOM-001-SCFI-1993
ENVIRONMENTAL STANDARDS
ROHS
×
Certification:
CSA / UL Listed
CITEL
Reference:
DS44S-320/G
Part Number: :
3916
Or equivalent
