#Surge Protection for Commercial Inclined Platform Lifts
NFPA Article 620.51 (E) Surge Protection NEC 2023
OVERVIEW

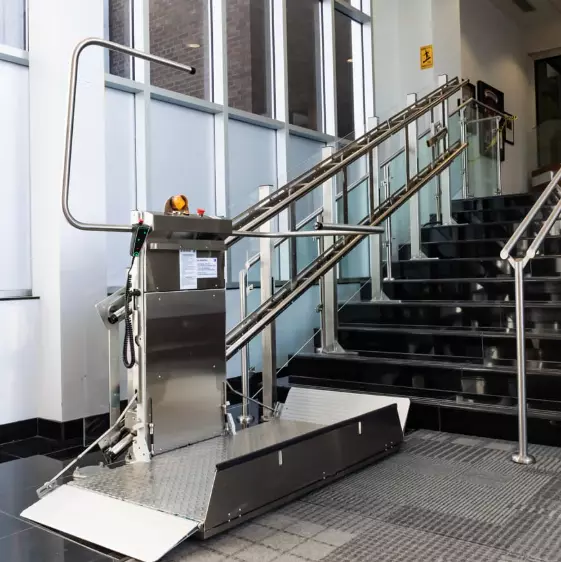

Commercial inclined platform lifts are beneficial for making buildings accessible to people with mobility issues, especially in situations where elevators or vertical platform lifts are impractical or cost-prohibitive, by providing a smooth and safe way to navigate stairs.
Today's increased reliance on very sensitive electronics makes surge protection an important topic for inclined platform lifts. The Insurance Institute for Business & Home Safety study found that $26 billion dollars was lost due to non-lightning power surges. In addition, there are about 25 million lightning strikes in the US each year that cause between $650M to $1B in losses according to the Insurance Information Institute, State Farm©.
| NFPA 70, Article 620.51 |
| "620.51 (E) Surge Protection. "Where any of the disconnecting means in 620.51 has been designated as supplying an emergency system load, a legally required system load, or a critical operation power system load, a listed SPD shall be installed." |
|
|

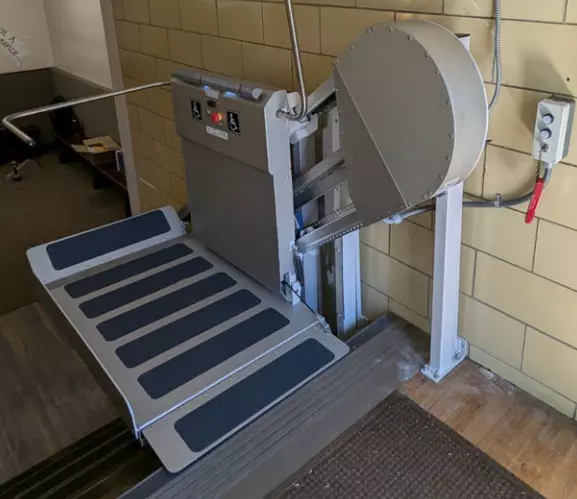

| Commercial Lift Platform System |
This page discusses how to best protect your Inclined Platform Lift system and all the associated components like Electrical Panelboard, lift Controls, Motors, Variable Frequency Drive (VFD), Safety Interlocks, Charge Controllers, and other sensitive electronics.
The SPD Solution
Surge protection is a cost-effective solution to prevent downtime, improve system and data reliability and elimination of equipment damage due to transients and surges for both power and signal lines. It is suitable for any facility or load (1000 volts and below).
Selecting the appropriate SPD for your Commercial Inclined Platform Lifts
NEC/NFPA 70 require that Surge Protective Devices (SPDs) be UL Listed. This means selecting a surge protector is easier than it has ever been. There are only a few choices available for SPD’s that are UL Listed for any of the most commonly used surge standards including UL1449 4th Edition, UL497B, and UL497E.
Recommended Surge Protectors for the Main Service Panel
| Location | Equipment | System | Surge Protector Model# | Link |
|---|---|---|---|---|
|
| Main Panelboard | 120/208Vac 3-Ph, 4W+G Wye | MDS750E-120Y |
|
Recommended Surge Protectors for the Inclined Lift Control Panel
| Location | Equipment | System | Surge Protector Model# | Link |
|---|---|---|---|---|
|
| Drive Cabinet | 208-240Vac Power Input | DS72US-240T/NN |
|
| P/S 24Vdc Power Output | DS220S-24DC |
|
Contact us to develop a surge mitigation solution for your application Where to purchase Citel SPD's
References
| # | Title |
|---|---|
| 1 | NFPA 70 edition 2023, Article 620.51 Elevators, Dumbwaiters, Escalators, Moving Walks, Platform Lifts and Stairway Chairlifts |
| 2 | NFPA 70 edition 2020, Article 620.51 Elevators, Dumbwaiters, Escalators, Moving Walks, Platform Lifts and Stairway Chairlifts |
| 3 | NFPA 70 edition 2017, Article 620.51 Elevators, Dumbwaiters, Escalators, Moving Walks, Platform Lifts and Stairway Chairlifts |
| 4 | NFPA 70 edition 2014, “Data Assessment for Electrical Surge Protective Devices” |
| 5 | NFPA 70 edition 2014, Article 700.8 |
| "A listed SPD (surge protection device) shall be installed in or on all emergency systems switchboards and panelboards." | |
| 6 | IEEE 1100 Emerlad Book Std 1100-2005 8.6.1 |
| 7 | ANSI C62.41, Low-Voltage AC Power Circuits |
| "The selection of SPDs typically depends on the location of device. The SPDs are recommended to be sized per IEEE C62.41 and IEEE C62.45 requirements to achieve proper coordination. SPDs should be listed to UL1449." | |
| 8 | UL1449 4th Edition, Surge Protective Devices |
| 9 | UL1449 5th Edition, Surge Protective Devices |
| 10 | UL497B, Surge Protectors for Data Lines and Fire-Alarm Circuits |
| 11 | UL497E, Antenna Lead-in Conductors |
| 12 | IEC 61643-11, Low-Voltage Surge Protective Devices - Part 11: Surge Protective Devices Connected To Low-Voltage Power Systems - Requirements And Test Methods |
| 13 | IEC 61643-21, Low Voltage Surge Protective Devices - Part 21: Surge Protective Devices Connected To Telecommunications And Signalling Networks - Performance Requirements And Testing Methods |
| 14 | IEC 61000-45, Electromagnetic Compatibility (EMC) - Part 4-5: Testing And Measurement Techniques - Surge Immunity Test |
| 15 | CSA 22.2 |
| 16 | NOM-001-SCFI, Standard for Electronic Equipment |
| 17 | NOM-003-SCFI, Electrical Products - Safety Requirements |
| 18 | NOM-001-SCFI, Standard for Electronic Equipment |
| 19 | NOM-003-SCFI, Electrical Products - Safety Requirements |
