SURFACE MOUNT DATA
Part Number: 6336
TSP15M-P-24D3
- 1 Pair Protection
- Modes of Protection L-L,L-G
- Conduit Mounting-1/2 inch NPT
- Direct Transducer Mount
- Parallel or Series Connection Options
- BABA-Build America-Buy America Compliant
Datasheet|
VOLTS
|
(V) | 24 |
|
MAXIMUM LINE VOLTAGE
|
(V) | 32 |
|
WIRES
|
4W+GROUND |
|
|
LINE CURRENT MAX
|
(A) | 0.3 |
|
AMBIENT MIN
|
(C) | -55 |
|
AMBIENT MAX
|
(C) | +85 |
|
PROTECTION LEVEL
|
(V) | 38 |
|
IN
15 impulses 8/20µs
|
(kA) | 10 |
|
IMAX
8/20µs
|
(kA) | 15 |
|
CONNECTION METHOD
|
Parallel- #16 AWG Copper Wires-Tinned |
|
Operating Relative Humidity
Max
|
%RH | Can be submerged |
|
Operating Altitude
Min
|
Ft | 2000 Ft |
|
Operating Altitude
Max
|
Ft | 6500 Ft |
|
Housing/Enclosure material
|
Stainless Steel |
|
|
Mounting
|
Conduit-1/2" NPT |
|
|
Installation Location
|
Indoor / outdoor |
|
|

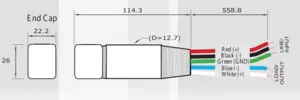

Product Dimension
L
|
mm | 114.3 mm |
|
Product Dimension
H
|
mm | 26 mm |
|
Product Dimension
W
|
mm | 27.94 mm |
|
Product Dimension
L
|
In | 4.5 In |
|
Product Dimension
H
|
In | 1 In |
|
Product Dimension
W
|
In | 1.1 In |
|
Product Weight
|
lbs | 0.8 lbs |
|
Individual Pack
|
Yes |
|
Individual Pack
|
Yes |
