SURFACE MOUNT DATA

TSP15M-S-24D3
Part Number 6337
TSP15M-S-24D3
Availability:
$142.00 (excl. tax)
Add to cart

Available within 3 weeks

  • 1 Pair Protection
  • Modes of Protection L-L,L-G
  • Conduit Mounting-1/2 inch NPT
  • Direct Transducer Mount
  • Parallel or Series Connection Options
Contact Us
VOLTS
 (V)

24
MAXIMUM LINE VOLTAGE
 (V)

32
WIRES

4W+GROUND
LINE CURRENT MAX
 (A)

0.3
AMBIENT MIN
 (C)

-55
AMBIENT MAX
 (C)

+85
PROTECTION LEVEL
 (V)

38
IN
15 impulses 8/20µs
 (kA)

10
IMAX
8/20µs
 (kA)

15
CONNECTION METHOD

Series- #16 AWG Copper Wires-Tinned
Operating Relative Humidity
Max
 %RH

Can be submerged
Operating Altitude
Min
 Ft 2000 Ft
Operating Altitude
Max
 Ft 6500 Ft
Housing/Enclosure material

Stainless Steel
Mounting

Conduit-1/2" NPT
Installation Location

Indoor / outdoor

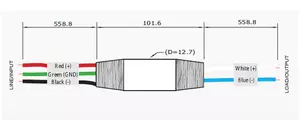

Product Dimension
L
 mm 114.3 mm
Product Dimension
H
 mm 26 mm
Product Dimension
W
 mm 27.94 mm
Product Dimension
L
 In 4.5 In
Product Dimension
H
 In 1 In
Product Dimension
W
 In 1.1 In
Product Weight
 g 363 g
Product Weight
 lbs 0.8 lbs
Individual Pack

Yes
Waranty

10 Years
