Outdoor Category 6 POE Surge Protective Device
Part Number: 890191
CGWMJ8-POE-C6
- UL497B LISTED
- Hybrid SAD-GDT technology
- Surge Rating - 16kA 8/20us
- Data transmission speed to 5Gbps
- IEEE 802.3bt POE++, UPoE to 90W
- IP66 Enclosure
Datasheet|
Max. load current @25°C
|
IL | 2 A |
|
Max. POE power (4PPOE)
|
90 W |
|
|
VOLTS
|
(V) | 48 |
|
AC/DC/DC PV/RF
|
DC |
|
|
WIRES
|
8W+Shield+Ground |
|
|
LINE CURRENT MAX
|
(A) | 1.6 |
|
POWER RATING
|
(W) | 100 |
|
AMBIENT MIN
|
(C) | -40 |
|
AMBIENT MAX
|
(C) | +85 |
|
MODES
|
DC+-DC-,DC+-G,DC--G,SH-G |
|
|
RESIDUAL VOLTAGE
|
(V) | 70 |
|
MCOV
|
(V) | 60/72/72 |
|
IMAX
8/20µs
|
(kA) | 16 |
|
DATA SPEED
|
(Mbps) | 10/100/1000/10000 |
|

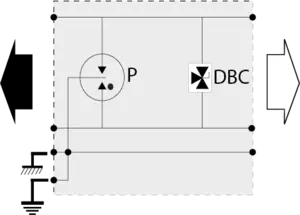

Technology
|
GDT+TVS diode |
|
|
Outdoor application
|
Yes |
|
|
Failsafe mode
|
Transmission cut-off - Fault mode 2 (short-circuit) |
|
|
TECHNOLOGY
|
SAD-GDT |
|
|
NETWORK CONFIGURATION
|
Single POE Line |
|
|
CONNECTION METHOD
|
Shielded RJ45 |
|
|
MOUNTING
|
FLANGE MOUNT/POLE MOUNT KIT |
|
|
MATERIAL
|
Polycarbonate |
|
|
FLAMMABILITY RATING
|
UL94-V0 |
|
|
NEMA RATING (IP RATING)
|
6 (IP66) |
|
|
DIMENSIONS
|
See diagram |
|
Environmental standards
|
EU RoHS |
|
|
UL CATEGORY
|
QVGQ |
|
|
UL FILE NUMBER
|
E184939 |
|
|
STANDARDS
|
NOM-003-SCFI-2014, NOM-001-SCFI-1993 |
