Outdoor Category 1GB POE Surge Protective Device
Part Number: 892004
CGMJ8-POE-A-C5E
POE++ compatible
- Shielded enclosure and connectors
- 16 kA maximum surge discharge capability
- Up to 1Gbps
- UL497B
Datasheet|
Network
|
Gigabit Ethernet (Cat.5E) |
|
|
Nominal line voltage
|
Un | 48 Vdc |
|
Max. DC operating voltage
|
Uc | 60 Vdc - 650 mA |
|
Max. frequency
|
f max. | 250 MHz |
|
Max. data rate
|
10/100/1000 Mbps |
|
|
Insertion loss
|
< 1 dB |
|
|
Max. load current @25°C
|
IL | 2 A |
|
Max. POE power (4PPOE)
|
90 W |
|
|
Nominal Discharge Current, X-C (Line/Earth)
8/20µs Test x 10 - C2 Category
|
In L/PE | 2000 A |
|
Protection Level
C3 (10/1000μs), 300 applications@10 A, Y-Y (Line/Line)
|
Up | 70 V |
|
Protection Level
C3 (10/1000μs), 300 applications@10 A, Y-C (Line/Earth)
|
Up | 70 V |
|
Impulse current
2 x 10/350µs Test - D1 Category
|
Iimp | 500 A |
|
DATA SPD TYPE
|
UL497B LISTED |
|
|
VOLTS
|
(V) | 48 |
|
AC/DC/DC PV/RF
|
DC |
|
|
WIRES
|
8W+Shield+Ground |
|
|
LINE CURRENT MAX
|
(A) | 1.2 |
|
POWER RATING
|
(W) | 100 |
|
AMBIENT MIN
|
(C) | -35 |
|
AMBIENT MAX
|
(C) | +85 |
|
MODES
|
DC+-DC-,DC+-G,DC--G,SH-G |
|
|
RESIDUAL VOLTAGE
|
(V) | 70 |
|
IMAX
8/20µs
|
(kA) | 16 |
|
DATA SPEED
|
(Mbps) | 10/100/1000 |
|

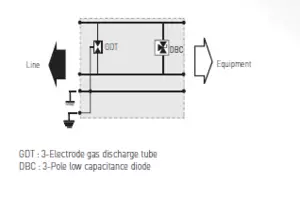

Technology
|
GDT+TVS diode |
|
|
Connection to Network
|
RJ45 shielded connectors Female input/output |
|
|
Format
|
Plastic Box with connectors input/output - Reinforced seal |
|
|
Mounting
|
On plate or pole |
|
|
Operating temperature
|
Tu | -40/+85°C |
|
Protection rating
|
IP66 |
|
|
Outdoor application
|
Yes |
|
|
Failsafe mode
|
Transmission cut-off - Fault mode 2 (short-circuit) |
|
|
Pinout
|
(1-2)(3-6)(4-5)(7-8) |
|
|
TECHNOLOGY
|
SAD-GDT |
|
|
NETWORK CONFIGURATION
|
Single POE Line |
|
|
CONNECTION METHOD
|
Shielded RJ45 |
|
|
MOUNTING
|
FLANGE MOUNT/POLE MOUNT KIT |
|
|
MATERIAL
|
Polycarbonate |
|
|
FLAMMABILITY RATING
|
UL94-V0 |
|
|
NEMA RATING (IP RATING)
|
6 (IP66) |
|
|
DIMENSIONS
|
See diagram |
|
Certification
|
UL 497B |
|
|
Environmental standards
|
EU RoHS |
|
|
UL STANDARD
|
UL497B |
|
|
UL CATEGORY
|
QVGQ |
|
|
UL FILE NUMBER
|
E184939 |
|
|
STANDARDS
|
NOM-003-SCFI-2014, NOM-001-SCFI-1993 |
