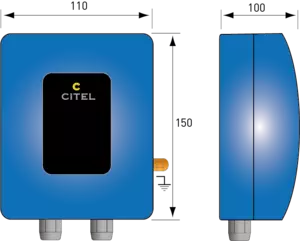

Outdoor Category 6 POE Surge Protective Device
CRMJ8-POE-C6A
Part Number 581542
Available within 3 weeks
POE++ compatible
- Shielded enclosure and connectors
- 16 kA maximum surge discharge capability
- Up to 10Gbps
- UL497B
Datasheet
Select another reference:
|
Network
|
10Gb/s on Cat6A S/FTP cabling | |
|
Protection modes (network)
|
CM / DM (common mode / differential mode) | |
|
Protection modes (POE)
|
CM / DM (common mode / differential mode) | |
|
Transmission standard
|
IEEE 802.3bt | |
|
Max. DC operating voltage
|
Uc | 8 Vdc |
|
Max. operating voltage (POE)
|
Uc | 60 Vdc |
|
Max. frequency
|
f max. | 500 MHz |
|
Max. data rate
|
10 Gbps | |
|
Max. load current @25°C
|
IL | 2 A |
|
Max. POE power (4PPOE)
|
90 W | |
|
Max. discharge current
max. withstand @ 8/20 µs, X-C (Line/Earth)
|
Imax | 2 kA |
|
Protection Level
C3 (10/1000μs), 300 applications@10 A, X-X (Line/Line)
|
Up | < 20 V |
|
Protection level
C3 (10/1000μs), 300 applications@10 A, X-C (Line/Earth)
|
Up | < 700 V |
|
Protection Level
C3 (10/1000µs), 300 applications @ 10A, (Pair-Pair, POE)
|
Up | < 70 V |
|
Impulse current
D1 (10/350μs), 2 applications, X-C (Line/Earth)
|
Iimp | 500 A |
|
Nominal discharge current
C1 (8/20μs), 300 applications X-X (Line/Line)
|
In | 1kV / 500A |
|
Nominal discharge current
C1 (1.2/50us / 8/20µs), 300 applications, X-C (Pair-Pair, POE)
|
In | 200 V / 100 A |
|
Nominal discharge current
C2 (8/20μs), 10 applications X-C (Line/Earth)
|
In | 4 kV / 2 kA |
|
Line resistance (± 10%)
|
~ 0 ohms | |
|
Capacitance
@1MHz, X-C (Line/Earth)
|
C | < 5 pF |
|
DATA SPD TYPE
|
UL497B LISTED | |
|
VOLTS
|
(V) | 60 |
|
AC/DC/DC PV/RF
|
DC | |
|
WIRES
|
8W+Shield+Ground | |
|
LINE CURRENT MAX
|
(A) | 1.2 |
|
POWER RATING
|
(W) | 100 |
|
AMBIENT MIN
|
(C) | -35 |
|
AMBIENT MAX
|
(C) | +85 |
|
MODES
|
DC+-DC-,DC+-G,DC--G,SH-G | |
|
RESIDUAL VOLTAGE
|
(V) | 70 |
|
MCOV
|
(V) | 60/72/72 |
|
IMAX
8/20µs
|
(kA) | 16 |
|
DATA SPEED
|
(Mbps) | 10/100/1000/10000 |
|
Technology
|
GDT+TVS diode | |
|
Connection to Network
|
RJ45 shielded connectors Female input/output | |
|
Cable glands
|
Plastic/Rubber | |
|
Format
|
Metallic Enclosure with connectors input/output | |
|
Accessory(s) provided
|
screw + nut + cable shoe | |
|
Outdoor application
|
Yes | |
|
Failsafe mode
|
Transmission cut-off - Fault mode 2 (short-circuit) | |
|
Pinout
|
(1-2)(3-6)(4-5)(7-8) | |
|
Weight
|
0.5 kg / 1.1 lbs | |
|
TECHNOLOGY
|
SAD-GDT | |
|
NETWORK CONFIGURATION
|
Single POE Line | |
|
CONNECTION METHOD
|
Shielded RJ45 | |
|
MOUNTING
|
FLANGE MOUNT/POLE MOUNT KIT | |
|
MATERIAL
|
Polycarbonate | |
|
FLAMMABILITY RATING
|
UL94-V0 | |
|
NEMA RATING (IP RATING)
|
6 (IP66) | |
|
DIMENSIONS
|
See diagram |
|
UL File Number
|
E184939 | |
|
Certification
|
UL 497B | |
|
UL STANDARD
|
UL497B | |
|
UL CATEGORY
|
QVGQ | |
|
UL FILE NUMBER
|
E184939 | |
|
STANDARDS
|
NOM-003-SCFI-2014, NOM-001-SCFI-1993 | |
|
ENVIRONMENTAL STANDARDS
|
ROHS |
