UL TYPE 4CA - Imax 18kA - In 3kA - 120-277Vac
MSB10-480(UL)
Part Number: 561801
- MOV Technology
- Imax 18kA
- In 3kA
- LED Indicator
- IP67
- ANSI/IEEE C136.2 Extreme 20kV/10kA
- ANSI/IEEE C62.41 20kV/10kA
- UL Type 4CA
- 10-year warranty
Datasheet
Select another reference:
| SPD type | 2+3 | |
| POWER SPD TYPE | UL1449 TYPE 4CA | |
| VOLTS | (V) | 480 |
| AC/DC/DC PV/RF | AC | |
| PHASE | (PH) | 1 |
| AMPS | (A) | n/a |
| AMBIENT MIN | (C) | -35 |
| AMBIENT MAX | (C) | +85 |
| MODES | L-N, L-G, N-G | |
| MLV | (V) | 1760/1750/1730 |
| MCOV | (V) | 300/300/300 |
| IN | (kA) | 3 |
| SCCR | (kA) | n/a |
| IMAX | (kA) | 18 |
| Technology | MOV | |
| Dimensions | See diagram | |
| TECHNOLOGY | Thermal-MOV | |
| NETWORK CONFIGURATION | 1PH, 2W+G, Single Phase (or 2PH, 2W+G, Two Phase) | |
| CONNECTION METHOD | 18" #14 AWG LEADS | |
| MOUNTING | FLANGE MOUNT | |
| MATERIAL | Thermoplastic UL94-V0 | |
| NEMA RATING (IP RATING) | NEMA 6P (IP67) | |
| FAIL-SAFE BEHAVIOR | Disconnection via fuse-link | |
| REAL-TIME DIAGNOSTICS | LED Indicator | |
| DIMENSIONS | See diagram (mm) | |
| WEIGHT | 0.30 lbs | |
| SPARE PART | n/a |
| Standards compliance | IEC 61643-11 / EN 61643-11 / UL1449 4ed. | |
| UL STANDARD | UL1449 4th Edition | |
| UL CATEGORY | VZCA2, VZCA8 | |

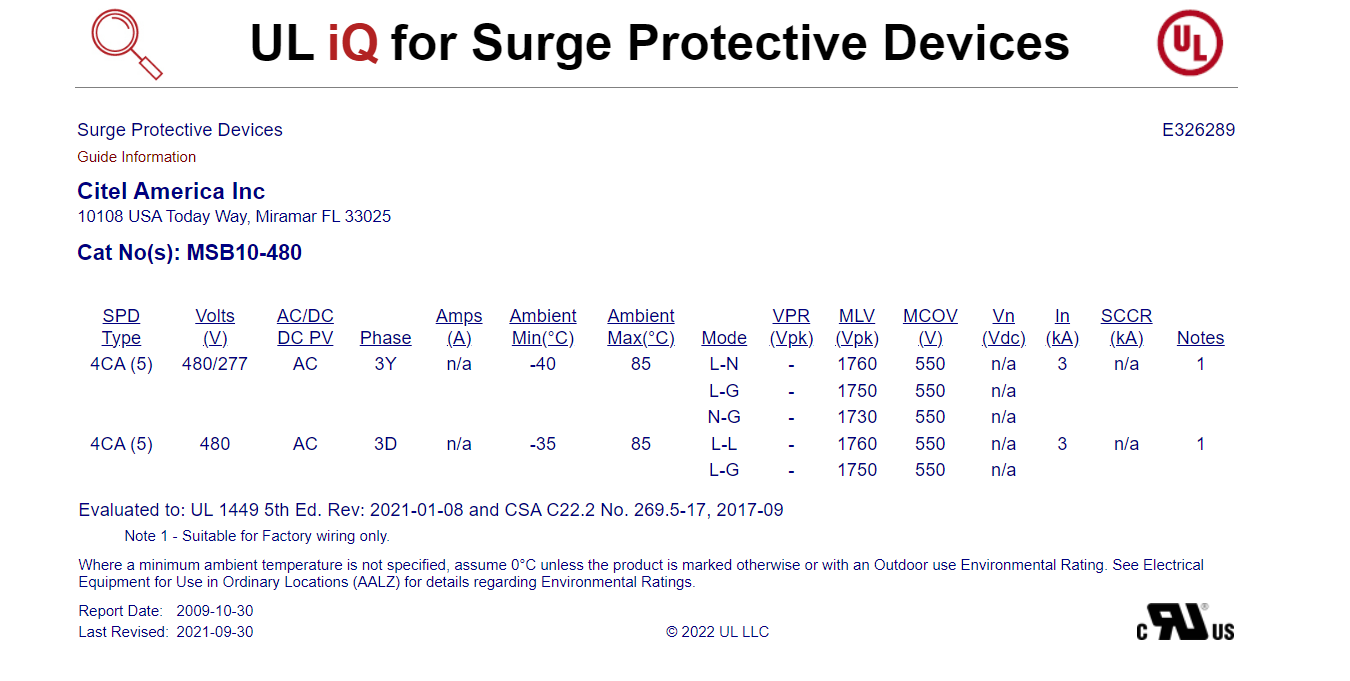

| UL FILE NUMBER | E326289 | |
| STANDARDS | NOM-003-SCFI-2014, NOM-001-SCFI-1993 | |
| ANSI/IEEE C62.41 | Category C 20kV/10kA | |
| ANSI/IEEE C136.2 | Extreme Category 20kV/10kA | |
| ENVIRONMENTAL STANDARDS | ROHS |
