UL TYPE 4CA - Imax 18kA - In 3kA

MSB10-400-Ex
Part Number 897020
MSB10-400-Ex
Availability:
$140.00 (excl. tax)
Add to cart

Available within 3 weeks

  • MOV Technology
  • UL121201 Listed-Hazardous Locations
  • UL 1449 5th- Type 4CA
  • Imax 18kA
  • In 3kA
  • LED Indicator
  • IP67
  • ANSI/IEEE C136.2 Extreme 20kV/10kA
  • ANSI/IEEE C62.41 20kV/10kA
  • 10-year warranty
Contact Us
Network

230 V single-phase
Protection mode(s)

Common/Differential mode
Protection level L/N
@ In (8/20µs)
 Up L/N

1.5 kV
POWER SPD TYPE

UL1449 5th Ed. TYPE 4CA
VOLTS
 (V)

277
AC/DC/DC PV/RF

AC
PHASE
 (PH)

1
AMPS
 (A)

N/A
AMBIENT MIN
 (C)

-35
AMBIENT MAX
 (C)

+85
MODES

L-L, L-G, L-N
MLV
 (V)

780/1340/1330/-
MCOV
 (V)

300/300/300
IN
15 impulses 8/20µs
 (kA)

3
SCCR
 (kA)

n/a
IMAX
8/20µs
 (kA)

18
Technology

MOV+GDT
Connection to Network

Wires
Failsafe mode

Disconnection from AC network
TECHNOLOGY

Thermal-MOV
NETWORK CONFIGURATION

1PH, 2W+G, Single Phase (or 2PH, 2W+G, Two Phase)
CONNECTION METHOD

18" #14 AWG LEADS
MOUNTING

FLANGE MOUNT
MATERIAL

Thermoplastic UL94-V0
NEMA RATING (IP RATING)

NEMA 6P (IP67)
FAIL-SAFE BEHAVIOR

Disconnection via fuse-link
REAL-TIME DIAGNOSTICS

LED Indicator
DIMENSIONS

See diagram
WEIGHT

0.30 lbs
SPARE PART

n/a
Certification

UL 497B
UL STANDARD

UL1449 5th Edition & UL121201
UL CATEGORY

VZCA2, VZCA8 & VZCH, VZCH7

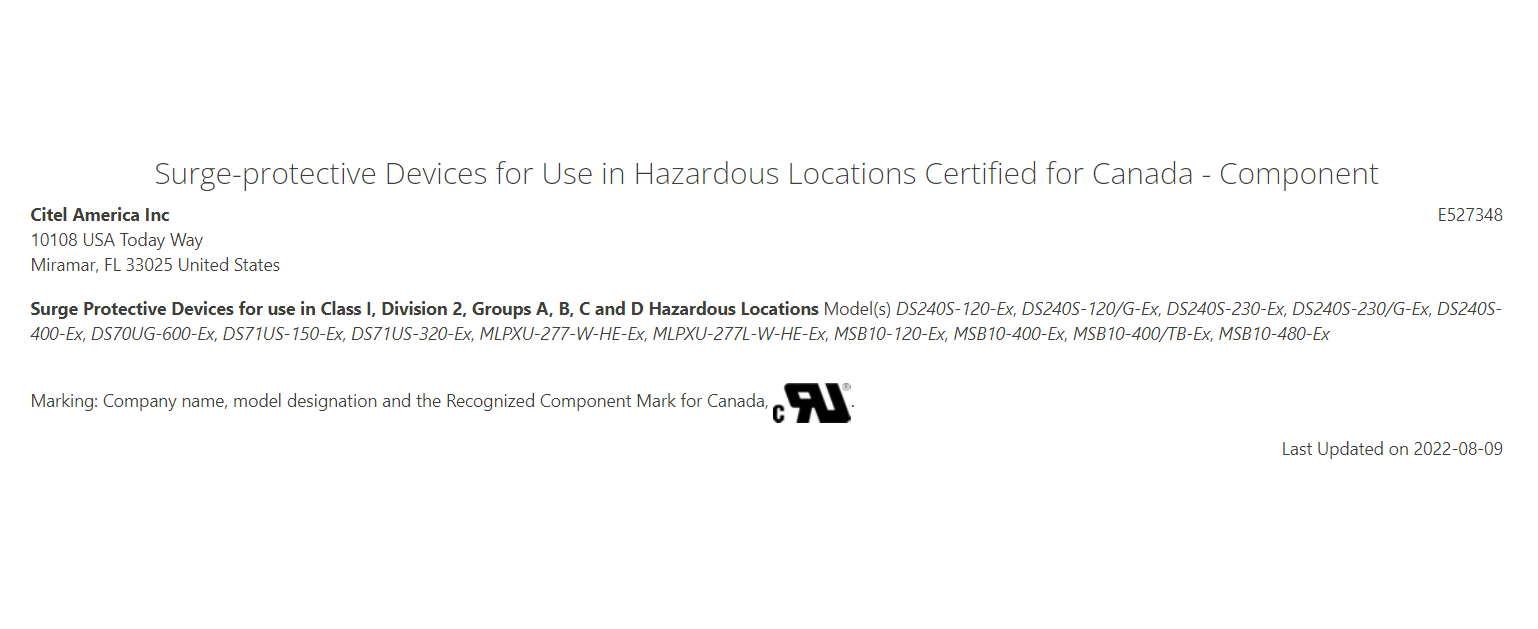

UL FILE NUMBER

E326289, E527348
UL121201 HAZARDOUS LOCATION

Class I, Division 2, Groups A, B, C & D: Operating Temp. T4
STANDARDS

NOM-003-SCFI-2014, NOM-001-SCFI-1993
ANSI/IEEE C62.41

Category C 20kV/10kA
ANSI/IEEE C136.2

Extreme Category 20kV/10kA
ENVIRONMENTAL STANDARDS

ROHS
