UL TYPE 4CA - Imax 22kA - In 10kA

MLPXU-277L-W-HE/ON
Part Number: 7113197
MLPXU-277L-W-HE/ON
Availability:
$60.00 (excl. tax)
Add to cart

Call for leadtime/delivery

  • MOV Technology
  • for 120-277Vac LED applications
  • Imax 20kA, In 10kA
  • Non-Disconnecting LED Indictor
  • IP67
  • ANSI/IEEE C136.2 Extreme
  • ANSI/IEEE C62.41 Category C
  • UL Type 4CA
  • 10-year Warranty
Contact Us
POWER SPD TYPE

UL1449 5th Ed. TYPE 4CA
VOLTS
 (V)

277
AC/DC/DC PV/RF

AC
PHASE
 (PH)

1
AMPS
 (A)

N/A
AMBIENT MIN
 (C)

-35
AMBIENT MAX
 (C)

+75
MODES

L-L, L-G, L-N, N-G
MLV
 (V)

1570/1600/1490
MCOV
 (V)

320/320/320
IN
15 impulses 8/20µs
 (kA)

10
SCCR
 (kA)

n/a
IMAX
8/20µs
 (kA)

22
TECHNOLOGY

Thermal-MOV
NETWORK CONFIGURATION

2 pole, 2W+G, Single/Spilt Phase
CONNECTION METHOD

150mm/5.97" #16 AWG Lead Wires
MOUNTING

FLANGE MOUNT
MATERIAL

Thermoplastic UL94-V0
NEMA RATING (IP RATING)

NEMA 6P (IP67)
FAIL-SAFE BEHAVIOR

Disconnection via fuse-link
REAL-TIME DIAGNOSTICS

Non-Disconnecting LED Power Indicator
DIMENSIONS

See diagram
WEIGHT

0.30 lbs
Certification

cRUus
Environmental standards

EU RoHS

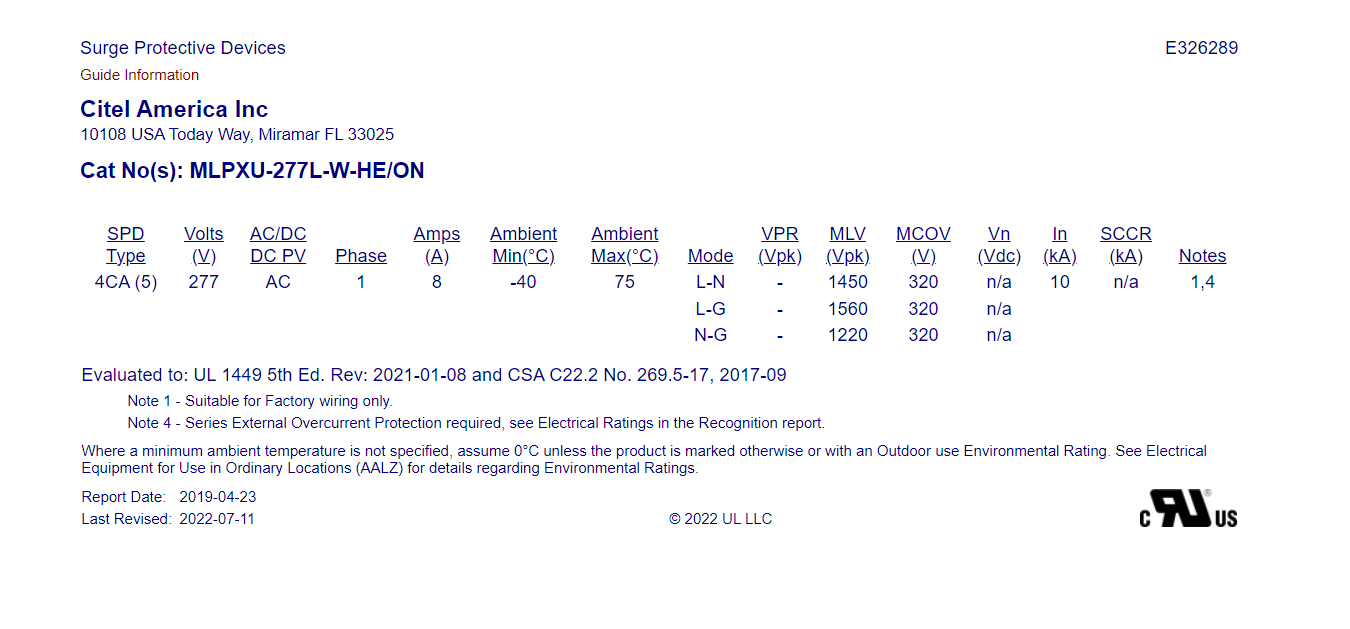

UL STANDARD

UL1449 5th Edition
UL CATEGORY

VZCA2, VZCA8
UL FILE NUMBER

E326289
STANDARDS

IEC 61643-11, NOM-003-SCFI-2014, NOM-001-SCFI-1993
ANSI/IEEE C62.41

Category C 20kV/10kA
ANSI/IEEE C136.2

Extreme Category 20kV/10kA
