UL TYPE 4CA - Imax 22kA - In 10kA

MLPXU-277-W-HE-Ex
Part Number: 897015
MLPXU-277-W-HE-Ex
  • MOV Technology
  • UL121201-Hazardous Locations
  • UL1449 Type 4CA
  • for 120-277Vac LED applications
  • Imax 22kA, In 10kA
  • LED indicator
  • IP67
  • ANSI/IEEE C136.2 Extreme
  • ANSI/IEEE C62.41 Category C
  • 10-year Warranty



POWER SPD TYPE
UL1449 TYPE 4CA for Hazardous Locations
VOLTS
(V) 277
AC/DC/DC PV/RF
AC
PHASE
(PH) 1
AMPS
(A) n/a
AMBIENT MIN
(C) -35
AMBIENT MAX
(C) +75
MODES
L-N, L-G, N-G
MLV
(V) 1570/1600/1490
MCOV
(V) 320/320/320
IN
15 impulses 8/20µs
(kA) 10
SCCR
(kA) n/a
IMAX
8/20µs
(kA) 22
TECHNOLOGY
Thermal-MOV
NETWORK CONFIGURATION
2 pole, 2W+G, Single/Spilt Phase
CONNECTION METHOD
PARALLEL VIA 8" #16 AWG LEADS
MOUNTING
FLANGE MOUNT
MATERIAL
Thermoplastic UL94-V0
NEMA RATING (IP RATING)
NEMA 6P (IP67)
FAIL-SAFE BEHAVIOR
Disconnection via fuse-link
REAL-TIME DIAGNOSTICS
LED Indicator
DIMENSIONS
See diagram (mm)
WEIGHT
0.30 lbs
UL STANDARD
UL1449 5th Edition & UL121201
UL CATEGORY
VZCA2, VZCA8 & VZCH, VZCH7
UL FILE NUMBER

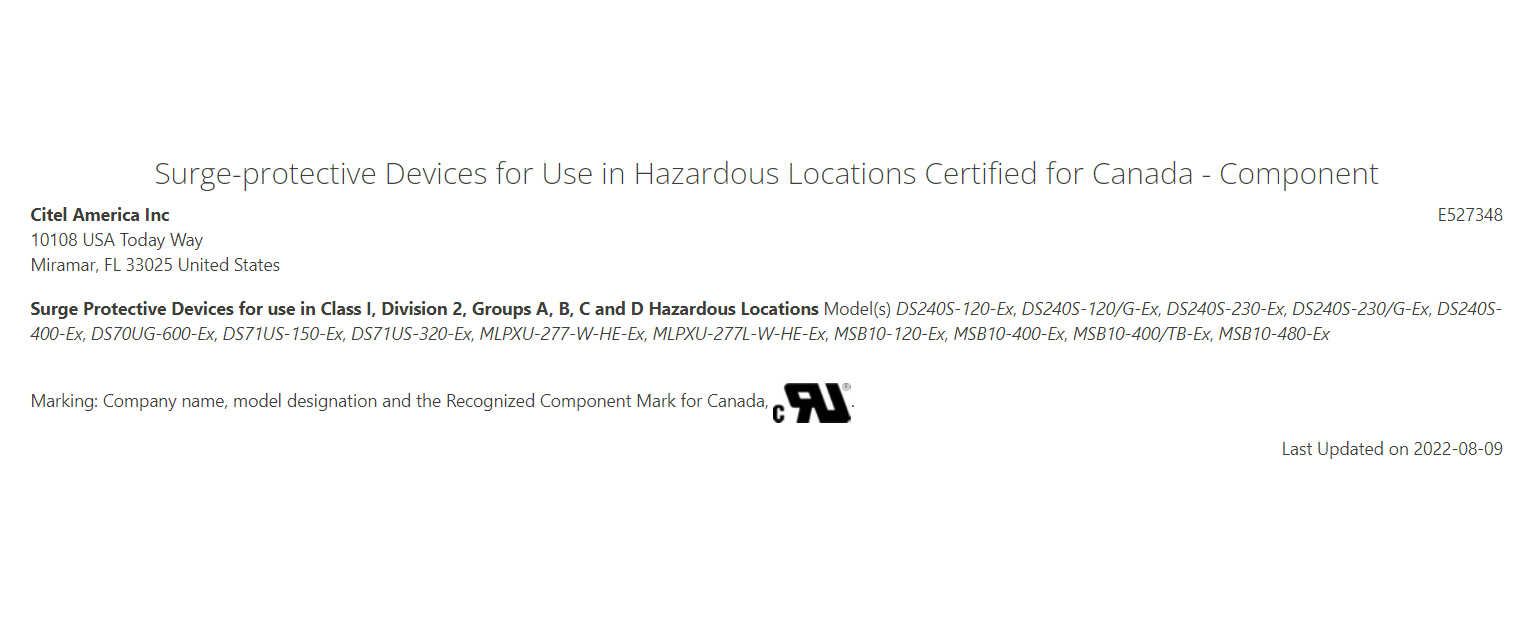

E326289, E527348
UL121201 HAZARDOUS LOCATION
Class I, Division 2, Groups A, B, C & D: Operating Temp. T5
STANDARDS
IEC 61643-11, NOM-003-SCFI-2014, NOM-001-SCFI-1993
ANSI/IEEE C62.41
Category C 20kV/10kA
ANSI/IEEE C136.2
Extreme Category 20kV/10kA
ENVIRONMENTAL STANDARDS
ROHS
