UL TYPE 4CA - Imax 22kA - In 10kA
Part Number: 897018
MLPC1-277L-V/50-Ex
- UL121201 Hazardous Locations
- UL1449 5th ed. Type 2 SPD
- ANSI C136.2
- 120 VAC to 277 VAC
- Plate Mounting
- Screw Terminal Connection
- Series or Parallel Installation
- Status indicator
- Disconnection AC end of life
- Total Surge Rating – Itotal: 20kA

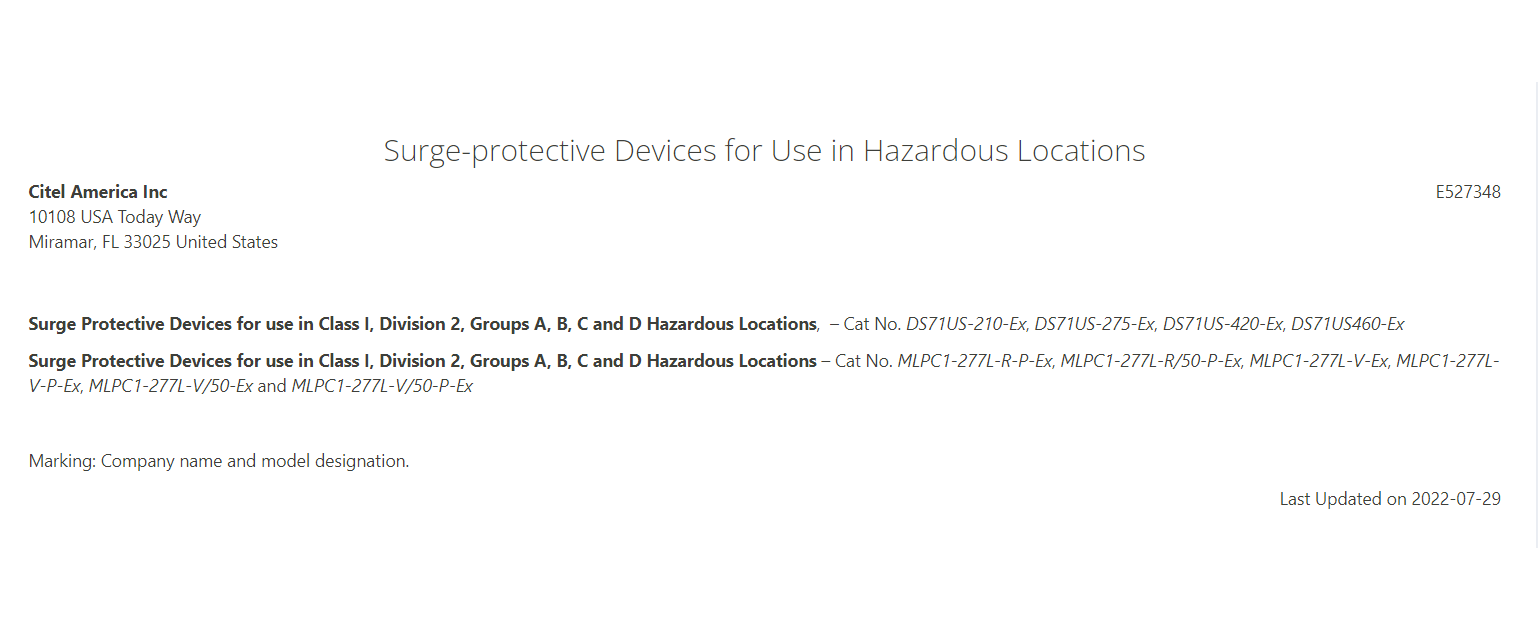

Certificates
Datasheet
|
Nominal line voltage
|
Un | 100 V-277 V |
|
Max. load current @25°C
|
IL | 5 A |
|
Max. discharge current
max. withstand @ 8/20 µs by pole
|
Imax | 10 kA |
|
Nominal discharge current
C2 Category
|
In | 5 kA |
|
Total Maximum discharge current
max. total withstand @ 8/20 µs
|
Imax Total | 20 kA |
|
POWER SPD TYPE
|
UL1449 TYPE 2 LISTED |
|
|
VOLTS
|
(V) | 277 |
|
AC/DC/DC PV/RF
|
AC |
|
|
PHASE
|
(PH) | 1 |
|
AMPS
|
(A) | 5 |
|
AMBIENT MIN
|
(C) | -40 |
|
AMBIENT MAX
|
(C) | +85 |
|
MODES
|
L-L, L-G, L-N, N-G |
|
|
VPR
|
(V) | 1500/1500/1200 |
|
MCOV
|
(V) | 385/385/255 |
|
IN
15 impulses 8/20µs
|
(kA) | 5 |
|
SCCR
|
(kA) | 18 |
|
IMAX
8/20µs
|
(kA) | 10 |
|
TECHNOLOGY
|
MOV-GSG |
|
|
NETWORK CONFIGURATION
|
2 pole, 2W+G, Single/Spilt Phase |
|
|
CONNECTION METHOD
|
Screw Terminal (4-10AWG) |
|
|
MOUNTING
|
FLANGE MOUNT |
|
|
MATERIAL
|
Thermoplastic UL94-V0 |
|
|
NEMA RATING (IP RATING)
|
NEMA 2 (IP20) |
|
|
FAIL-SAFE BEHAVIOR
|
Disconnection via fuse-link |
|
|
REAL-TIME DIAGNOSTICS
|
LED Indicator |
|
|
DIMENSIONS
|
See diagram |
|
|
WEIGHT
|
0.30 lbs |
|
Certification
|
UL Recognized |
|
|
Environmental standards
|
EU RoHS |
|
|
UL STANDARD
|
UL1449 5th Edition & UL121201 |
|
|
UL CATEGORY
|
VZCA, VZCA7, VZCH, VZCH7 |
|
|
UL FILE NUMBER
|
E326289, E527348 |
|
|
UL121201 HAZARDOUS LOCATION
|
Class I, Division 2, Groups A, B, C & D: Operating Temp. T4A |
|
|
STANDARDS
|
IEC 61643-11, NOM-003-SCFI-2014, NOM-001-SCFI-1993 |
|
|
ANSI/IEEE C62.41
|
Category C 20kV/10kA |
|
|
ANSI/IEEE C136.2
|
Enhanced Category 10kV/5kA |
|
Wiring type
|
Screw |
|
|
Solid wire cross section
Min
|
mm² | 0.5 mm² |
|
Solid Wire cross section
Max
|
mm² | 1.5 mm² |
|
Wire gauge
Min
|
AWG | 20 AWG |
|
Wire gauge
Max
|
AWG | 16 AWG |
|
Torque
|
Nm | 0,25 |
|
Torque
|
in-lbs | 2,1 |
|
Strip Length
|
mm | 10 mm |
|
Strip Length
|
in | 0.39 in |
|
Operating Relative Humidity
Max
|
%RH | 95 |
|
Operating Altitude
Min
|
Ft | 2000 Ft |
|
Operating Altitude
Max
|
Ft | 6500 Ft |
|
Housing/Enclosure material
|
Thermoplastic |
|
|
Flammability rating
UL 94
|
V0 |
|
|
Mounting
|
Surface mount |
|
|
IP Environmental rating
IP
|
IP20 |
|
|
Installation Location
|
indoor |
|
|
Product Dimension
L
|
mm | 59 mm |
|
Product Dimension
H
|
mm | 20.5 mm |
|
Product Dimension
W
|
mm | 40 mm |
|
Product Dimension
L
|
In | 2.32 In |
|
Product Dimension
H
|
In | 0.8 In |
|
Product Dimension
W
|
In | 1.57 In |
