AC POWER
SURFACE MOUNT AC
MLPC1-277L-V/50
SURFACE MOUNT AC
MLPC1-277L-V/50
Part Number:
831322
UL1449 Type 2 SPD
120 VAC to 277 VAC
Plate Mounting
Screw Terminal Connection
Series or Parallel Installation
Status indicator
Disconnection AC end of life
EN 61643-11 compliance
Total Surge Rating – Itotal: 20kA
ANSI C136.2
Datasheet

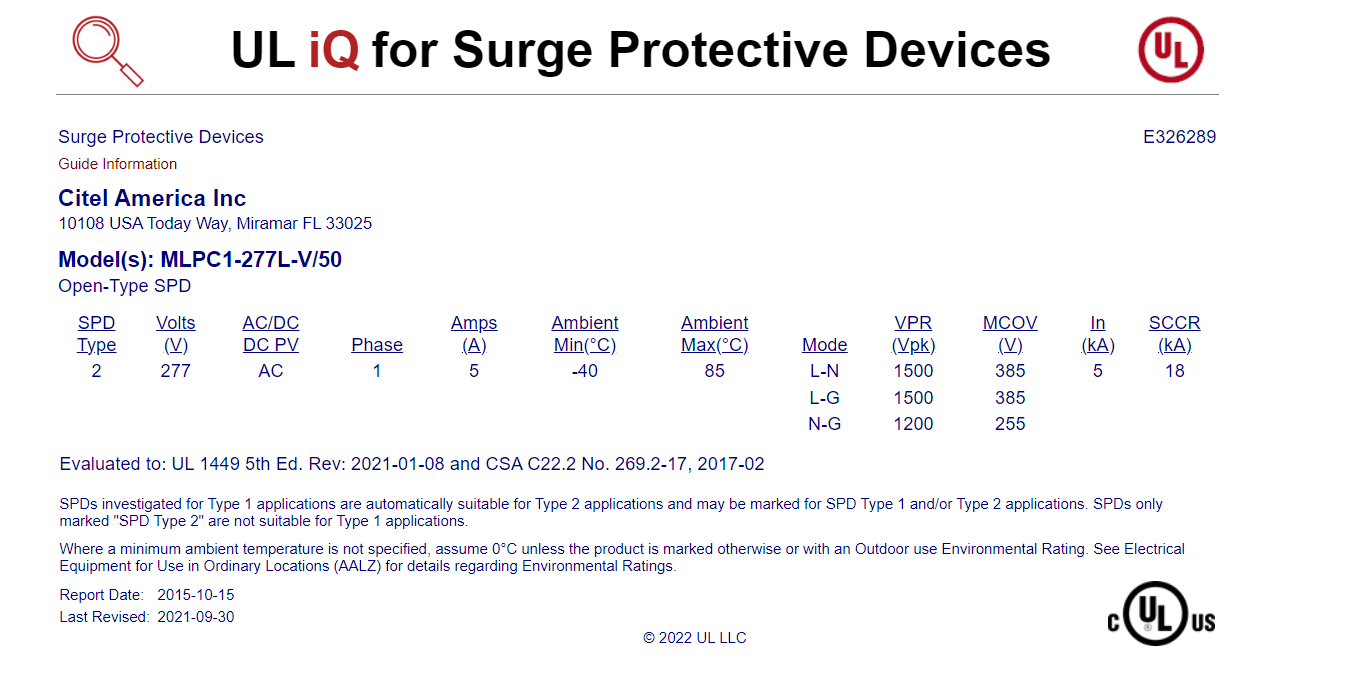

ULCertificate_MLPC1-277L-V:50.pdf
Installation Sheet
Tender specifications
Contact Us
Select another reference:
MLPC1-230L-R
MLPC1-230L-V/DL
MLPC1-277L-V
MLPC1-277L-V/50
MLPC1-440LY-R
MLPCH1-230L-R
MLPCH1-230L-V
Electrical Properties
Mechanical Properties
Norms
Install
Misc
Schemas
Max. load current
IL
5 A
Total Maximum discharge current
Imax Total
20 kA
Nominal discharge current
In
5 kA
Weight
0.039 kg
Certification
UL Listed / IMQ
ANSI/IEEE C136.2
Enhanced Category 10kV/5kA
Wiring type
Screw
Solid wire cross section
mm²
0.5 mm²
Solid Wire cross section
mm²
1.5 mm²
Wire gauge
AWG
20 AWG
Wire gauge
AWG
16 AWG
Torque
Nm
0,25
Torque
in-lbs
2,1
Strip Length
mm
10 mm
Strip Length
in
0.39 in
Operating Temperature
°C
-40 °C
Operating Temperature
°C
85 °C
Operating Temperature
°F
-40 °F
Operating Temperature
°F
85 °F
Operating Relative Humidity
%RH
95
Operating Altitude
Ft
2000 Ft
Operating Altitude
Ft
6500 Ft
Housing/Enclosure material
Thermoplastic
Flammability rating
V0
Mounting
Surface mount
IP Environmental rating
IP20
Installation Location
indoor
Product Dimension
mm
59 mm
Product Dimension
mm
20.5 mm
Product Dimension
mm
40 mm
Product Dimension
In
2.32 In
Product Dimension
In
0.8 In
Product Dimension
In
1.57 In
Individual Pack
Yes
Storage Temperature
°C
-40 °C
Storage Temperature
°C
85 °C
Storage Temperature
°F
-40 °F
Storage Temperature
°F
85 °F
Waranty
10 Years
×
