DIN RAIL AC

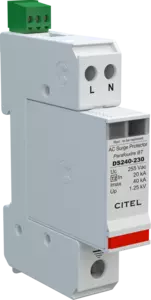

DS240S-230
DS240S-230
Part Number: 311711
  • MOV Technology
  • UL1449 Type 4CA
  • 40kA Surge Current Rating
  • Visual fault indicator and remote contacts
  • 10-Year warranty



POWER SPD TYPE UL1449 TYPE 4CA
VOLTS (V) 400/230
AC/DC/DC PV/RF AC
PHASE (PH) 1S
AMPS (A) n/a
AMBIENT MIN (C) -35
AMBIENT MAX (C) +60
MODES L-N, L-G, N-G
MLV (V) 2710/-/1950/-
MCOV (V) 510/-/255/-
IN (kA) 20
SCCR (kA) n/a
TECHNOLOGY MOV
NETWORK CONFIGURATION 1PH, 2W+G, Single Phase (or 2PH, 2W+G, Two Phase)
CONNECTION METHOD Screw Terminal (8-12AWG)
MOUNTING DIN RAIL
MATERIAL Thermoplastic UL94-V0
NEMA RATING (IP RATING) NEMA 2 (IP20)
FAIL-SAFE BEHAVIOR Disconnection via fuse-link
REAL-TIME DIAGNOSTICS Visual indicator and remote contacts
DIMENSIONS See diagram
WEIGHT 0.30 lbs
UL STANDARD UL1449 4th Edition
UL CATEGORY VZCA2, VZCA8
UL FILE NUMBER E326289
STANDARDS NOM-003-SCFI-2014, NOM-001-SCFI-1993
ENVIRONMENTAL STANDARDS ROHS
Wiring type screw
Solid wire cross section mm² 1.5 mm²
Solid Wire cross section mm² 16 mm²
Stranded Wire cross section mm² 1.5 mm²
Stranded wire cross section mm² 10 mm²
Wire gauge AWG 15 AWG
Wire gauge AWG 5 AWG
Torque Nm 1.2-1.5
Torque in-lbs 10.6-13.3
Strip Length mm 16 mm
Strip Length in 0.63 in
Operating Temperature °C -40 °C
Operating Temperature °C 85 °C
Operating Temperature °F -40 °F
Operating Temperature °F 85 °F
Operating Relative Humidity %RH 95
Operating Altitude m 2000 m
Operating Altitude Ft 6500 Ft
Housing/Enclosure material Thermoplastic
Flammability rating V0
Mounting Rail Din
IP Environmental rating IP20
Installation Location Indoor / outdoor
Spare part Module
Product Dimension mm 90 mm
Product Dimension mm 67 mm
Product Dimension mm 18 mm
Product Dimension In 3.54 In
Product Dimension In 2.63 In
Product Dimension In 0.71 In
Individual Pack Yes
Storage Temperature °C -40 °C
Storage Temperature °C 85 °C
Storage Temperature °F -40 °F
Storage Temperature °F 85 °F
Storage Relative Humidity %RH 95 %RH
Waranty 10 Years
