DIN RAIL AC

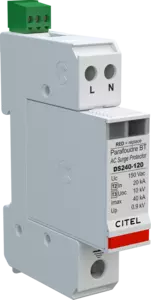

DS240S-120
Part Number: 311611
DS240S-120
Availability:
$100.00 (excl. tax)

Available within 10 days

  • MOV Technology
  • UL1449 Type 4CA
  • 40kA Surge Current Rating
  • Visual fault indicator and remote contacts
  • 10-Year warranty



Total Maximum discharge current
max. total withstand @ 8/20 µs
Imax Total 80 kA
Protection mode(s)
Common mode/Differential mode
POWER SPD TYPE
UL1449 5th Ed. TYPE 4CA
VOLTS
(V) 240/120
AC/DC/DC PV/RF
AC
PHASE
(PH) 1S
AMPS
(A) n/a
AMBIENT MIN
(C) -35
AMBIENT MAX
(C) +60
MODES
L-N, L-G, N-G
MLV
(V) 2010/1580/2010/1580
MCOV
(V) 300/150/300/150
IN
15 impulses 8/20µs
(kA) 20
SCCR
(kA) n/a
IMAX
8/20µs
(kA) 40
Weight
0.118 kg
TECHNOLOGY
MOV
NETWORK CONFIGURATION
1PH, 2W+G, Single Phase (or 2PH, 2W+G, Two Phase)
CONNECTION METHOD
Screw Terminal (8-12AWG)
MOUNTING
DIN RAIL
MATERIAL
Thermoplastic UL94-V0
NEMA RATING (IP RATING)
NEMA 2 (IP20)
FAIL-SAFE BEHAVIOR
Disconnection via fuse-link
REAL-TIME DIAGNOSTICS
Visual indicator and remote contacts
DIMENSIONS
See diagram (mm)
WEIGHT
0.30 lbs
SPARE PART
DSM240-120
Certification
UL Recognized
UL STANDARD
UL1449 5th Edition
UL CATEGORY
VZCA2, VZCA8
UL FILE NUMBER
E326289
STANDARDS
NOM-003-SCFI-2014, NOM-001-SCFI-1993
ENVIRONMENTAL STANDARDS
ROHS
