M9L13208
Comparison CITEL DS73US-120Y/NN
Surge Protective Device (SPD)

CITEL DS73US-120Y/NN Surge Protector	SCHNEIDER ELECTRIC M9L13208 Surge Protector
Intended Application System
System Voltage	120/208Vac
Number of Phases	3-Phase
Conductors	3 Wire + Ground
Configuration	Wye

PRODUCT COMPARISON TABLE

This page collects publicly available data from ul.com and assembles a side by side reference table for a convenient product cross reference.

Manufacturer
UL File #	E326289	E514545
Model	DS73US-120Y/NN	M9L13208

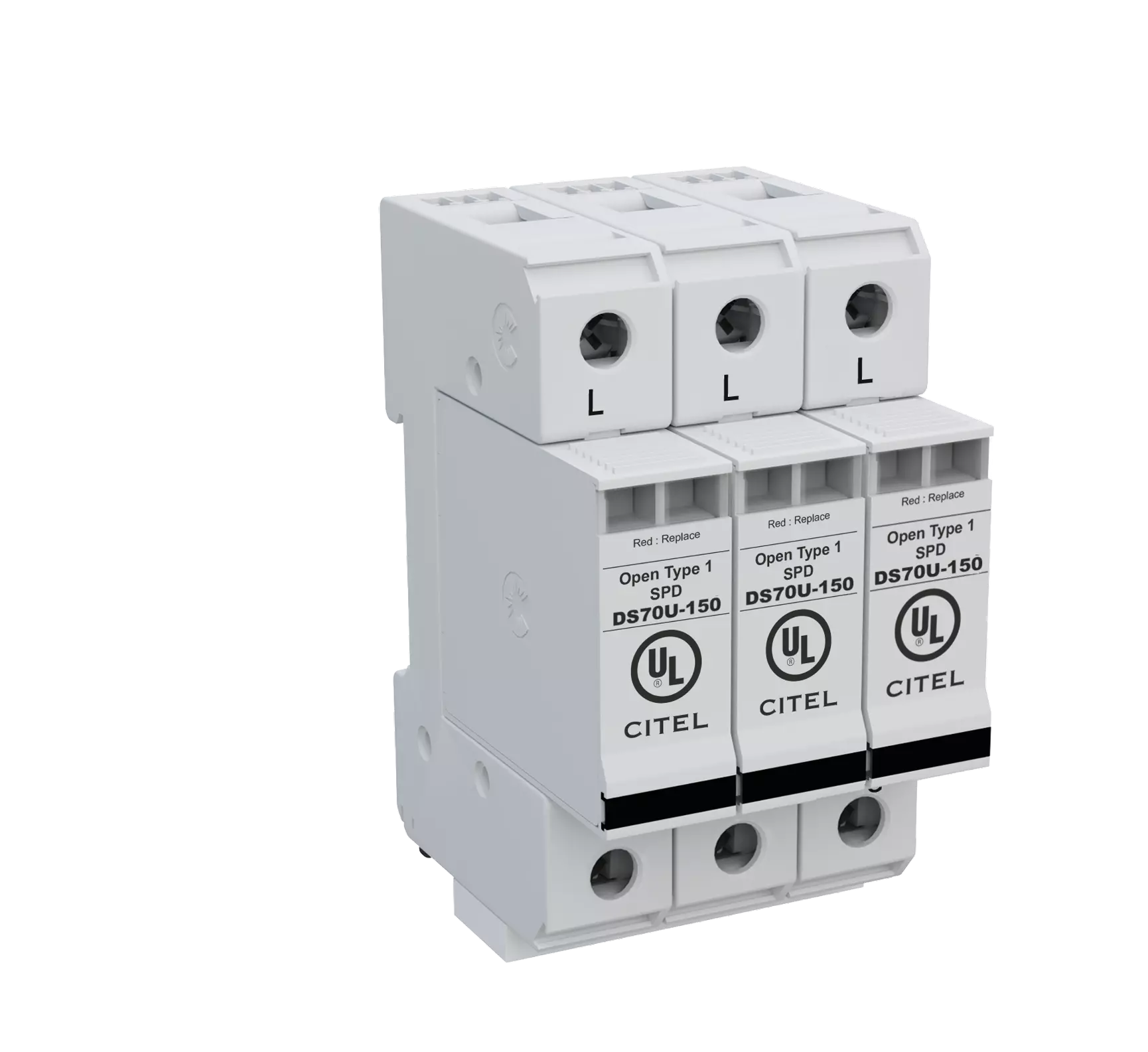

Product Image
UL.com Ratings	UL CARD	UL CARD
UL APPROVAL	LISTED	RECOGNIZED
UL MARK
SPD Type	UL 1449 5th Ed. Listed Type 1	UL Recognized 1449 4th Ed. Type 1CA
Volt (V)	120/208	120/208
AC/DC DC PV	AC	AC
Phase	3Y	3Y
Amps (A)	n/a	n/a
Ambient Min (C)	-40	-40
Ambient Max (C)	85	85
Mode
L-L L-N L-G N-G	L-L - L-G n/a	L-L L-N - n/a
VPR (Vpk)
L-L L-N L-G N-G	1200 - 700 n/a	1200 600 - n/a
MCOV
L-L L-N L-G N-G	300 - 150 n/a	350 175 - n/a
In (kA)	20	20
SCCR (kA)	200	200
Additional Data Sheet Ratings
Surge Current Rating (kA)	75	75
Protection Circuit	TMOV	TMOV
Leakage Current	Yes	Yes
TOV Optimized	No	No
Diagnostics	Mechanical Indicator & Remote Contacts	Mechanical Indicator & Remote Contacts
Environmental Rating	IP20	IP20
# of Wires	4	4
Modes of Protection	Common Mode Differential Mode	Common Mode Differential Mode
Warranty	10-years	2-years

|

UL data is publicly available with a free account at UL.com. The data has been reviewed by our engineering department. From time to time, the applicants UL file (including CITEL's) may become changed or updated at UL.com due to new testing or corrections to a report. At the time of this comparison you will find this information to be accurate to the UL web site. If you find any information requires an update, please bring to our attention and it will be updated immediately.
