DEHN 953 204 Alternate CITEL DS240S-120/G Surge Protector Device

DEHN 953 204 Alternate CITEL DS240S-120/G Surge Protector SPD

Citel Logo

DEHN 953 204
Comparison CITEL DS240S-120/G
Surge Protective Device (SPD)

DS240S-120/G
Surge Protector

DEHN 953 204
Surge Protector

Intended Application

System

System Voltage120VAC
Number of Phases1 Phase
Conductors1 Phase + Neutral +Ground
ConfigurationSingle Phase 120VAC

PRODUCT COMPARISON TABLE

This page collects publicly available data from ul.com and assembles a side by side
reference table for a convenient product cross reference.

Manufacturer Citel Logo
UL File #E326289E319777
Model
DS240S-120/G

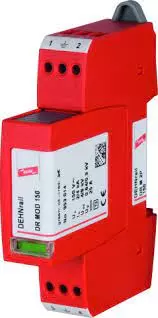

DEHN 953 204

Product Image

UL.com Ratings


UL CARD


UL CARD

UL APPROVALRECOGNIZED 5th Ed.RECOGNIZED 4th Ed.
UL MARK
SPD Type4CA4CA
Volt (V)240/120120/60
AC/DC
DC PV
ACAC
Phase1S1S
Amps (A)n/an/a
Ambient Min (C)-35-40
Ambient Max (C)6085
Mode
L-N
L-G
N-G
L-L
L-G
VPR (Vpk)
L-N
L-G
N-G
-
-
-
-
-
-
MCOV
L-N (-L)
L-G
N-G
150
150
255
150
75
-
In (kA)202
SCCR (kA)N/AN/A

Additional
Data Sheet Ratings

Surge Current
Rating (kA)
406
Protection CircuitMOV & GSG
(Thermally Protected)
MOV
(Thermally Protected)
Leakage CurrentNoYes
TOV OptimizedNoNo
DiagnosticsIndicator &
Remote Contacts
Indicator &
Remote Contacts
# of Wires33
Modes of ProtectionL-N, L-G, N-GL-L, L-G
Warranty10-years2-years
Notes
-

Determining the acceptability of an SPD for your UL equipment for UL 508A Control Panels and All Other UL Listed Equipment

The UL inspector will first consider the SPD type when determining it’s acceptability for a given application or piece of equipment. This will include UL 508A as well as all other UL Listed equipment. The first level compliance is based on the UL Approval (LISTED or RECOGNIZED) of the SPD or UL SPD Type and it’s Suitable Ratings. This means that it has to meet all safety, performance, environmental and electrical system ratings of the application. If any of these criteria are not fully met, it will require a Procedure Description, a File Update and/or Additional Testing. These actions will require additional costs that may be substantial. For this reason, it is in the interest of the specifier to use UL LISTED SPD’s to eliminate any uncertainty or to make sure the UL RECOGNIZED SPD is selected at the time of UL submittal of the equipment.

Approval Considerations Table based on UL SPD Type

UL
Mark
UL1449
SPD Type
Suitable
Ratings
Procedure
Described
File
Update or
Additional
Testing
Notes
1

2
YesNoNoThe only requirement is that the SPD must match electrical and environmental ratings of the UL 508A Control Panel.

A UL field inspection of the control panel with the SPD installed is required as a part of a standard follow-up service visit.
1CA

2CA

4CA

5
YesYesYesYes – All UL recognized SPD’s require a UL engineering evaluation of the SPD’s existing UL1449 E–file.

This will result, at a minimum, in a cost to update the UL file and may also require testing that would result in additional costs.
UL data is publicly available with a free account at UL.com. The data has been reviewed by our engineering department. From time to time, the applicants UL file (including CITEL's) may become changed or updated at UL.com due to new testing or corrections to a report. At the time of this comparison you will find this information to be accurate to the UL web site. If you find any information requires an update, please bring to our attention and it will be updated immediately.
