DIN RAIL PV
DS50VGPVS-1500G/51
Part Number: 481511
- UL Type 1 CA DC SPD for PV Systems
- VG Technology for Maximum Performance
- Zero Leakage Current
- Zero Current Working
- Imax : 40kA/pole at 8/20µs
- In : 20kA/pole at 8/20µs
- UL 1449 4th Edition Recognized
Datasheet
Select another reference:
| Maximum Discharge Current | kA (+)-(-) | 40 kA |
| Maximum Discharge Current | kA (+)-G | 40 kA |
| Maximum Discharge Current | kA (-)-G | 40 kA |
| Voltage Protection Level | V (+)-(-) | 5000 V |
| Voltage Protection Level | V (+)-G | 3000 V |
| Voltage Protection Level | V (-)-G | 3000 V |
| POWER SPD TYPE | UL1449 TYPE 1CA | |
| VOLTS | (V) | 1500 |
| AC/DC/DC PV/RF | DC PV | |
| PHASE | (PH) | - |
| AMPS | (A) | n/a |
| AMBIENT MIN | (C) | -35 |
| AMBIENT MAX | (C) | +85 |
| MODES | DC+-DC-,DC+-G,DC--G | |
| MCOV | (V) | 1500/1500/1500 |
| IN | (kA) | 10 |
| SCCR | (kA) | 50 |
| TECHNOLOGY | MOV+GSG | |
| NETWORK CONFIGURATION | 3 poles, 2W+G | |
| CONNECTION METHOD | Screw Terminal (8-12AWG) | |
| MOUNTING | DIN RAIL | |
| MATERIAL | Thermoplastic UL94-V0 | |
| NEMA RATING (IP RATING) | NEMA 2 (IP20) | |
| FAIL-SAFE BEHAVIOR | Disconnection via fuse-link | |
| REAL-TIME DIAGNOSTICS | Visual indicator and remote contacts | |

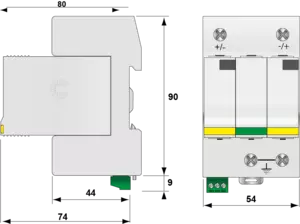

| DIMENSIONS | See diagram |
| UL STANDARD | UL1449 4th Edition | |
| UL FILE NUMBER | E326289 |
| Wiring type | Screw | |
| Solid wire cross section | mm² | 4 mm² |
| Solid Wire cross section | mm² | 25 mm² |
| Stranded Wire cross section | mm² | 4 mm² |
| Stranded wire cross section | mm² | 25 mm² |
| Wire gauge | AWG | 12 AWG |
| Wire gauge | AWG | 4 AWG |
| Torque | Nm | 2.0 - 2.5 |
| Torque | in-lbs | 17.8 - 22.1 |
| Strip Length | mm | 12.5 mm |
| Strip Length | in | 0.5 in |
| Operating Temperature | °C | -40 °C |
| Operating Temperature | °C | 85 °C |
| Operating Temperature | °F | -40 °F |
| Operating Temperature | °F | 85 °F |
| Operating Relative Humidity | %RH | 95 |
| Operating Altitude | m | 2000 m |
| Operating Altitude | Ft | 6500 Ft |
| Housing/Enclosure material | Thermoplastic | |
| Flammability rating | V0 | |
| Mounting | Din Rail | |
| IP Environmental rating | IP20 | |
| NEMA Environmental rating | NEMA 1 | |
| Installation Location | Indoor | |
| Spare part | Module | |
| Product Dimension | mm | 99 mm |
| Product Dimension | mm | 67 mm |
| Product Dimension | mm | 54 mm |
| Product Dimension | In | 3.89 In |
| Product Dimension | In | 2.64 In |
| Product Dimension | In | 2.13 In |
| Individual Pack | Yes | |
| Storage Temperature | °C | -40 °C |
| Storage Temperature | °C | 85 °C |
| Storage Temperature | °F | -40 °F |
| Storage Temperature | °F | 85 °F |
| Storage Relative Humidity | %RH | 95 %RH |
| Waranty | 20 Years |
