DIN RAIL PV
DS50PVS-1500/51/DC
Part Number 487571
Available within 3 weeks
- MOV Technology
- UL1449 5th Edition-Type 4CA
- 40kA Surge Current Rating
- Visual fault indicator and remote contacts
- 10-Year warranty
Select another reference:
Network
|
PV network 1250 Vdc | |
Protection mode(s)
|
Common/Differential mode | |
POWER SPD TYPE
|
UL1449 5th Ed TYPE 4CA | |
VOLTS
|
(V) | 1500 |
AC/DC/DC PV/RF
|
DC | |
PHASE
|
(PH) | - |
AMPS
|
(A) | N/A |
AMBIENT MIN
|
(C) | -40 |
AMBIENT MAX
|
(C) | +85 |
MODES
|
DC+-DC-, DC+-G, DC--G | |
MLV
|
(V) | 3400/2240/2240 |
MCOV
|
(V) | 1500/1500/1500 |
IN
15 impulses 8/20µs
|
(kA) | 10 |
SCCR
|
(kA) | n/a |
IMAX
8/20µs
|
(kA) | 40 |
Technology
|
MOV | |
Connection to Network
|
By screw terminals: 2.5-25mm² / by bus | |
Format
|
Plug-in modular box | |
Failsafe mode
|
Disconnection SPD of the PV line | |
Weight
|
0.334 kg | |
TECHNOLOGY
|
MOV | |
NETWORK CONFIGURATION
|
3 poles, 2W+G | |
CONNECTION METHOD
|
SPD-Screw Terminal (8-12AWG), Terminal blocks 6AWG | |
MOUNTING
|
DIN RAIL | |
MATERIAL
|
Thermoplastic UL94-V0 | |
NEMA RATING (IP RATING)
|
NEMA 2 (IP20) | |
FAIL-SAFE BEHAVIOR
|
Disconnection via fuse-link | |
REAL-TIME DIAGNOSTICS
|
Visual indicator and remote contacts | |
DIMENSIONS
|
See diagram |
Certification
|
UL Recognized | |

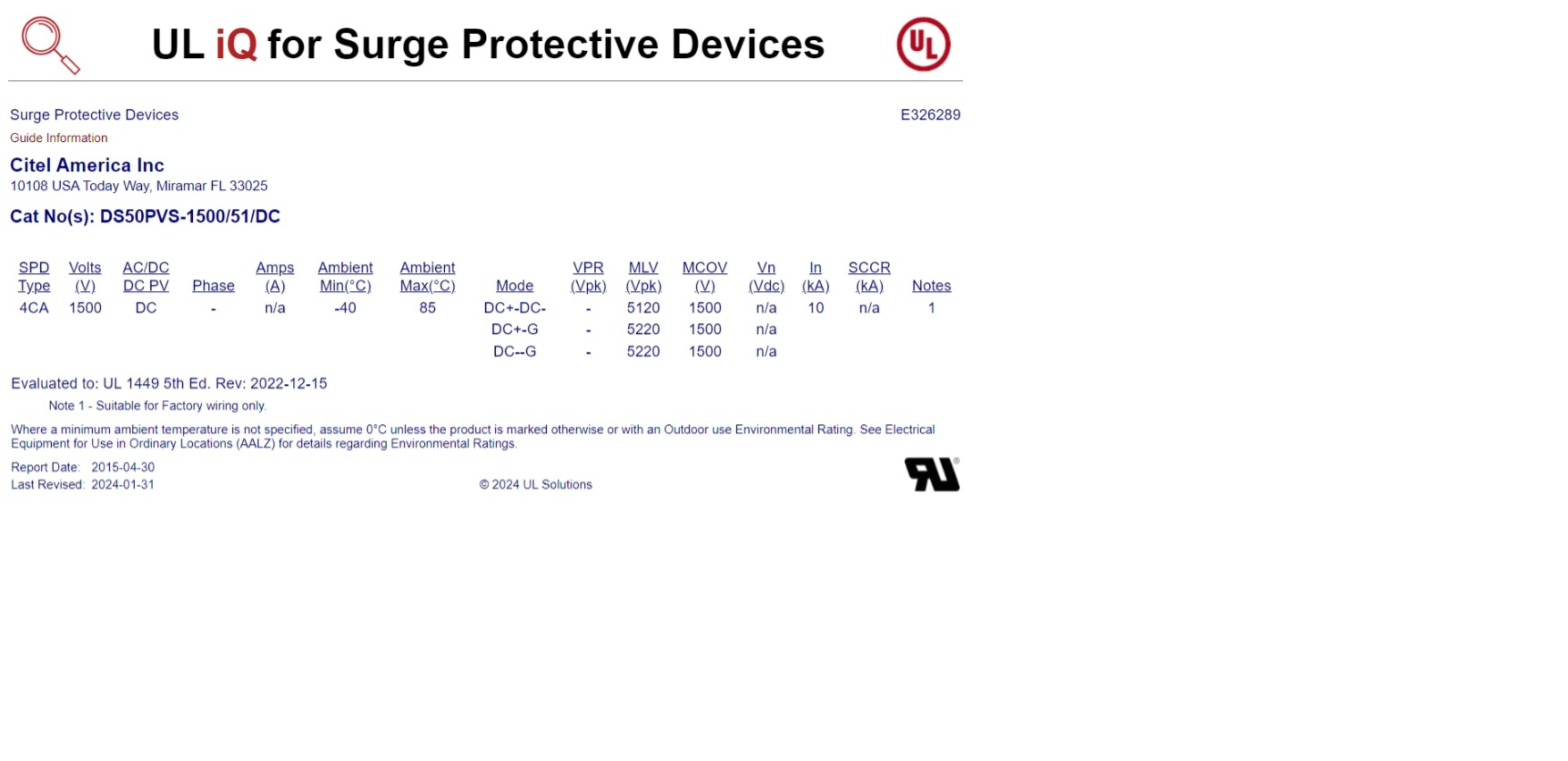

UL STANDARD
|
UL1449 5th Edition | |
UL FILE NUMBER
|
E326289 |
