Carril DIN Fotovoltaica

DS50PVS-1500/51/DC
Código artículo 487571
DS50PVS-1500/51/DC
Availability:
255,00 US$ (excl. tax)

Available within 3 weeks




Red

FV 1250 Vdc

Modo(s) de protección

Modo Común o Mode Diferenciado

UL1449 5th Ed TYPE 4CA

TENSION
(V)

1500

DC

FASE
(PH)
(A)

N/A

(C)

-40

(C)

+85

MODOS

DC+-DC-, DC+-G, DC--G

(V)

3400/2240/2240

(V)

1500/1500/1500

(kA)

10

Icc
cortocircuito
(kA)

n/a

(kA)

40

Tecnología

MOV

Conexión à la red

Por terminales de tornillos: 2.5-25 mm² / por bus

Formato

Caja modular desenchufable

Modo de fallo

Desconexión de la protección de la línea FV

Peso

0.334 kg

TECNOLOGIA

MOV

CONFIGURACION DE RED

3 poles, 2W+G

FORMA DE CONEXION

SPD-Screw Terminal (8-12AWG), Terminal blocks 6AWG

MONTAJE

DIN RAIL

Thermoplastic UL94-V0

NEMA 2 (IP20)

DESCONEXION SEGURA

Disconnection via fuse-link

Visual indicator and remote contacts

See diagram

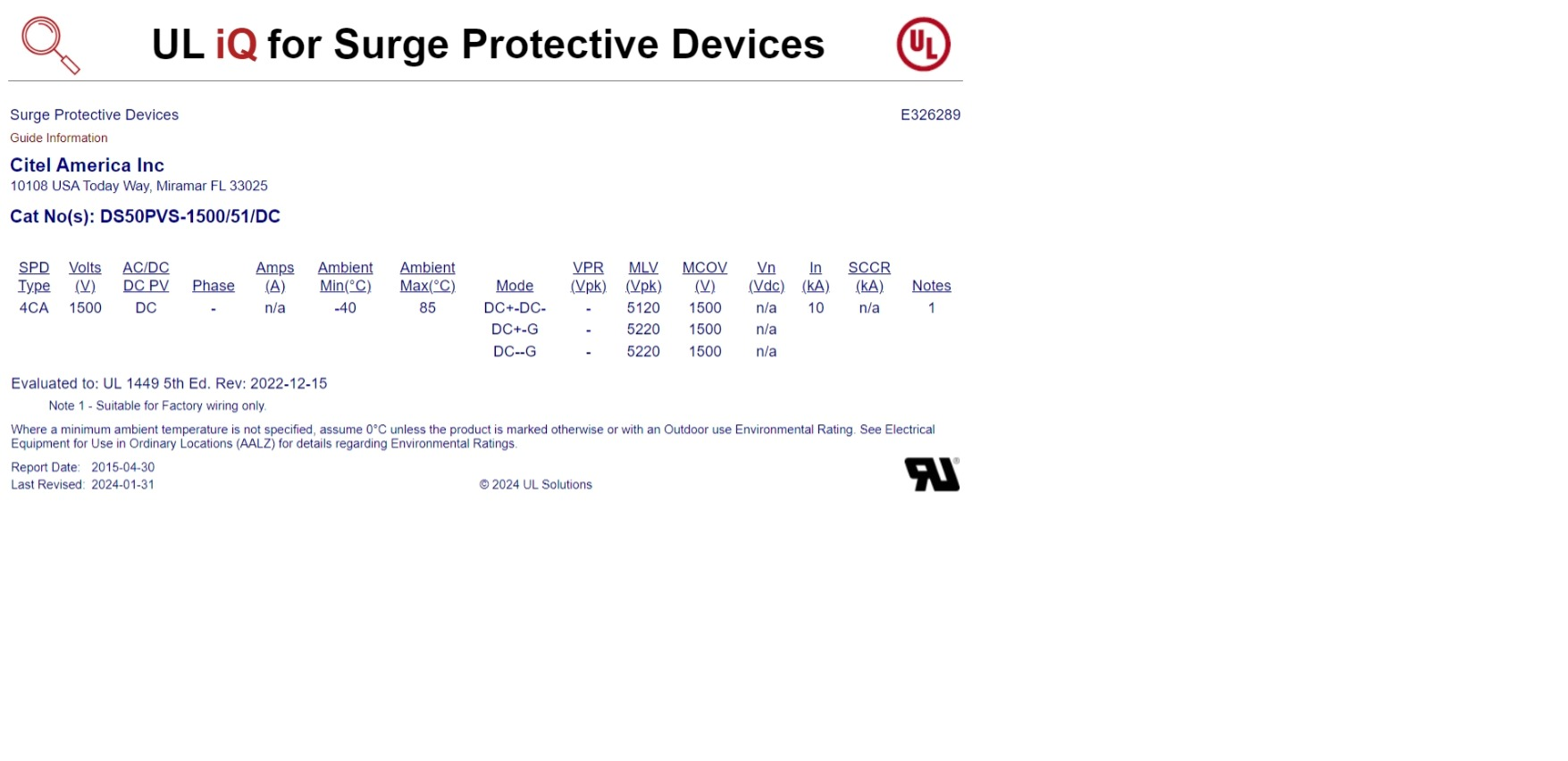

Certificación

UL Recognized

UL1449 5th Edition

E326289
