DC POWER
DIN RAIL PV
DS50PVS-1500/51
DIN RAIL PV
DS50PVS-1500/51
Part Number:
480571
MOV Technology
UL1449 Type 4CA
40kA Surge Current Rating
Visual fault indicator and remote contacts
10-Year warranty
Datasheet
ULCertificate_DS50PVS-1500:51.pdf
Installation Sheet
Tender specifications
Contact Us
Select another reference:
DS50PVS- 800G/51
DS50PVS-1000
DS50PVS-1000G/51
DS50PVS-1500/51
DS50PVS-500
DS50PVS-500/DE
DS50PVS-600
DS50PVS-800
Electrical Properties
Mechanical Properties
Norms
Schemas
Total Maximum discharge current
Imax Total
60 kA
Protection mode(s)
Common/Differential mode
Maximum Discharge Current
kA (-)-G
40 kA
POWER SPD TYPE
UL1449 TYPE 4CA
VOLTS
(V)
1500
AC/DC/DC PV/RF
DC PV & DC
PHASE
(PH)
-
AMPS
(A)
n/a
AMBIENT MIN
(C)
-40
AMBIENT MAX
(C)
+85
MODES
DC+-DC-,DC+-G,DC--G
MLV DC
(V)
5120/5220/5220
MCOV
(V)
1500/1500/1500
IN
(kA)
10
SCCR
(kA)
n/a
IMAX
(kA)
40
Weight
0.334 kg
TECHNOLOGY
MOV
NETWORK CONFIGURATION
3 poles, 2W+G
CONNECTION METHOD
Screw Terminal (8-12AWG)
MOUNTING
DIN RAIL
MATERIAL
Thermoplastic UL94-V0
NEMA RATING (IP RATING)
NEMA 2 (IP20)
FAIL-SAFE BEHAVIOR
Disconnection via fuse-link
REAL-TIME DIAGNOSTICS
Visual indicator and remote contacts
DIMENSIONS
See diagram (mm)

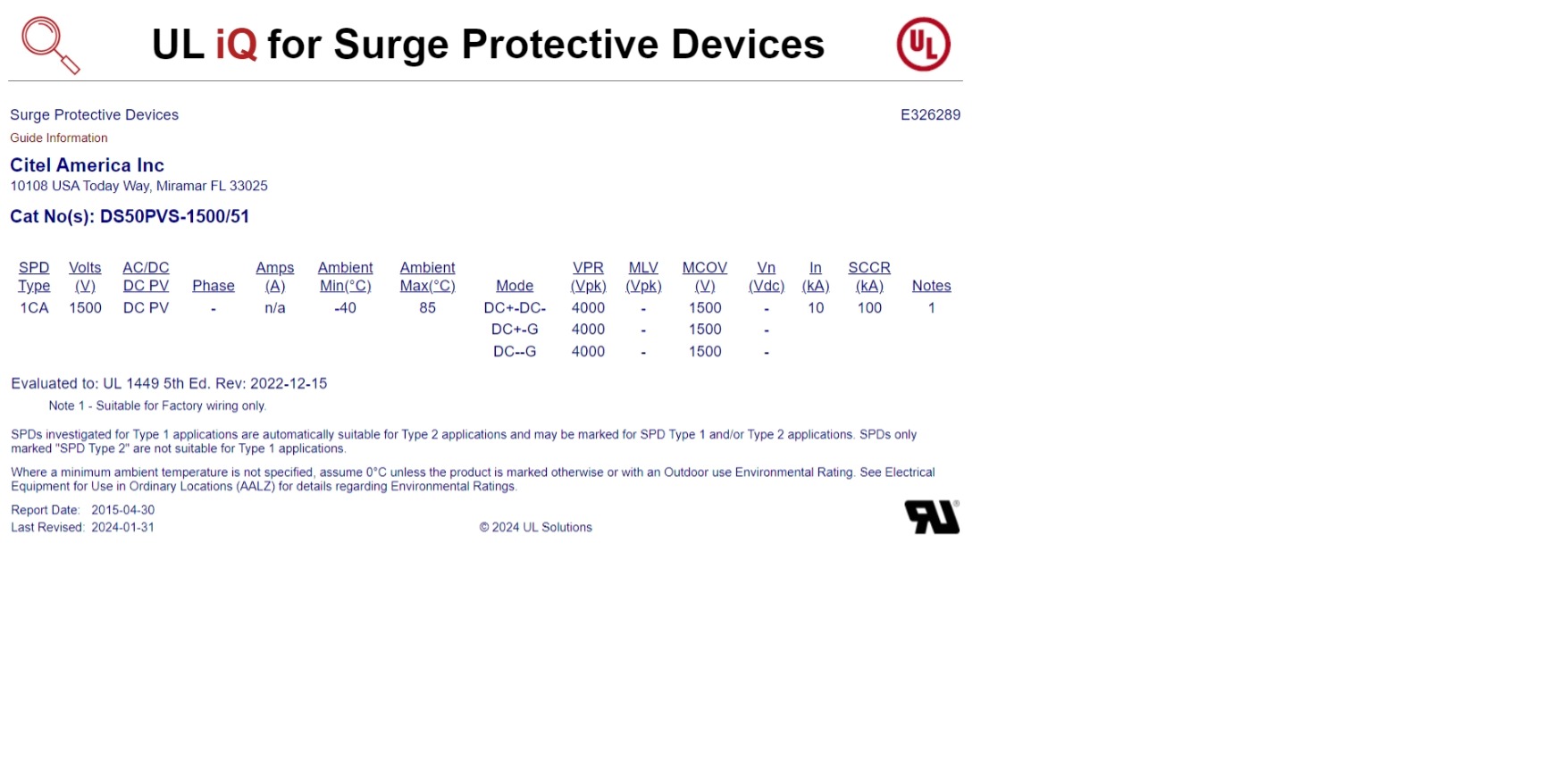

Certification
UL Recognized
UL STANDARD
UL1449 5th Edition
UL FILE NUMBER
E326289
×
