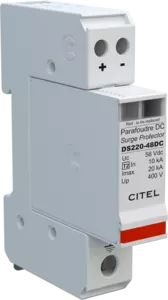

DIN RAIL DC
Part Number: 390402
Certificates
Datasheet
|
Network
|
DC or PV network 48Vdc |
|
|
Max. AC operating voltage
|
Uc | 50 Vac |
|
Max. DC operating voltage
|
Uc | 65 Vdc |
|
Max. load current @25°C
|
IL | 50 A |
|
Max. discharge current
max. withstand @ 8/20 µs by pole
|
Imax | 20 kA |
|
Total Maximum discharge current
max. total withstand @ 8/20 µs
|
Imax Total | 20 kA |
|
Connection mode(s)
|
+/-/PE |
|
|
Protection mode(s)
|
Common mode |
|
Technology
|
MOV |
|
|
Connection to Network
|
By screw terminals: 1.5-10mm² (actives wires) and 2.5-25mm² (ground) |
|
|
Format
|
Plug-in modular box |
|
|
Mounting
|
Symmetrical rail 35 mm (EN 60715) |
|
|
Operating temperature
|
Tu | -40/+85°C |
|
Protection rating
|
IP20 |
|
|
Outdoor application
|
No |
|
|
Failsafe mode
|
Disconnection from DC network |
