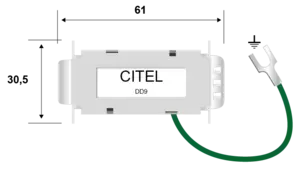

DATA LINE SPD - UL497B - Imax 1kA - In 1kA

DD9-6V
Part Number 6148
DD9-6V
Availability:
$79.00 (excl. tax)
Add to cart

• Data Line Surge Protector for RS Networks • 9, 15 and 25-Pin D-Sub Connectors • Supports Data Rates Up to 40Mbps • Fast and Easy Installation • Ideal for Equipment Level Protection • UL497B Listed

Contact Us
Select another reference:
Network
 RS422, RS423
Max. DC operating voltage
 Uc 6 Vdc
Max. frequency
 f max. > 10 MHz
Max. data rate
 < 40 Mbps
Insertion loss
 < 1 dB
Max. load current
@25°C
 IL 750 mA
Total Maximum discharge current
max. total withstand @ 8/20 µs
Imax Total 20 kA
Protection mode(s)
 Common/Differential mode
Max. capacitance
 C < 30 pF
Impulse current
2 x 10/350µs Test - D1 Category
 Iimp 2.5 kA
Nominal discharge current
C2 Category
 In 5 kA
Nominal Discharge Current, X-C (Line/Earth)
8/20µs Test x 10 - C2 Category
 In L/PE 400 A
Capacitance
@1MHz, X-C (Line/Earth)
 C < 500 pF
DATA SPD TYPE
 UL497B LISTED
VOLTS
 (V) 6
WIRES
 9W+GROUND
LINE CURRENT MAX
 (A) 0.3
AMBIENT MIN
 (C) -50
AMBIENT MAX
 (C) +85
RESIDUAL VOLTAGE
 (V) 20
MCOV
 (V) 8/72/72
IMAX
8/20µs
 (kA) 1
Iimp
10/350µs
 (kA) -
DATA SPEED
 (Mbps) up to 10MHz
Technology
 Diode écrêtage
Connection to Network
 D-Sub 9 pts male/female Input/output
Format
 In/out D-Sub connector unit
Outdoor application
 No
Failsafe mode
 Short-circuit - transmision cut-off - fault mode 2
Pinout
 all wires transmitted and protected
Weight
 0.063 kg
TECHNOLOGY
 SAD
NETWORK CONFIGURATION
 15W+G
CONNECTION METHOD
 9-pin D-Sub connector
MOUNTING
 SURFACE MOUNT
MATERIAL
 Thermoplastic UL94-V0
NEMA RATING (IP RATING)
 NEMA 2 (IP20)
DIMENSIONS
 See diagram
WEIGHT
 0.30 lbs
SPARE PART
 n/a
Certification
 UL 497B
UL STANDARD
 UL497B
UL CATEGORY
 QVGQ
UL FILE NUMBER
 E184939
STANDARDS
 IEC 61643-21
ENVIRONMENTAL STANDARDS
 ROHS
Operating Temperature
Min
 °C -40 °C
Operating Temperature
Max
 °C 85 °C
Operating Temperature
Min
 °F -40 °F
Operating Temperature
Max
 °F 85 °F
Operating Relative Humidity
Max
 %RH 95
Operating Altitude
Min
 Ft 2000 Ft
Operating Altitude
Max
 Ft 6500 Ft
Housing/Enclosure material
 Thermoplastic
Flammability rating
UL 94
 V0
Mounting
 D-Sub connector
IP Environmental rating
IP
 IP20
Installation Location
 Indoor
Accessories
 90° Stainless steel bracket
Product Dimension
L
 mm 61 mm
Product Dimension
W
 mm 30.5 mm
Product Dimension
L
 In 2.4 In
Product Dimension
W
 In 1.2 In
Cable type
 Serial cable
Individual Pack
 Yes
Storage Temperature
Min
 °C -40 °C
Storage Temperature
Max
 °C 85 °C
Storage Temperature
Min
 °F -40 °F
Storage Temperature
Max
 °F 85 °F
Storage Relative Humidity
Max
 %RH 95 %RH
Waranty
 10 Years
