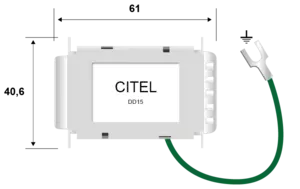

D-SUB DATA LINE SPD - UL497B
Part Number: 6214
DD15-24V
• Data Line Surge Protector for RS Networks • 9, 15 and 25-Pin D-Sub Connectors • Supports Data Rates Up to 40Mbps • Fast and Easy Installation • Ideal for Equipment Level Protection • UL497B Listed
Datasheet|
Network
|
RS232, RS485, 4-20mA |
|
|
Nominal line voltage
|
Un | 24 Vdc |
|
Max. DC operating voltage
|
Uc | 40 Vdc |
|
Max. frequency
|
f max. | > 10 MHz |
|
Max. data rate
|
< 40 Mbps |
|
|
Insertion loss
|
< 1 dB |
|
|
Max. load current @25°C
|
IL | 750 mA |
|
Nominal Discharge Current
C2 (1.2/50us / 8/20µs), 10 applications, X-X (Line/Line)
|
In | 300 A |
|
Nominal Discharge Current, X-C (Line/Earth)
8/20µs Test x 10 - C2 Category
|
In L/PE | 300 A |
|
Protection Level
C3 (10/1000μs), 300 applications@10 A, Y-Y (Line/Line)
|
Up | 65 V |
|
Technology
|
SAD |
|
|
Connection to Network
|
D-Sub 15 pts male/female Input/output |
|
|
Format
|
In/out D-Sub connector unit |
|
|
Mounting
|
On serial cable |
|
|
Operating temperature
|
Tu | -40/+85°C |
|
Protection rating
|
IP20 |
|
|
Outdoor application
|
No |
|
|
Failsafe mode
|
Short-circuit - transmision cut-off - fault mode 2 |
|
|
Pinout
|
all wires transmitted and protected |
|
|
MATERIAL
|
Thermoplastic UL94-V0 |
|
|
DIMENSIONS
|
See diagram |
|
Certification
|
UL Listed |
|
|
Environmental standards
|
EU RoHS |
|
|
UL STANDARD
|
UL497B |
|
|
UL CATEGORY
|
QVGQ |
|
|
UL FILE NUMBER
|
E184939 |
|
|
STANDARDS
|
IEC 61643-21 |
