DATA LINE SPD - UL497B - Imax 20kA - In 5kA
Part Number: 510402
B180-48D3
- Hybrid SAD-GDT Technology
- Common/Differential Mode Protection
- UL497B
- 20kA Imax
- 5kA Imp
- 2.5kA In
Datasheet|
Network
|
ISDN, POTS. 48Vdc Line |
|
|
Nominal line voltage
|
Un | 48 Vdc |
|
Max. DC operating voltage
|
Uc | 53 Vdc |
|
Max. frequency
|
f max. |
|
|
Insertion loss
|
< 1 dB |
|
|
Max. discharge current
max. withstand @ 8/20 µs by pole
|
Imax | 20 kA |
|
Nominal Discharge Current
C2 (1.2/50us / 8/20µs), 10 applications, X-X (Line/Line)
|
In | 5 kA |
|
Protection Level
C3 (10/1000μs), 300 applications@10 A, Y-Y (Line/Line)
|
Up | 70 V |
|
Impulse current
2 x 10/350µs Test - D1 Category
|
Iimp | 2.5 kA |
|
Technology
|
GDT + R + Diode |
|
|
Connection to Network
|
By screw terminal: cross section 0.4-1.5mm² |
|
|
Format
|
Wall mounting box |
|
|
Mounting
|
Wall mounting by screws (not supplied) |
|
|
Operating temperature
|
Tu | -40/+85°C |
|
Protection rating
|
IP20 |
|
|
Failsafe mode
|
Short-circuit - transmision cut-off - fault mode 2 |
|
|
NETWORK CONFIGURATION
|
2W+G |
|
|
MATERIAL
|
Thermoplastic UL94-V0 |
|
|
DIMENSIONS
|

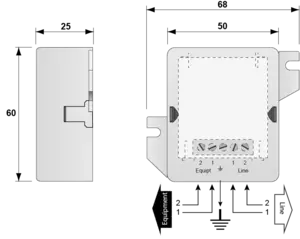

See diagram |
|
Certification
|
UL listed |
|
|
Environmental standards
|
EU RoHS |
|
|
UL STANDARD
|
UL497B |
|
|
UL CATEGORY
|
QVGQ |
|
|
UL FILE NUMBER
|
E184939 |
|
|
STANDARDS
|
IEC 61643-11, NOM-003-SCFI-2014, NOM-001-SCFI-1993 |
