DATALINE
DIN RAIL DATA

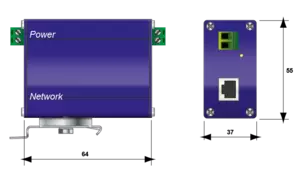

MSP-VM24/RINJ
POE Injector Surge Protector - Imax 10kA - In 5kA
MSP-VM24/RINJ
Part Number:
890192
Combined POE Injector and SPD
Supports 802.3af, 802.3af, 802.3bt
Hybrid SAD-GDT Technology
DIN rail mount with integrated ground connection
Power supply option
Datasheet
Installation Sheet
Tender specifications
Contact Us
Select another reference:
MSP-VM230/R
MSP-VM24/R
MSP-VM24/RINJ
MSP-VM48/RINJ
Electrical Properties
Mechanical Properties
Norms
Schemas
Insertion loss
< 1dB
Max. load current
IL
5 A
Max. load current
IL
300 mA
Protection mode(s)
Common/Differential mode
Nominal discharge current
In
2.5 kA
DATA SPD TYPE
-
VOLTS
(V)
24
AC/DC/DC PV/RF
COMBINED SPD
WIRES
8W+GROUND
LINE CURRENT MAX
(A)
5
AMBIENT MIN
(C)
-40
AMBIENT MAX
(C)
+85
MODES
DC+-DC-,DC+-G,DC--G
IN
(kA)
5
IMAX
(kA)
10
Outdoor application
No
Weight
0.111 kg
TECHNOLOGY
MOV for Power and SAD-GDT for Video, Data
NETWORK CONFIGURATION
2W+G Power, BNC Video, RJ45 Ethernet
CONNECTION METHOD
Screw Terminal (8-12AWG), BNC, RJ45
MOUNTING
DIN RAIL
MATERIAL
Aluminum cast
NEMA RATING (IP RATING)
NEMA 2 (IP20)
FAIL-SAFE BEHAVIOR
Disconnection via fuse-link
REAL-TIME DIAGNOSTICS
Loss of signal
DIMENSIONS
See diagram (mm)
WEIGHT
0.30 lbs
SPARE PART
n/a
Certification
UL listed
UL STANDARD
-
UL CATEGORY
-
UL FILE NUMBER
-
STANDARDS
IEC 61643-11, IEC 61643-21, NOM-003-SCFI-2014, NOM-001-SCFI-1993
ENVIRONMENTAL STANDARDS
ROHS
×
