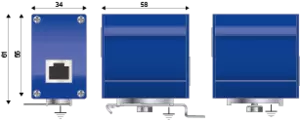

Indoor Cat. 6A 10Gb/s rated POE Surge Protective Device & Mounting Hardware Kit
MJ8-POE-C6A
Part Number 581541
Available within 3 weeks
- POE++ compatible Surge Protector
- Cat. 6A compatible
- Shielded RJ45 connectors
- 16 kA maximum surge discharge capability
- Max Transmission up to 10Gbps
- Max Bandwidth up to 500 MHz
- UL497B
Select another reference:
Network
|
10Gb/s on Cat6A S/FTP cabling | |
Protection modes (network)
|
CM / DM | |
Protection modes (POE)
|
CM / DM (common mode / differential mode) | |
Transmission standard
|
IEEE 802.3bt | |
Max. DC operating voltage
|
Uc | 8 Vdc |
Max. operating voltage (POE)
|
Uc | 60 Vdc |
Max. frequency
|
f max. | 500 MHz |
Max. data rate
|
10 Gbps | |
Max. load current @25°C
|
IL | 2 A |
Max. POE power (4PPOE)
|
90 W | |
Max. discharge current
max. withstand @ 8/20 µs, X-C (Line/Earth)
|
Imax | 2 kA |
Protection Level
C3 (10/1000μs), 300 applications@10 A, X-X (Line/Line)
|
Up | 70 V |
Protection level
C3 (10/1000μs), 300 applications@10 A, X-C (Line/Earth)
|
Up | 500 V |
Protection Level
C3 (10/1000µs), 300 applications @ 10A, (Pair-Pair, POE)
|
Up | 80 V |
Impulse current
D1 (10/350μs), 2 applications, X-C (Line/Earth)
|
Iimp | 400 A |
Nominal discharge current
C1 (1.2/50us / 8/20µs), 300 applications X-X (Line/Line)
|
In | 1kV / 500A |
Nominal discharge current
C2 (1.2/50us / 8/20µs), 10 applications X-C (Line/Earth)
|
In | 4 kV / 2 kA |
Line resistance (± 10%)
|
~ 0 ohms | |
Capacitance
@1MHz, X-C (Line/Earth)
|
C | < 5 pF |
NOMINAL DC LINE VOLTAGE
|
Vdc | 48 |
MAX. DC LINE VOLTAGE
|
Vdc | 60 |
WIRES
|
8W+Shield+Ground | |
LINE CURRENT MAX
|
(A) | 2 |
POWER RATING
|
(W) | 100 |
AMBIENT MIN
|
(C) | -40 |
AMBIENT MAX
|
(C) | +85 |
PROTECTION LEVEL
|
(V) | 70 |
IMAX
8/20µs
|
(kA) | 16 |
MAX. DATA RATE
|
Gbps | 10 |
MAX. FREQUENCY
|
Mhz | 500 |
Technology
|
GDT+TVS diode | |
Connection to Network
|
RJ45 shielded connectors Female input/output | |
Cable glands
|
N/A | |
Format
|
Metallic box with connectors input/output | |
Accessory(s) provided
|
Screw, washer, cable shoe, earthing plate, DIN rail adapter | |
Failsafe mode
|
Transmission cut-off - Fault mode 2 (short-circuit) | |
Pinout
|
(1-2)(3-6)(4-5)(7-8) | |
Weight
|
0.12 kg / 0.26 lbs | |
TECHNOLOGY
|
SAD-GDT | |
NETWORK CONFIGURATION
|
Single POE Line | |
CONNECTOR TYPE
|
Shielded RJ45 | |
PIN OUT
|
[1-2][3-6][4-5][7-8] | |
NEMA RATING (IP RATING)
|
NEMA 2 (IP20) | |
DIMENSIONS
|
See diagram |
UL File Number
|
E184939 | |
Certification
|
UL 497B | |
UL STANDARD
|
UL497B | |
UL CATEGORY
|
QVGQ | |
UL FILE NUMBER
|
E184939 | |
STANDARDS
|
NOM-003-SCFI-2014, NOM-001-SCFI-1993 | |
ENVIRONMENTAL STANDARDS
|
ROHS |
