UL497B LISTED - Imax 20kA - In 5kA - Modular

DLAWS1-24D3
Part Number: 6419031
DLAWS1-24D3
Availability:
$82.00 (excl. tax)
Add to cart
  • Hybrid SAD-GDT Technology
  • UL497B LISTED
  • 20kA Imax (1x 8/20us)
  • 5kA Imp (2x 10/350us)
  • 5kA In (10x 8/20us)
  • Modular with Visual Fault Indicator
  • Spring & Screw Terminal versions
  • Circuit disconnection with Module removal
  • Common/Differential Mode Protection
Contact Us
Select another reference:
Network

4-20mA, Liaison 24V
Nominal line voltage
 Un

24 V
Max. DC operating voltage
 Uc

28 Vdc
Max. frequency
 f max.

3 MHz
Insertion loss

< 1 dB
Max. load current @25°C
 IL

300 mA
Max. discharge current
max. withstand @ 8/20 µs by pole
 Imax

20 kA
Nominal discharge current
C2 Category
 In

5 kA
Nominal Discharge Current, X-C (Line/Earth)
8/20µs Test x 10 - C2 Category
 In L/PE

5 kA
Protection Level
C3 (10/1000μs), 300 applications@10 A, Y-Y (Line/Line)
 Up

40 V
Protection Level
C3 (10/1000μs), 300 applications@10 A, Y-C (Line/Earth)
 Up

40 V
Impulse current
D1 (10/350μs), 2 applications, X-C (Line/Earth)
 Iimp

5 kA
Line resistance (± 10%)

4.7 Ohm
Technology

GDT+Clamping diode+PTC (thermal resistor) + Resistor
Connection to Network

By screw terminal: cross section 0.5-2.5mm²
Format

Plug-in DIN box
Mounting

Symmetrical rail 35 mm (EN 60715)
Operating temperature
 Tu

-40/+85°C
Protection rating

IP20
Failsafe mode

Opening line - transmision cut-off - fault mode 2
NETWORK CONFIGURATION

1 pair
MATERIAL

Thermoplastic UL94-V0
DIMENSIONS

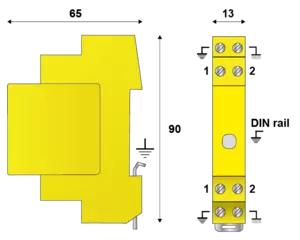

See diagram
SPARE PART

DLASM-24D3
Certification

UL Listed
Environmental standards

EU RoHS
UL STANDARD

UL497B
UL CATEGORY

QVGQ
UL FILE NUMBER

E184939
STANDARDS

IEC 61643-11, NOM-003-SCFI-2014, NOM-001-SCFI-1993
