SQUARE D: SSP030SLACSE39
Comparison
CITEL CAD2-120S-224-A
Surge Protective Device (SPD)
Hybrid Solution

CITEL CAD2-120S-224-A
Surge Protector
Hybrid Solution

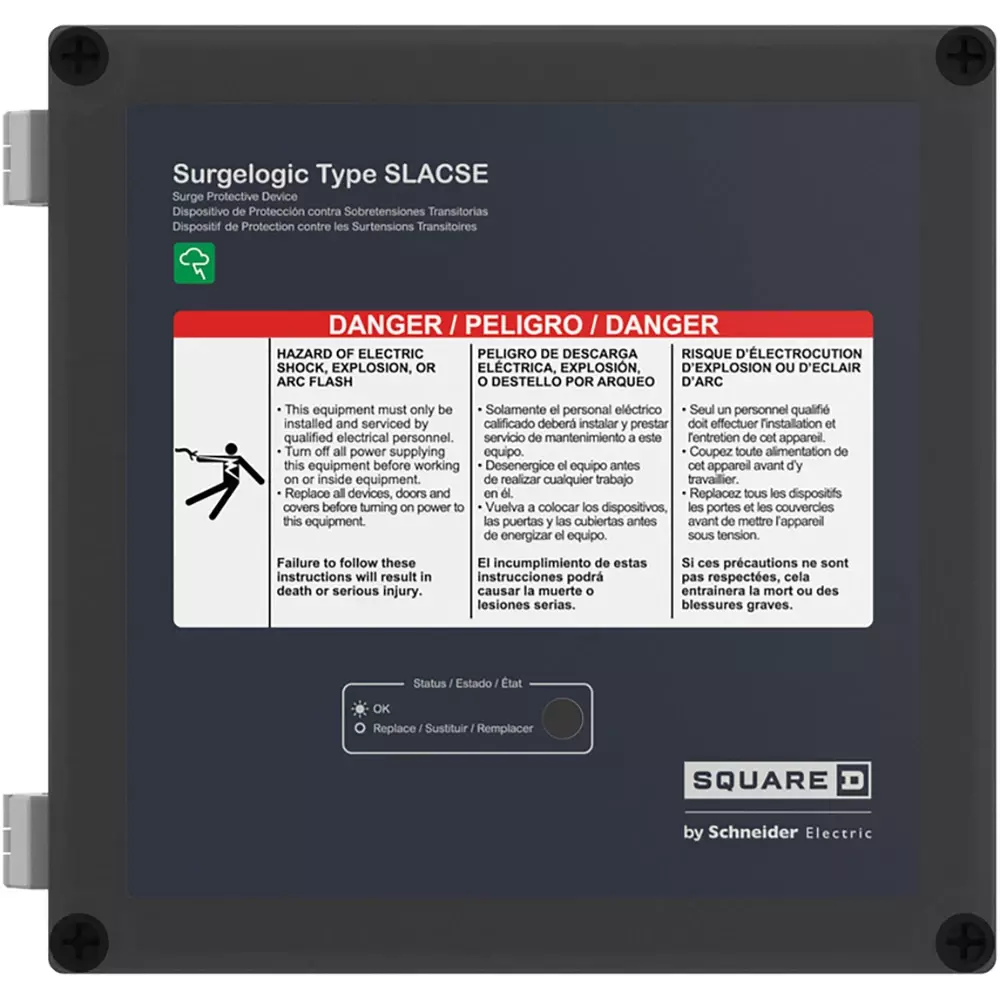

SQUARE D: SSP030SLACSE39
Surge Protector

Intended Application System

AC
System Voltage120Vac
Number of Phases1
Conductors2W+G
Configuration1S

Intended Application System

Data Line
System Voltage24Vdc
Number of Wires2
Conductors2W+Shield+G
Configuration1 Channel

PRODUCT COMPARISON TABLE

This page collects publicly available data from ul.com and assembles a side by side reference table for a convenient product cross reference.

Brand Citel Logo
ManufacturerCITEL AMERICA INCSCHNEIDER ELECTRIC
UL File #E326289E324279
Model
CAD2-120S-224-A


SSP030SLACSE39

Product Image

UL.com Ratings


UL CARD


UL CARD

UL MARK
SPD TypeUL1449 5TH ED. TYPE 1UL 1449 5TH ED. TYPE 2
AC/DC
DC PV
ACAC
Volt (V)120120
Phase11
Amps (A)n/a-
Ambient Min (C)-35-
Ambient Max (C)+6025
Mode
L-N
L-G
N-G
L-N
L-G
N-G
VPR (Vpk)
L-N
L-G
N-G
1200
800
700
400
400
500
MCOV
L-N
L-G
N-G
300
150
150
150
150
150
In (kA)203
SCCR (kA)1005

Additional
Data Sheet Ratings

Hybrid Solution

SPD TypeACAC
Surge Current
Rating (kA)
7539
Protection CircuitTMOV+GSG-
Leakage CurrentNo-
TOV OptimizedYes-
DiagnosticsIndicator &
Remote Contact
-
Environmental
Rating
IP20-
# of Wires--
Modes of ProtectionCommon Mode
Differential Mode
-
SPD TypeDATADATA
Surge Current
Rating (kA)
2010
Protection CircuitSAD-GDTGDT/PTC/SAD
Leakage CurrentNo-
Environmental
Rating
IP20-
# of Wires2-
Modes of ProtectionCommon Mode
Differential Mode
-
Warranty10-years-
Notes
none

Determining the acceptability of an SPD for your UL equipment

(for UL 508A Control Panels and All Other UL Listed Equipment)

The UL inspector will first consider the SPD type when determining it’s acceptability for a given application or piece of equipment. This will include UL 508A as well as all other UL Listed equipment. The first level compliance is based on the UL Approval (LISTED or RECOGNIZED) of the SPD or UL SPD Type and it’s Suitable Ratings. This means that it has to meet all safety, performance, environmental and electrical system ratings of the application. If any of these criteria are not fully met, it will require a Procedure Description, a File Update and/or Additional Testing. These actions will require additional costs that may be substantial. For this reason, it is in the interest of the specifier to use UL LISTED SPD’s to eliminate any uncertainty or to make sure the UL RECOGNIZED SPD is selected at the time of UL submittal of the equipment.

Approval Considerations Table based on UL SPD Type

UL
Mark
UL1449
SPD Type
Suitable
Ratings
Procedure
Described
File
Update or
Additional
Testing
Notes
1

2
YesNoNoThe only requirement is that the SPD must match electrical and environmental ratings of the UL 508A Control Panel.

A UL field inspection of the control panel with the SPD installed is required as a part of a standard follow-up service visit.
1CA

2CA

4CA

5
YesYesYesYes – All UL recognized SPD’s require a UL engineering evaluation of the SPD’s existing UL1449 E–file.

This will result, at a minimum, in a cost to update the UL file and may also require testing that would result in additional costs.
UL data is publicly available with a free account at UL.com. The data has been reviewed by our engineering department. From time to time, the applicants UL file (including CITEL's) may become changed or updated at UL.com due to new testing or corrections to a report. At the time of this comparison you will find this information to be accurate to the UL web site. If you find any information requires an update, please bring to our attention and it will be updated immediately.
