Best 1500V Surge Protectors for Solar Applications
Solar Power Installation with SPD

PRODUCT COMPARISON

This page collects publicly available data from ul.com and manufacturers web sites then assembles a side by side reference table for convenient product comparisons.
Brand Citel Logo abb Dehn phoenix-contact
ManufacturerCITELABBDehnPhoenix Contact
UL File #E326289E316468E360120E330181
ModelDS50PVS-1500/51
[Buy]
OVR PV
T2 40-1500 P TS


952567
DG M YPV 1500 FM


VAL-MS
1500DC-PV/2+V-FM

Product Image DS50PVS150051 ABB_OVR-PV-T2-40-1500P Dehn_952567_DG-M-YPV-1500-FM Phoenix-Contact_VAL-MS1500DC-PV2+V-FM

UL.com Ratings
SPD Type11CA1CA1CA
UL Mark cULus cURus cURus cURus
Volt (V)1500150015001500
AC/DC
DC PV
DC		DC PVDC PVDC PVDC PV
Phase----
Amps (A)n/an/an/an/a
Ambient Min (C)-40-40-40-40
Ambient Max (C)75858585
Mode
DC+-DC-
DC+-G
DC--G		DC+-DC-
DC+-G
DC--G		DC+-DC-
DC+-G
DC--G		DC+-DC-
DC+-G
DC--G		DC+-DC-
DC+-G
DC--G
VPR (Vpk)
DC+-DC-
DC+-G
DC--G		4000
4000
4000		4000
4000
4000		4000
4000
4000		4000
4000
4000
MCOV
DC+-DC-
DC+-G
DC--G		1500
1500
1500		1500
1500
1500		1500
1500
1500		1500
1500
1500
In (kA)10101010
SCCR (kA)50101050

Additional
Data Sheet Ratings
Surge Current
Rating (kA)		40404030
Protection CircuitTMOVTMOVTMOVTMOV

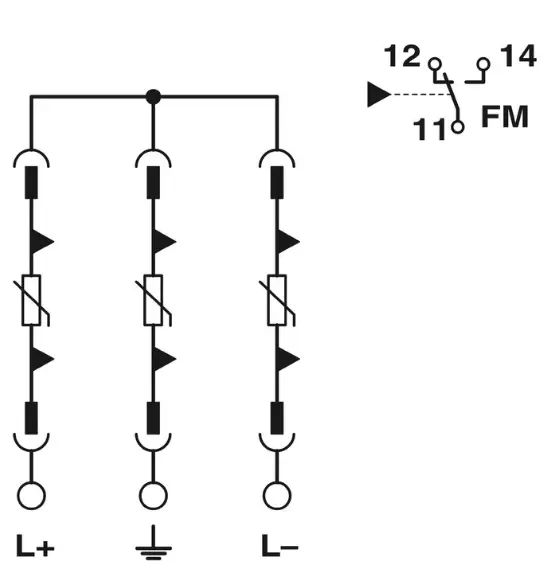

Circuit Diagram DS50PVS-1500-51_elec ABB_OVR-PV-T2-40-1500P_CIRCUIT-DIAGRAM Dehn_952567_DG-M-YPV-1500-FM_CIRCUIT-DIAGRAM Phoenix-Contact_VAL-MS1500DC-PV2+V-FM_CIRCUIT-DIAGRAM
Leakage CurrentYesYesYesYes
TOV OptimizedNoNoNoNo
DiagnosticsVisual Indicator
Remote Alarm		Visual Indicator
Remote Alarm		Visual Indicator
Remote Alarm		Visual Indicator
Remote Alarm
Environmental
Rating		IP20IP20IP20IP20
Warranty10-years12 months
after installation
18 months
after shipment		5-yearsLimited Lifetime
"UL.com Ratings" data is publicly available with a free account at UL.com. The "Additional Data Sheet Ratings" are available for free on the manufacturers web site or by submitting a request directly. All the data has been reviewed by our engineering department. From time to time, the applicants UL file (including CITEL's) may become changed or updated at UL.com due to new testing or corrections to a report. In addition, manufacturers may change the data on their web sites. At the time of this comparison you will find this information to be accurate to the UL web site as well as the manufacturers publicly available data. If you find any information requires an update, please bring to our attention and it will be updated immediately.

Determining the acceptability of an SPD
for UL 1449 Surge Protective Devices and All Other UL Listed Equipment

The UL inspector will first consider the SPD type when determining it’s acceptability for a given application or piece of equipment. This will include UL1449 as well as all other UL Listed equipment. The first level compliance is based on the UL Approval (LISTED or RECOGNIZED) of the SPD or UL SPD Type and it’s Suitable Ratings. This means that it has to meet all safety, performance, environmental and electrical system ratings of the application. If any of these criteria are not fully met, it will require a Procedure Description, a File Update and/or Additional Testing. These actions will require additional costs that may be substantial. For this reason, it is in the interest of the specifier to use UL LISTED SPD’s to eliminate any uncertainty or to make sure the UL RECOGNIZED SPD is selected at the time of UL submittal of the equipment.

Approval Considerations Table based on UL SPD Type

UL
Mark		UL1449
SPD Type		Suitable
Ratings		Procedure
Described		File
Update or
Additional
Testing		Notes
1

2		YesNoNoThe only requirement is that the SPD must match electrical and environmental ratings of the UL 67 Control Panel.

A UL field inspection of the control panel with the SPD installed is required as a part of a standard follow-up service visit.
1CA

2CA

4CA

5		YesYesYesYes – All UL recognized SPD’s require a UL engineering evaluation of the SPD’s existing UL1449 E–file.

This will result, at a minimum, in a cost to update the UL file and may also require testing that would result in additional costs.
# What are Critical Operations Power Systems (COPS)

As stated by Article 708, Critical Operations Power Systems can be classed by municipal, state, federal, or other codes by any governmental agency having jurisdiction or by facility engineering documentation establishing the necessity for such a system. These systems include but are not limited to power systems, HVAC, fire alarm, security, communications, and signaling for designated critical operations areas.

NEC-2020
NEC 2020, NFPA 70.
