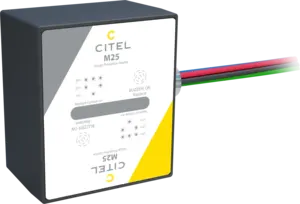

UL TYPE 1 SPD - Imax 25kA - In 20kA - AC Panel Mount

M25-120T-A
Part Number: 751205
M25-120T-A
  • Hybrid Technology
  • UL1449 5th Ed. Type 1 LISTED
  • 25kA Surge Current Rating per phase
  • Imax total 50kA
  • Visual LED fault indicator
  • NEMA 6 (exceeds NEMA 4X or 4)
  • 10-Year warranty
Contact Us
Select another reference:
POWER SPD TYPE

UL1449 TYPE 1 LISTED
VOLTS
 (V)

240/120
AC/DC/DC PV/RF

AC
PHASE
 (PH)

1S
AMPS
 (A)

N/A
AMBIENT MIN
 (C)

-35
AMBIENT MAX
 (C)

+80
MODES

L-L, L-G
VPR
 (V)

1200/-/1200/-
MCOV
 (V)

280/-/140/-
IN
15 impulses 8/20µs
 (kA)

20
SCCR
 (kA)

150
IMAX
8/20µs
 (kA)

25
TECHNOLOGY

MOV-GSG
NETWORK CONFIGURATION

1PH, 2W+G, Split Phase
CONNECTION METHOD

36" #12 AWG LEADS
MOUNTING

SIDE MOUNT, THREADED M22 or 1/2" NPT ADAPTER
MATERIAL

Aluminum cast
NEMA RATING (IP RATING)

6 (IP66)
FAIL-SAFE BEHAVIOR

Yes, no upstream over current protection required
REAL-TIME DIAGNOSTICS

LED Indicator

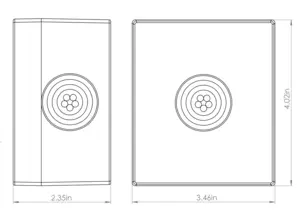

DIMENSIONS

See diagram
WEIGHT

2.5 lbs.
Certification

UL Listed
Environmental standards

EU RoHS
UL STANDARD

UL1449 5th Edition
UL CATEGORY

VZCA
UL FILE NUMBER

E326289
STANDARDS

NOM-003-SCFI-2014, NOM-001-SCFI-1993
