SolaHD STFE200-10N Alternate DS240S-120/G

Citel Logo


CITEL DS240S-120/G Surge Protector	SolaHD STFE200-10N Surge Protector
Intended Application System
System Voltage	120Vac
Number of Phases	1-Phase
Conductors	2 Wire + Ground
Configuration	Single Phase

PRODUCT COMPARISON

This page collects publicly available data from ul.com and assembles a side by side reference table for a convenient product cross reference.

Manufacturer		Appleton Group
UL File #	E326289	E335146
Model	DS240S-120/G	STFE200-10N

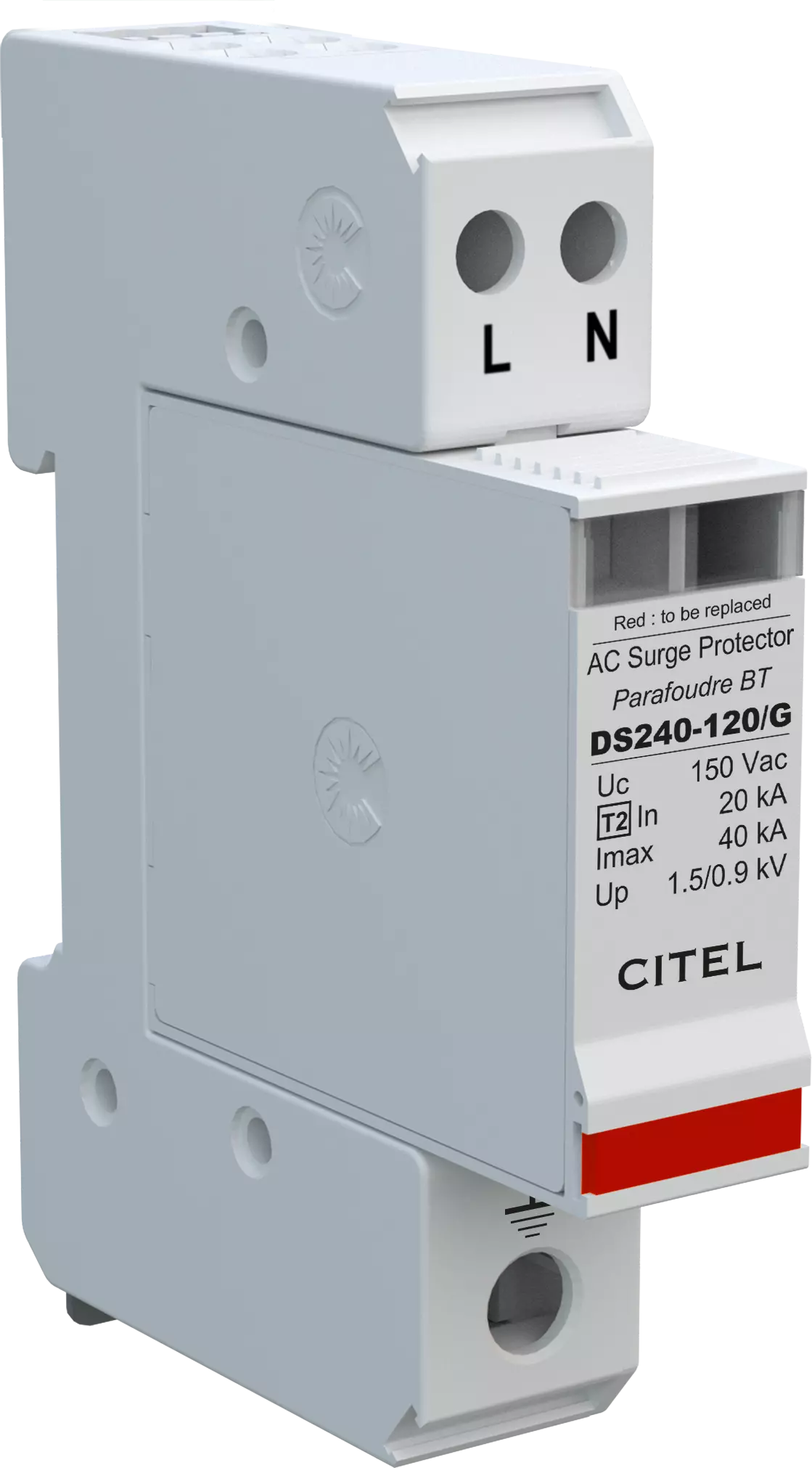

Product Image
UL.com Ratings	UL CARD	UL CARD
UL APPROVAL	RECOGNIZED	RECOGNIZED
UL MARK
SPD Type	4CA(5)	2CA(4-2)
Volt (V)	240/120	120
AC/DC DC PV	AC	AC
Phase	1S	1
Amps (A)	n/a	20
Ambient Min (C)	-35	-40
Ambient Max (C)	60	25
Mode
	- L-N L-G N-G	- L-N L-G N-G
VPR (Vpk)
L-L L-N L-G N-G	- - - -	- 400 500 500
MLV (Vpk)
L-L L-N L-G N-G	- 1460 1890 1340	- - - -
MCOV
L-L L-N L-G N-G	- 150 150 255	- 150 150 150
In (kA)	20	3
SCCR (kA)	-	5
Additional Data Sheet Ratings
Surge Current Rating (kA)	40	19.5
Protection Circuit	Hybrid TMOV+GSG	MOV
Leakage Current	No	Yes
TOV Optimized	Yes	No
Diagnostics	Indicator & Remote Contacts	LED & Remote Contacts
Environmental Rating	IP20	IP20
# of Wires	-	-
Modes of Protection	Common Mode Differential Mode	Common Mode Differential Mode
Warranty	10-years	5-years

Notes
-

UL data is publicly available with a free account at UL.com. The data has been reviewed by our engineering department. From time to time, the applicants UL file (including CITEL's) may become changed or updated at UL.com due to new testing or corrections to a report. At the time of this comparison you will find this information to be accurate to the UL web site. If you find any information requires an update, please bring to our attention and it will be updated immediately.
