PQ Protection PQCF320 Series Comparison CITEL MS200 SERIES Surge Protective Device (SPD)
|
|
|---|---|
Intended Application System | |
System Voltage | 120-600 Vac, Split-Phase, WYE, and Delta |
Configuration | 1S, 3Y, 3H, 3D |
Features | NEMA 4 Metal Enclosure, 3/4" NPT, Smart Diagnostics, (% Remaining Surge Capacity, Alarm, LED/Phase, Surge Counter, and Remote Contacts), UL 1283 EMI Filter |
Product Comparison Table
This page collects publicly available data from ul.com and assembles a side by side reference table for a convenient product cross reference.
Manufacturer |
|
|
|---|---|---|
UL File # | E326289 | E335441 |
Model | ||

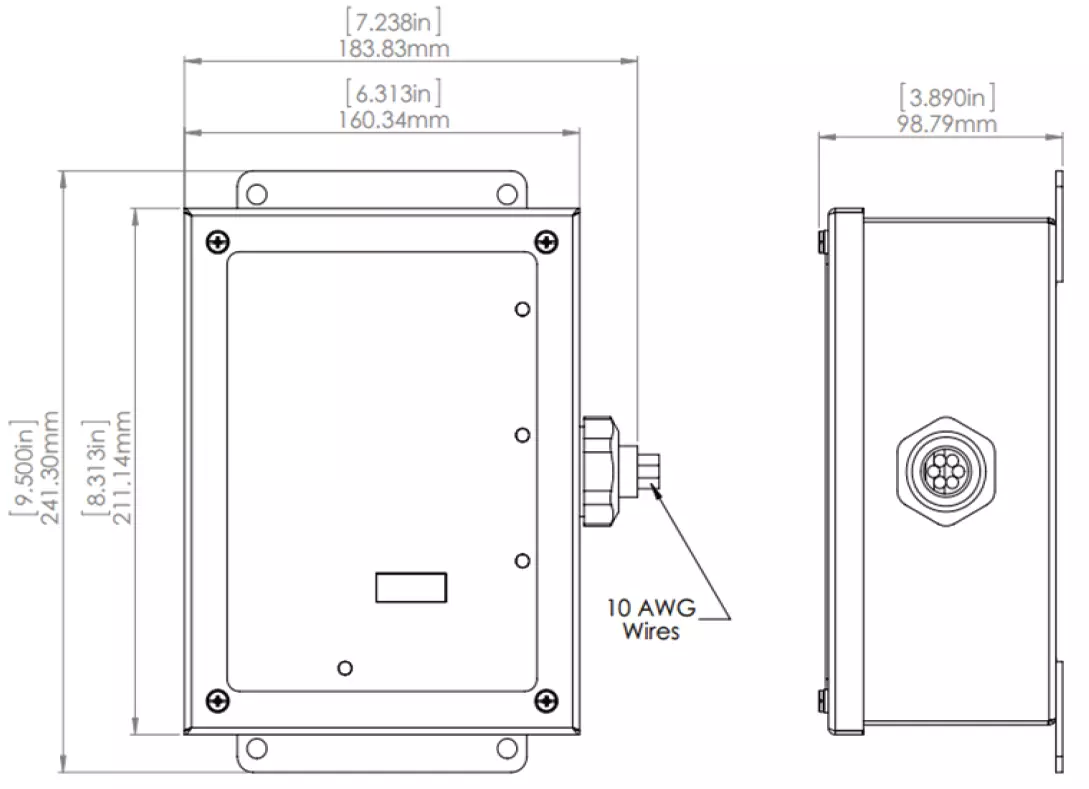

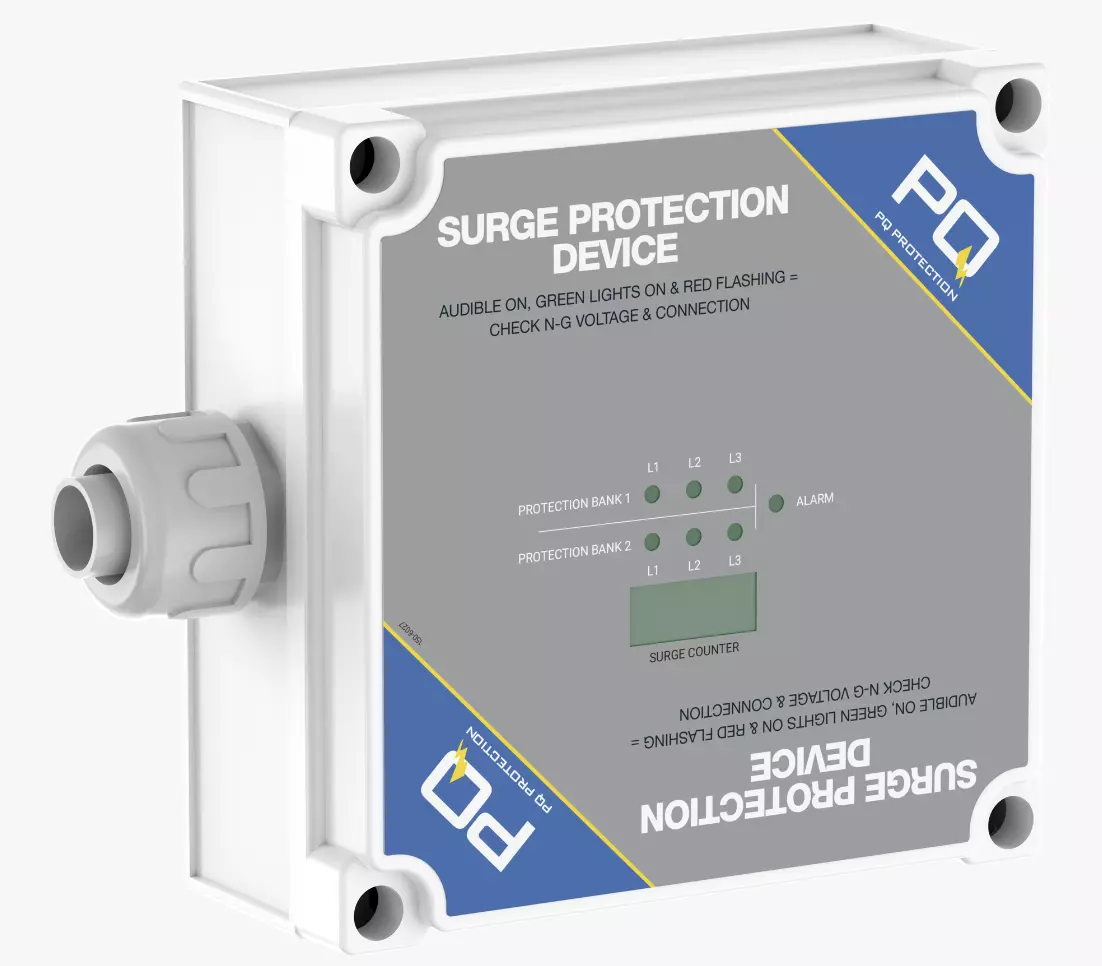

Product Image |
|
|
UL.com Ratings | ||
UL Approval | LISTED | LISTED |
UL Mark |
|
|
SPD Type | 1 & 2 | 2 |
Volt (V) | 277/480 | 277/480 |
AC/DC/DC PV | AC | AC |
Phase | 3Y | 3Y |
Amps (A) | n/a | n/a |
Ambient Min (C) | -35 | -40 |
Ambient Max (C) | 85 | 85 |
Mode | ||
VPR (Vpk) L-L L-N L-G N-G | 1800 1000 1200 1000 | 2000 1200 1200 1000 |
MCOV L-L L-N L-G N-G | 640 320 320 320 | 700 350 350 350 |
In (kA) | 20 | 20 |
SCCR (kA) | 200 | 200 |
Additional Data Sheet Ratings | ||
Surge Current Rating (kA) | 440 | 320 |
Protection Circuit | TMOV | TMOV |
Diagnostics | Smart Diagnostics (% Remaining Surge Capacity, LED/Phase, Audible Alarm) Optional (Surge Counter, UL 1283 EMI Filter), & Remote Contacts | LED/Phase, Audible Alarm, UL 1283 EMI Filter, Optional (Surge Counter), & Remote Contacts |
Environmental Rating | Metal NEMA 4 | Polycarbonate NEMA 4X |
Warranty | 10-years | 10-years |
Determining the acceptability of an SPD for UL 508A Control Panels and All Other UL Listed Equipment
The UL inspector will first consider the SPD type when determining it’s acceptability for a given application or piece of equipment. This will include UL 508A as well as all other UL Listed equipment. The first level compliance is based on the UL Approval (LISTED or RECOGNIZED) of the SPD or UL SPD Type and it’s Suitable Ratings. This means that it has to meet all safety, performance, environmental and electrical system ratings of the application. If any of these criteria are not fully met, it will require a Procedure Description, a File Update and/or Additional Testing. These actions will require additional costs that may be substantial. For this reason, it is in the interest of the specifier to use UL LISTED SPD’s to eliminate any uncertainty or to make sure the UL RECOGNIZED SPD is selected at the time of UL submittal of the equipment.
Approval Considerations Table based on UL SPD Type
UL Mark | UL 1449 SPD Type | Suitable Ratings | Procedure Described | File Update or Additional Testing | Notes |
|---|---|---|---|---|---|
| 1 2 | Yes | No | No | The only requirement is that the SPD must match electrical and environmental ratings of the UL 508A Control Panel. A UL field inspection of the control panel with the SPD installed is required as a part of a standard follow-up service visit. |
| 1CA 2CA 4CA 5 | Yes | Yes | Yes | Yes – All UL recognized SPD’s require a UL engineering evaluation of the SPD’s existing UL 1449 E–file. This will result, at a minimum, in a cost to update the UL file and may also require testing that would result in additional costs. |
UL data is publicly available with a free account at UL.com. The data has been reviewed by our engineering department. From time to time, the applicants UL file (including CITEL's) may become changed or updated at UL.com due to new testing or corrections to a report. At the time of this comparison you will find this information to be accurate to the UL web site. If you find any information requires an update, please bring to our attention and it will be updated immediately. |
Latest Revision - 7.24.2026
