POLYPHASER IS 50NX-C2-MA
Comparison CITEL P8AX50-N-MF
Surge Protective Device (SPD)
|
|
|
CITEL | POLYPHASER |
Intended Application System | |
| System | RF Coaxial |
| Conductors | 1W+Shield+Ground |
| Connector | Shielded Coaxial |
| Configuration | Single Coaxial |
PRODUCT COMPARISON TABLE
This page collects publicly available data from ul.com and assembles a side by side reference table for a convenient product cross reference.
| Manufacturer |
|
|
| UL File # | E184939 | E518677 |
| Model | P8AX50-N-MF | IS 50NX-C2-MA |

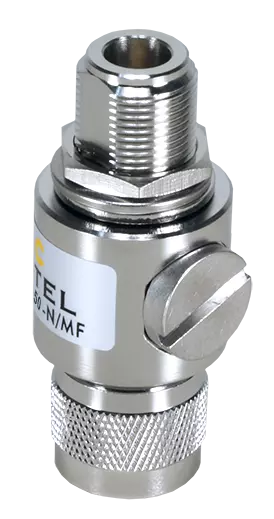

| Product Image |
|
|
UL.com Ratings | UL CARD | UL CARD |
| UL APPROVAL | LISTED | LISTED |
| UL MARK |  | |
| SPD Type | UL497E | UL497E |
| Frequency Range | 0 – 3.5GHz | 125MHz – 1000MHz |
| Insertion Loss | ≤ 0.09 dB | ≤ 0.10 dB |
| Return Loss @ 90Mhz | 24 dB | 24 dB |
| Return Loss @ 400Mhz | 24 dB | 46 dB |
| Return Loss @ 850Mhz | 24 dB | 37 dB |
| VSWR @ 90Mhz | 1.2:1 | 1.13:1 |
| VSWR @ 400Mhz | 1.2:1 | 1.01:1 |
| VSWR @ 850Mhz | 1.2:1 | 1.02:1 |
| Connector Type | N-Type | N-Type |
| Connector Gender | Male-Female | Male-Female |
| Impedance | 50 ohm | 50 ohm |
| Protection Circuit | GDT | 2 Series GDT +Capacitor |
| DC Circuit | DC PASS | DC Block |
| Line Voltage | up to 48Vdc | None |
| Line Current | 10 Amps | None |
| Imax (kA) 8/20us x 1 | 20 | 50 |
| Protection Level @ 2.7kV | - | 2,140 V |
| DC Turn-on Voltage | 500 Vdc +/-20% | 600 Vdc +/-20% |
| Maximum Power (Watts) 220-700MHz | 780 W | 125 W |
| NEMA Rating IP Rating | IP67 | IP20 |
| Installation Location | Indoor or Outdoor | Indoor |
| Ambient Min (C) Operating | -40 | -50 |
| Ambient Max (C) Operating | 85 | 50 |
| Grounding | M6 Screw, Bulkhead, Bracket | Flange |
| Mounting | Bulkhead, Bracket | Flange |
| Environmental Rating | ROHS | ROHS |
| Warranty | 10-years | 10 Year Limited Warranty |
UL data is publicly available with a free account at UL.com. The data has been reviewed by our engineering department. From time to time, the applicants UL file (including CITEL's) may become changed or updated at UL.com due to new testing or corrections to a report. At the time of this comparison you will find this information to be accurate to the UL web site. If you find any information requires an update, please bring to our attention and it will be updated immediately. |
|
| |
|---|---|
