Overview of CITEL Surface Mount Data Line Surge Protective Devices

TSP Range Summary
Protects 24Vdc & 48Vdc transmitters from induced surges on field bus wiring. Conduit and Direct Transmitter mounting options are available in series and parallel configurations

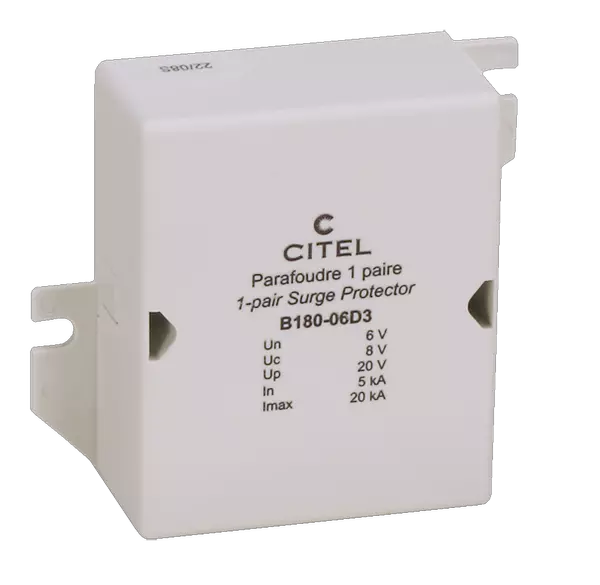

B180 Range Summary
1-Pair Protection, GDT-SAD Technology, 2-Wire+ Shield+ Ground, Available in 6V, 12V, 24V and 170V versions, Screw terminals, Imax 5kA 8/20µs • UL497B Listed

B280 Range Summary
2-Pair Protection, GDT-SAD Technology, 2-Wire+ Shield+ Ground, Available in 6V, 12V, 24V and 170V versions, Screw terminals, Imax 5kA 8/20µs • UL497B Listed

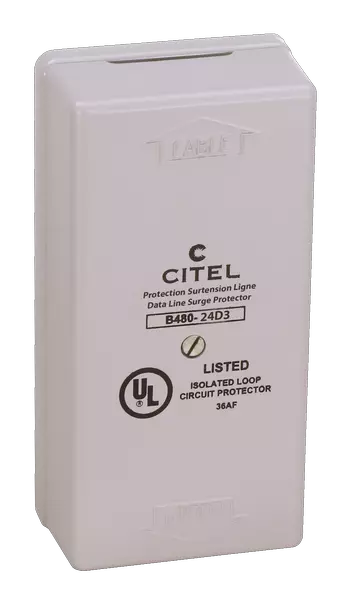

B480 Range Summary
4-Pair Protection, GDT-SAD Technology, 2-Wire+ Shield+ Ground, Available in 6V, 12V, 24V and 170V versions, Screw terminals, Imax 5kA 8/20µs • UL497B Listed

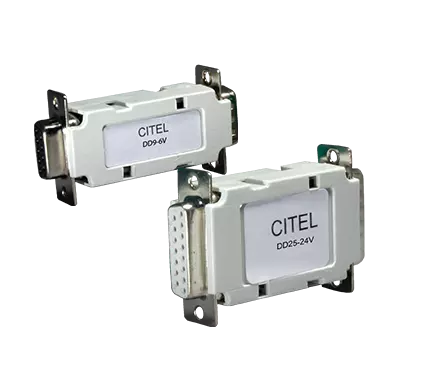

DD Range Summary
Data Line Surge Protector for RS Networks 9, 15 and 25-Pin D-Sub Connectors. Supports Data Rates Up to 40Mbps. Fast and Easy Installation and ideal for Equipment Level Protection • UL497B Listed

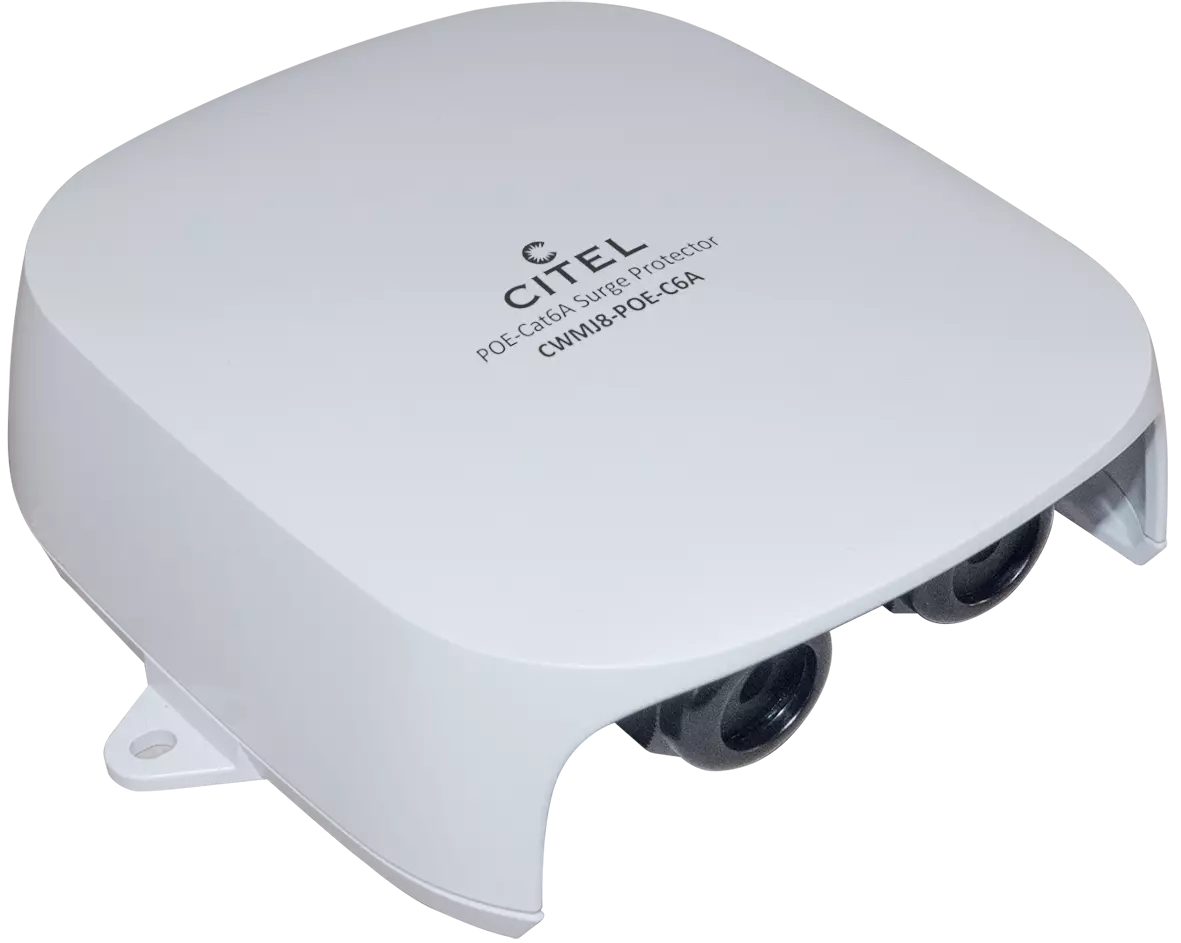

CxMJ8 Range Summary
Outdoor rated Gigabit POE Surge Protective Devices. Conforms to IEEE 802.3af 802.3at, 802.3bt up to 10Gbps. NEMA(IP Ratings): 6 (IP66) • UL497B Listed

FOR MORE INFORMATION
Regarding CITEL Dataline Surge Protective devices, go to www.CITEL.US and click on DATALINE. Product information can be found under DIN RAIL DATA. Please contact Inside Sales if you have questions.
