EATON MTL TP48
Comparison CITEL TSP15M-P-48D3
Surge Protective Device (SPD)
|
|
|
|
|
|
TSP15M-P-48D3 | TP48 |
Intended Application System | |
| System | Electronic Process Transmitter |
| Conductors | 4W+G |
PRODUCT COMPARISON TABLE
This page collects publicly available data from ul.com and assembles a side by side reference table for a convenient product cross reference.
| Manufacturer |
|
|
| UL File # | - | - |
| Model | TSP15M-P-48D3 | EATON MTL TP48 |

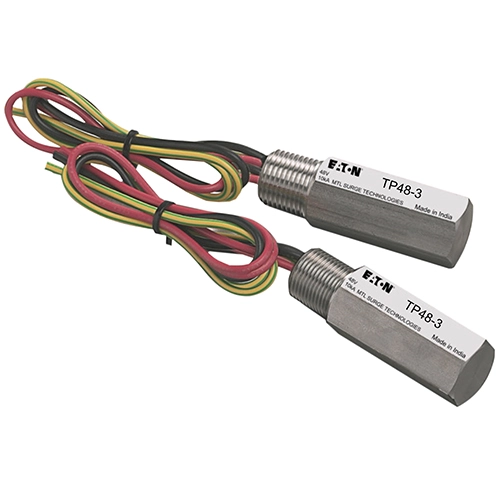

| Product Image |
|
|
UL.com Ratings | - | - |
| UL APPROVAL | - | - |
| Data SPD Type | - | - |
| Volts(V) | 48 | 48 |
| Wires | 4W+G | 4W+G |
| Line Current Max(A) | - | - |
| Ambient Min(C) | -55 | -40 |
| Ambient Max(C) | +85 | +85 |
| MCOV(V) | 54 | 58 |
| IN(kA) 8/20µs | 10 | 3 |
| IMAX (kA) 8/20µs | 15 | 20 |
| Technology | Hybrid SAD-GDT | Not Known |
| Network Configuration | 1 pair | 1 pair |
| Connection Method | Parallel #16 AWG | Parallel #18 AWG |
| NEMA Rating IP Rating | IP66 | IP66 |
| Mounting | Direct Transducer Mount | Direct Transducer Mount |
| Material | Stainless Steel | Stainless Steel |
| Weight | 12.8oz | 6.2oz |
| Environmental Rating | - | - |
| Warranty | 10-years | 10 Year Limited Warranty |
UL data is publicly available with a free account at UL.com. The data has been reviewed by our engineering department. From time to time, the applicants UL file (including CITEL's) may become changed or updated at UL.com due to new testing or corrections to a report. At the time of this comparison you will find this information to be accurate to the UL web site. If you find any information requires an update, please bring to our attention and it will be updated immediately. |
|
| |
|---|---|
