MAXIVOLT ICP-110
Comparison CITEL DS72US-120S/G
Surge Protective Device (SPD)

CITEL DS72US-120S/G Surge Protector	MAXIVOLT ICP-110 Surge Protector
Intended Application	System
System Voltage	120Vac
Number of Phases	1-Phase
Conductors	2 Wire + Ground
Configuration	Single Phase

PRODUCT COMPARISON TABLE

This page collects publicly available data from ul.com and assembles a side by side
reference table for a convenient product cross reference.

Manufacturer		MAXIVOLT
UL File #	E326289	-
Model	DS72US-120S/G	MAXIVOLT ICP-110

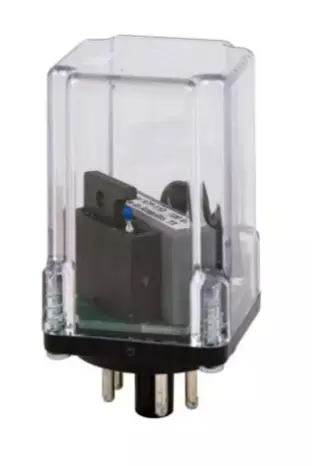

Product Image
UL.com Ratings	UL CARD	NONE
UL APPROVAL	LISTED	NONE
UL MARK		-
SPD Type	1	-
Volt (V)	120	120
AC/DC DC PV	AC	AC
Phase	1	1
Amps (A)	n/a	n/a
Ambient Min (C)	-40	-
Ambient Max (C)	85	-
Mode
	L-L L-N L-G N-G	L-L L-N L-G N-G
VPR (Vpk)
**L-L L-N L-G N-G **	- 800 1500 1200	- - - -
MCOV
**L- L L-N L-G N-G **	- 210 255 255	- - - -
In (kA)	20	-
SCCR (kA)	200	-
Additional Data Sheet Ratings
Surge Current Rating (kA)	75	-
Protection Circuit	TMOV	TMOV
Leakage Current	No	Yes
TOV Optimized	No	No
Diagnostics	Indicator & Remote Contacts	Indicator & Remote Alarm
Environmental Rating	IP20	-
# of Wires	3	3
Modes of Protection	Common Mode Differential Mode	Common Mode Differential Mode
Warranty	10-years	-

Determining the acceptability of an SPD for your UL equipment for UL 508A Control Panels and All Other UL Listed Equipment

The UL inspector will first consider the SPD type when determining it’s acceptability for a given application or piece of equipment. This will include UL 508A as well as all other UL Listed equipment. The first level compliance is based on the UL Approval (LISTED or RECOGNIZED) of the SPD or UL SPD Type and it’s Suitable Ratings. This means that it has to meet all safety, performance, environmental and electrical system ratings of the application. If any of these criteria are not fully met, it will require a Procedure Description, a File Update and/or Additional Testing. These actions will require additional costs that may be substantial. For this reason, it is in the interest of the specifier to use UL LISTED SPD’s to eliminate any uncertainty or to make sure the UL RECOGNIZED SPD is selected at the time of UL submittal of the equipment.

Approval Considerations Table based on UL SPD Type

UL Mark	UL1449 SPD Type	Suitable Ratings	Procedure Described	File Update or Additional Testing	Notes
	1 2	Yes	No	No	The only requirement is that the SPD must match electrical and environmental ratings of the UL 508A Control Panel. A UL field inspection of the control panel with the SPD installed is required as a part of a standard follow-up service visit.
	1CA 2CA 4CA 5	Yes	Yes	Yes	Yes – All UL recognized SPD’s require a UL engineering evaluation of the SPD’s existing UL1449 E–file. This will result, at a minimum, in a cost to update the UL file and may also require testing that would result in additional costs.
