EDCO PHC-036
Comparison CITEL DLA2-48D3
Surge Protective Device (SPD)
|
|
|
CITEL DLA2-48D3 | EDCO PHC-036 |
Intended Application | System |
| System Voltage | 48Vdc |
| Number of wires | 8 |
| Conductors | 4 Wire + Shield + Ground |
| Configuration | 2 Pair |
PRODUCT COMPARISON TABLE
This page collects publicly available data from ul.com and assembles a side by side
reference table for a convenient product cross reference.
| Manufacturer |
| EDCO |
| UL File # | E184939 | E175287 |
| Model | DLA2-48D3 | EDCO PHC-036 |

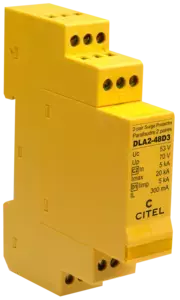

| Product Image |
|
|
UL.com Ratings | UL CARD | UL CARD |
| UL APPROVAL | LISTED | LISTED |
| UL MARK |  | |
| SPD Type | DATA | DATA |
| Nominal Voltage (V) | 48 | 30 |
| AC/DC DC PV | DC | DC |
| Twisted Pair | 4 | 4 |
| Maximum Line Voltage | 53 | 36 |
| Ambient Min (C) | -50 | - |
| Ambient Max (C) | 85 | - |
| Signal Protection | Yes | Yes |
| Shielded Protection | Yes | - |
Additional | ||
| Protection Circuit | SAD-GDT | MOV, SAD |
| Modular | Yes | Yes |
| Environmental Rating | IP20 | - |
| Modes of Protection | Common Mode Differential Mode | Common Mode Differential Mode |
| Warranty | 10-years | 5-year |
| Notes |
| * |
UL data is publicly available with a free account at UL.com. The data has been reviewed by our engineering department. From time to time, the applicants UL file (including CITEL's) may become changed or updated at UL.com due to new testing or corrections to a report. At the time of this comparison you will find this information to be accurate to the UL web site. If you find any information requires an update, please bring to our attention and it will be updated immediately. |
|
| |
|---|---|
