EATON MTL-SD32M Alternate CITEL DLC-24D3 Surge Protector SPD

Citel Logo

EATON MTL-SD32M
Comparison CITEL DLC-24D3
Surge Protective Device (SPD)

CITEL
DLC-24D3
Surge Protector
EATON
MTL-SD32M

Intended Application System

SystemDataline
Conductors2W+Shield+G
Data Speedup to 10MHz
Configuration1 Channel

PRODUCT COMPARISON TABLE

This page collects publicly available data from ul.com and assembles a side by side reference table for a convenient product cross reference.

Manufacturer Citel Logo Eaton Logo
UL File #E184939E220693
Model
DLC-24D3


EATON MTL-SD32M

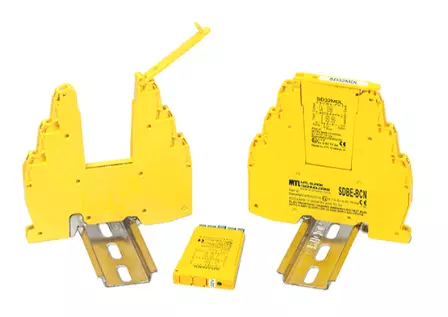

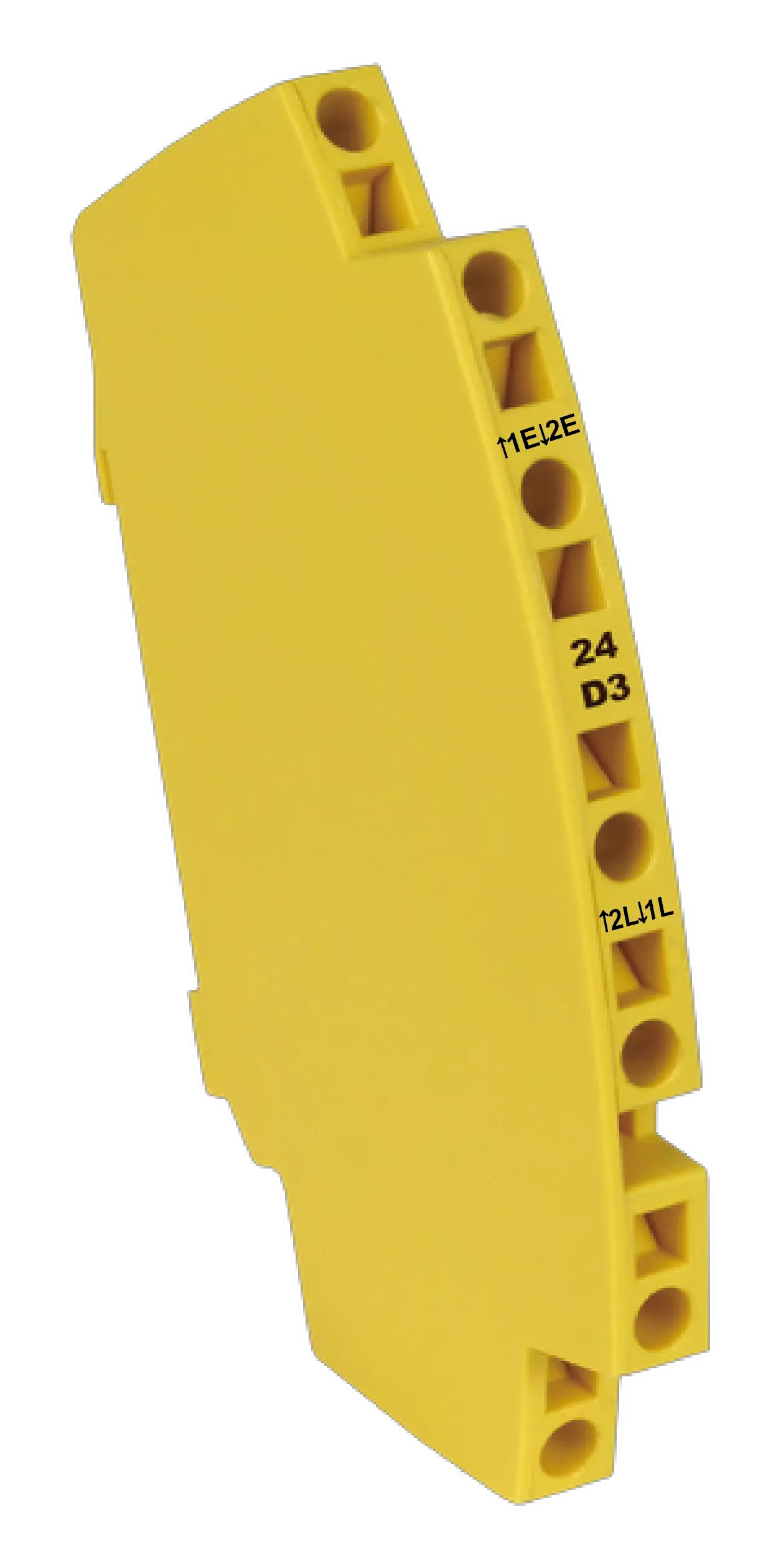

Product Image

UL.com Ratings


UL CARD


UL CARD

UL APPROVALLISTEDLISTED
UL MARK
SPD TypeUL497BUL497B
Insertion Loss< 1 dB-
Max. Load Current(IL)300mA-
Impulse current(limp)
2 x 10/350µs Test - D1 Category		2.5kA1.2kA
Data SPD TypeUL497B LISTEDUL497B LISTED
Volts(V)2432
Wires2W+Shield+G-
Line Current Max(A)0.3-
Ambient Min(C)-50-40
Ambient Max(C)+85+80
Residual Voltage(V)20-
MCOV(V)8/72/7236
IN(kA)
10 impulses 8/20µs		5kA5kA
IMAX(kA)
8/20µs		10kA20kA
Data Speed(Mbps)up to 10MHz-
Frequency(MHz)up to 10-
TechnologySAD-GDT-
Network Configuration1 pair-
Connection MethodScrew Terminal12AWG
NEMA Rating
IP Rating		NEMA 2 (IP20)-
MountingDin RailDin Rail
MaterialThermoplastic UL94-V0UL94-V2
Weight4.8oz2.5oz
Environmental
Rating		ROHS-
Warranty10-years10 Year Limited Warranty
UL data is publicly available with a free account at UL.com. The data has been reviewed by our engineering department. From time to time, the applicants UL file (including CITEL's) may become changed or updated at UL.com due to new testing or corrections to a report. At the time of this comparison you will find this information to be accurate to the UL web site. If you find any information requires an update, please bring to our attention and it will be updated immediately.
