EATON MTL-SD150X Alternate CITEL DLAH-170 Surge Protector SPD

Citel Logo

EATON MTL-SD150X
Comparison CITEL DLAH-170
Surge Protective Device (SPD)

CITEL
DLAH-170
Surge Protector
EATON
MTL-SD150X

Intended Application System

SystemDataline
Conductors2W+Shield+G
Data Speedup to 10MHz
Configuration1 Channel

PRODUCT COMPARISON TABLE

This page collects publicly available data from ul.com and assembles a side by side reference table for a convenient product cross reference.

Manufacturer Citel Logo Eaton Logo
UL File #E184939
NO UL FILE
Model
DLAH-170


EATON MTL-SD150X

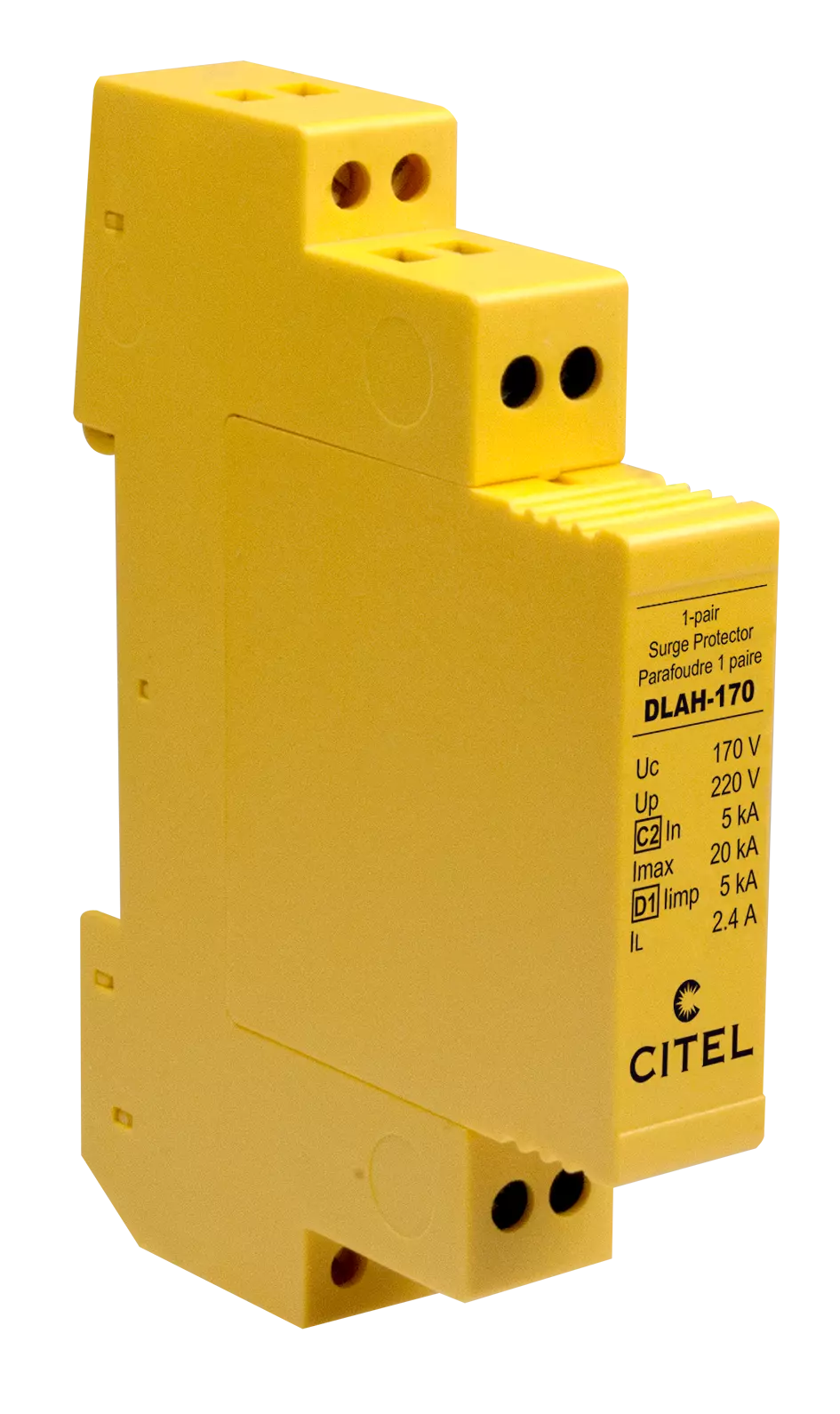

Product Image

UL.com Ratings


UL CARD

NOT UL LISTED
UL APPROVALLISTED
NOT LISTED
UL MARK
NO UL MARK
SPD TypeUL497B
-
Insertion Loss< 1 dB-
Max. Load Current(IL)2.4 A-
Impulse current(limp)
2 x 10/350µs Test - D1 Category		5kA1kA
Data SPD TypeUL497B LISTED
-
Volts(V)150-
Wires2W+Shield+G-
Line Current Max(A)2.4-
Ambient Min(C)-50-40
Ambient Max(C)+85+80
Residual Voltage(V)210-
MCOV(V)28-
IN(kA)
10 impulses 8/20µs		5kA-
IMAX (kA)
8/20µs		20kA6.5kA
Data Speed (Mbps)10/100-
Frequency (MHz)up to 10-
TechnologyHybrid SAD-GDT Technology-
Network Configuration1 pair-
Connection MethodScrew Terminal-
NEMA Rating
IP Rating		NEMA 2 (IP20)-
MountingDin RailDin Rail
MaterialThermoplastic UL94-V0
Weight4.8oz2.5oz
Environmental
Rating		ROHS-
Warranty10-years10 Year Limited Warranty
UL data is publicly available with a free account at UL.com. The data has been reviewed by our engineering department. From time to time, the applicants UL file (including CITEL's) may become changed or updated at UL.com due to new testing or corrections to a report. At the time of this comparison you will find this information to be accurate to the UL web site. If you find any information requires an update, please bring to our attention and it will be updated immediately.
