DITEK DTK-MRJPOEX
Comparison CITEL CWMJ8-POE-C6A
Surge Protective Device (SPD)
|
|
|
CITEL CWMJ8-POE-C6A | DITEK DTK-MRJPOEX |
Intended Application System | |
| System | Dataline |
| Conductors | 8W+Shield+Ground |
| Connector | Shielded RJ45 |
| Configuration | Single POE Line |
PRODUCT COMPARISON TABLE
This page collects publicly available data from ul.com and assembles a side by side reference table for a convenient product cross reference.
| Manufacturer |
|
|
| UL File # | E184939 | E141557 |
| Model | CWMJ8-POE-C6A | DITEK DTK-MRJPOEX |

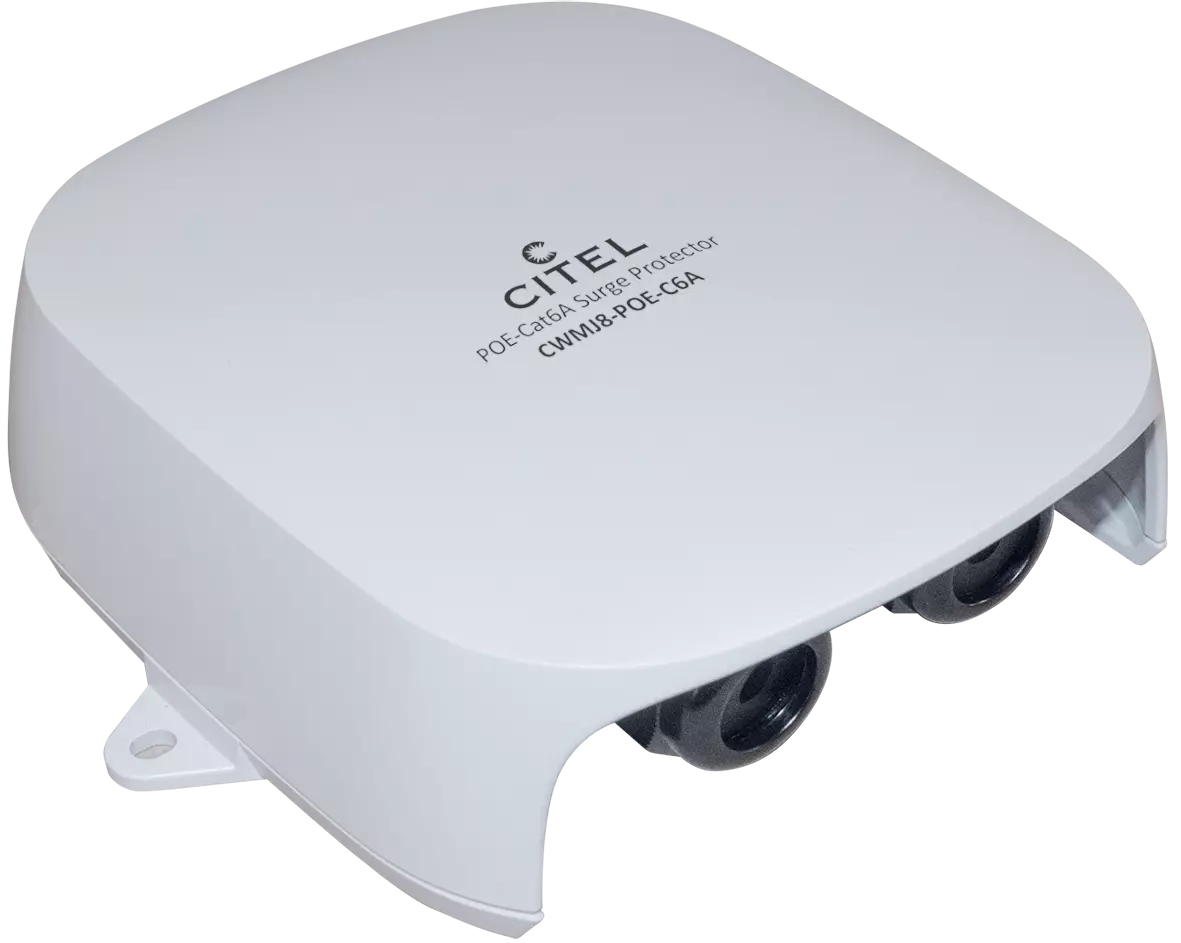

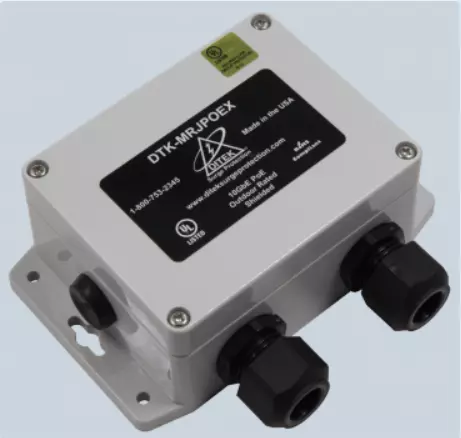

| Product Image |
|
|
UL.com Ratings | UL CARD | UL CARD |
| UL APPROVAL | LISTED | LISTED |
| UL MARK |  | |
| SPD Type | UL497B | UL497B |
| Imax | 16kA | 20kA |
| In | 16kA | 20kA |
| limp | 500 A | - |
| Ambient Min (C) | -35 | -40 |
| Ambient Max (C) | +85 | +70 |
| Max. load current | 2000 mA | - |
Additional | ||
| NEMA Rating IP Rating | NEMA 2 (IP20) | |
| Technology | SAD-GDT | - |
| Environmental Rating | ROHS | ROHS |
| Warranty | 10-years | 10 Year Limited Warranty |
|
| |
|---|---|
