DITEK DTK-MRJPOES
Comparison CITEL MJ8-POE-C6A
Surge Protective Device (SPD)

CITEL MJ8-POE-C6A Surge Protector	DITEK DTK-MRJPOES Surge Protector
Intended Application System
System	Dataline
Conductors	8W+Shield+Ground
Connector	Shielded RJ45
Configuration	Single POE Line

PRODUCT COMPARISON TABLE

This page collects publicly available data from ul.com and assembles a side by side reference table for a convenient product cross reference.

Manufacturer
UL File #	E184939	E141557
Model	MJ8-POE-C6A	DITEK DTK-MRJPOES

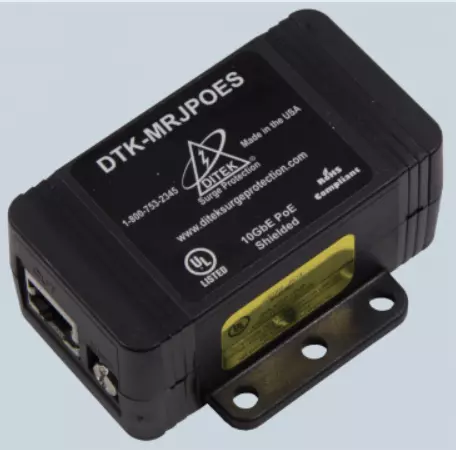

Product Image
UL.com Ratings	UL CARD	UL CARD
UL APPROVAL	LISTED	LISTED
UL MARK
SPD Type	UL497B	UL497B
Imax	16kA	20kA
In	16kA	20kA
limp	500 A	-
Ambient Min (C)	-40	-
Ambient Max (C)	+85	-
Max. load current	2000 mA	-
Additional Data Sheet Ratings
NEMA Rating IP Rating	NEMA 2 (IP20)
Technology	SAD-GDT	-
Environmental Rating	ROHS	ROHS
Warranty	10-years	10 Year Limited Warranty
